2MT-4XXX Series User Guide

2MT-4XXX Series User Guide,Digital Video Recorders DVRs are devices which record video to a hard drive. DVRs are used with closed circuit security cameras to create a surveillance system that can detect an record crimes. 2M Technology offers DVRs which are feature rich and provide services for your security needs.

Preface

This manual describes how to use your DVR locally or on the Web interface.

In this manual, the terms IP camera and IPC refer to the same thing: network camera, which requires a connection to the network. And the IP device mentioned in this manual refers to an IP camera (also known as network camera) or a Digital Video Server (DVS).

Part I Local Operations

A DVR supports two types of operations: local operations and web- based remote operations. With local operations you connect a monitor and a mouse to the DVR and use the mouse to operate. If your DVR has buttons on the front panel or is delivered with a remote control, you may also control your DVR by pressing the front panel buttons or using the remote control.

The DVR has an embedded web server and allows web-based operations. To do this, you need a PC that has a network connection to the DVR and is installed with a web browser. You just need to navigate to the DVR’s IP address and log in to the Web interface like you log in to the system locally.

This section describes local operations.

1before you begin

Please be aware that the parameters that are grayed out on the system user interface (UI) cannot be modified. The parameters and values displayed may vary with device model, and the figures in this manual are for illustration purpose only.

Login

Use the default username admin and password 123456 for your first login.

CAUTION!

The default password is intended only for the first login and should be changed to a strong one containing at least eight characters including uppercase and lowercase letters, digits and symbols after your first login to ensure security.

1.Right-click anywhere in the window and then choose Menu. The login dialog box is displayed.
2.Select the username from the drop-down list, enter your password, and then click Login.

Local Operations

You can refer toInitial Configuration and complete a quick configuration.

NOTE!

Unless otherwise specified, all operations described in this manual are performed with a mouse by the right hand. SeeMouse Operationsfor details.

Mouse Operations

Table 1-1 Mouse Operations



2MT-4XXX Series User Guide

read next : InVid Tech Devices Password Reset.

2initial configuration

Preparation

Make sure that at least one monitor is correctly connected to the VGA or HDMI interface on the rear panel of the DVR.
Verify that the hard disk(s) are correctly installed. For detailed steps to install a hard disk, please refer to the quick guide shipped with your DVR.

Login

The login page appears after the DVR starts up.

1. Enter the default admin password 123456, click Login, and click Yes

in the pop-up window.

2. Set a strong password, and then click OK.

3. Set the unlock pattern.

Picture box 4 162w229hPicture box 6 227w86hPicture box 8 227w85h

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

Picture 9 160w225h

.

& Note:

Unlock pattern can be enabled/disabled at System > User. SeeUser Configuration for details.

Wizard

The wizard can guide you to complete the most basic setup.

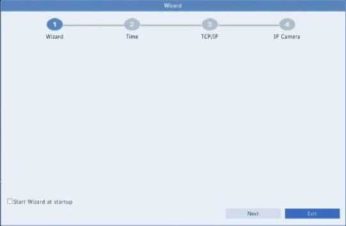

The following page appears after the DVR starts up:

Picture 10 346w226h

Name

Action

Description

Left button

Click

Select or confirm an item.
Select to edit digits, symbols, upper-case or lower-case letters in a field.

Double-click

Enter or exit full screen mode in live view.

Name  Action

Description

Drag

Draw or move a rectangle on the screen, for example, a motion detection area.

Right  Click

button

Show the shortcut menu.
Exit zoom.
Exit the current window when Cancel or

Exit is displayed.

Scroll up or

Wheel

down

Scroll up or down a list or a window; or zoom in or out on a playback progress bar.



1.Enable or disable the wizard as needed and then click Next (or click ).

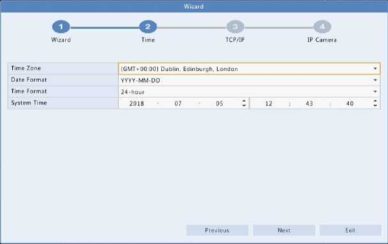

2.Select your time zone, set date and time formats, set the system time, and then click Next.

Picture 11 388w244h

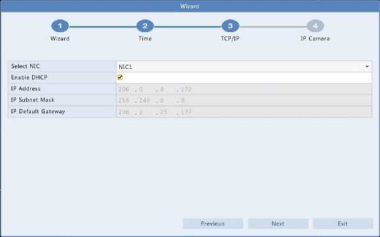

3. Complete network configuration, and then click Next.

.

.

Picture 12 380w237h

4.Select the devices to add in the list, click Add, and then click Yes to complete configuration.

s Note:

The DVR uses the default password to connect devices, therefore, if the password of a device has been changed, the device cannot get online, and you need to edit the password manually.
If a desired device is not in the list, try adding it at Camera > Camera > Camera (see Adding an IP Device for detailed steps).

3 live view

Live View Status

The following icons are used to indicate alarms, recording status, and audio status in a live view window.

Table 3-1 Live View Window Icons

Icon

Description

Tampering alarm

Fl

Motion detection alarm

.

Recording

.

Turn on audio

Normally, live video is displayed, but other situations are also possible.
