How To Thermal Camera NVR Setup

0 32



This guide will cover the initial NVR, camera,and Blackbody setup and Configuration for the Thermal Temperature Monitoring Solution

If you’re using a stand alone Thermal Camera (not plugged directly into NVR), follow the steps to set up Thermal Monitoring solution with stand alone Thermal camera

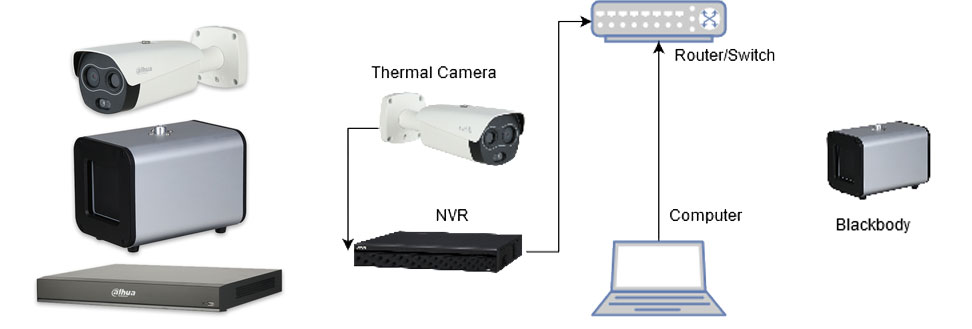

Temperature Monitoring NVR With Camera Diagram.png



Description

caption

This guide will cover the initial NVR, thermal camera, and Blackbody setup Configuration for the Thermal Temperature Monitoring Solution

Prerequisites

  • DH-TPC-BF3221-T or DH-TPC-BF5421-T Thermal Hybrid Camera
  • Thermal camera updated to latest firmware –  Update TPC-BF5421-T Firmware
  • JQ-D70Z Blackbody
  • Temperature Monitoring Physical Setup
  • Initial NVR Setup guide followed

Video Instructions

NVR Initial Setup and Firmware Upgrade:

Total Setup of Thermal Solution through NVR with Camera, including Record Setup and configuration at webUI:

Step by Step Instructions

NVR Initialization

Initialize the NVR over the using a local computer

Record Schedule Setup

Setup Video and Snapshot Recording for the Thermal Camera

From the Main Menu click Management > Camera

Temperature Monitoring - NVR Setup - 10-1.jpg

Under Registration

The thermal camera will appear in the Channel list as two channels, one for the visual channel and one for the thermal channel, in this example are Channels 1 and 2

Temperature Monitoring - NVR Setup - 10-2.jpg

Click Management > Storage

Temperature Monitoring - NVR Setup - 11.jpg

Click Schedule

Temperature Monitoring - NVR Setup - 12.jpg

Click Setting to adjust the Record schedule (when the camera will record) for the thermal camera channel

Temperature Monitoring - NVR Setup - 13.jpg

Use the interface to select the days and enter a Time Period. Select the Record type you wish to record for the camera:  and IVS must be enable for the Temperature to record.

Click OK

Temperature Monitoring - NVR Setup - 14.jpg

The schedule will be updated

Temperature Monitoring - NVR Setup - 15.jpg

Click Copy

Temperature Monitoring - NVR Setup - 16.jpg

Select the other channel of the Thermal Camera (in this example Channel 2)

Temperature Monitoring - NVR Setup - 17.jpg

Click OK

Temperature Monitoring - NVR Setup - 18.jpg

Click the Snapshot tab

Temperature Monitoring - NVR Setup - 19.jpg

Configure the Snapshot schedule record settings the same way s the previous steps

Click OK to save

Temperature Monitoring - NVR Setup - 20.jpg

Click Storage > Record

Temperature Monitoring - NVR Setup - 21.jpg

Thermal Configuration

Configure the settings of the Temperature Monitoring Solution

1. From the Main Menu of the select AI

Temperature Monitoring - NVR Setup - Thermal Setup 1.jpg

2. Click Parameters > Smart Plan

Use the dropdown to select the Thermal Channel

Temperature Monitoring - NVR Setup - Thermal Setup 2.jpg

3. Click to enable the Thermal Temperature Monitoring Smart Plan

Temperature Monitoring - NVR Setup - Thermal Setup 3.jpg

Click OK

Temperature Monitoring - NVR Setup - Thermal Setup 4.jpg

Return to the Main Menu by closing the AI tab (clicking X)

Temperature Monitoring - NVR Setup - Thermal Setup 4-1.jpg

4. Click

Temperature Monitoring - NVR Setup - Thermal Setup 5.jpg

5. Click Thermal Alarm

Use the dropdown to select the Thermal Channel

Temperature Monitoring - NVR Setup - Thermal Setup 6.jpg

Select Thermal Temperature Monitoring

Temperature Monitoring - NVR Setup - Thermal Setup 7.jpg

6. Check the box to enable feature

Check the box to enable desired camera hardware response on alarm:

  • Camera Audio – audio from camera speaker
  • White Light – light from camera

Temperature Monitoring - NVR Setup - Thermal Setup 8.jpg

To record Alarms, check the box next to Record Channel and select which channel(s) to record

Temperature Monitoring - NVR Setup - Thermal Setup 9.jpg

Click More Setting

Temperature Monitoring - NVR Setup - Thermal Setup 10.jpg

Check to enable Alarm Upload

Click OK

Temperature Monitoring - NVR Setup - Thermal Setup 11.jpg

Set temperature values for the alarm to trigger

5. Click Setting next to Anatomy Temperature Alarm Rule

Temperature Monitoring - NVR Setup - Thermal Setup 12.jpg

Check the box to enable Temperature report – this will report/display all temperature values

Check the box to enable High Temperature Alarm – an alarm will be sent when the temperature is higher than or equal to this value

Click OK

Temperature Monitoring - NVR Setup - Thermal Setup 13.jpg

Draw Rule for Detection Region

By default the entire camera frame will be set as the detection region

1. Click Clear to default the Rule

Click Draw Rule

Temperature Monitoring - NVR Setup - Thermal Setup 14.jpg

2. Left click inside the frame to begin drawing the detection zone.

Temperature Monitoring - NVR Setup - Thermal Setup 15.jpg

Click and drag to draw lines to complete a square/box

Temperature Monitoring - NVR Setup - Thermal Setup 16.jpg

Complete:

Temperature Monitoring - NVR Setup - Thermal Setup 17.jpg

This detection zone will be the blue box displayed in Live View interface:

Temperature Monitoring - NVR Setup - Thermal Setup 18.jpg

Blackbody Setup

1. From Main Menu click Alarm > Thermal Alarm

  • Use the dropdown box to select the Thermal channel
  • Use the dropdown to select Blackbody Error

Temperature Monitoring - NVR Setup - Thermal Setup 19.jpg

2. Check the box to Enable

Temperature Monitoring - NVR Setup - Thermal Setup 20.jpg

The default Blackbody rule will be displayed on screen as a blue box

Temperature Monitoring - NVR Setup - Thermal Setup 21.jpg

Click to drag the box to position

Temperature Monitoring - NVR Setup - Thermal Setup 22.jpg

Click the corners to adjust the size of the box

Temperature Monitoring - NVR Setup - Thermal Setup 23.jpg

Click Setting next to Blackbody Parameter to adjust the settings of the Blackbody

Temperature Monitoring - NVR Setup - Thermal Setup 24.jpg

Check the box to Enable

Enter desired Blackbody parameters (leave at default for most scenarios)

Blackbody temperature should be set to 95 F / 35 C

Temperature Monitoring - NVR Setup - Thermal Setup 25.jpg

Click OK to save

Temperature Monitoring - NVR Setup - Thermal Setup 26.jpg

Additional Alarm Parameters

Select which Channel(s) will be recorded as a video

Check to enable Picture Storage for snapshot/images taken during event

Temperature Monitoring - NVR Setup - Thermal Setup 27.jpg

2. Click More Setting

Temperature Monitoring - NVR Setup - Thermal Setup 27-1.jpg

Check the box next to Alarm Upload

Select any other desired Alarm parameters:

  • Show Message
  • Buzzer
  • Send Email –  Setup Email Notifications On Dahua
  • Log

Click OK

Temperature Monitoring - NVR Setup - Thermal Setup 27-2.jpg

Click OK to save all settings

Temperature Monitoring - NVR Setup - Thermal Setup 28.jpg

Event Verification

Live View will display the detection zone and Blackbody reference

Temperature Monitoring - NVR Setup - Thermal Setup 29.jpg

Once configuration is complete, go to Live interface to verify temperature measurement

Temperature Monitoring - NVR Setup - Thermal Setup 30.jpg

Live View (at local interface/monitor) will show the detection zone and blackbody reference

Live View (Right click > AI Mode enabled)

  • Temperature detection value will appear
  • Statistics will be displayed in top right of screen
  • Live events will populate the right side of the screen

Temperature Monitoring - NVR Setup - Thermal Setup 31.jpg

  • Check measurement value on screen
  • Compare it with the value on another device for temperature, such as thermometer:

Temp check with thermometer.JPG

Thermal Camera Configuration: (click to expand each section)

 Check latest firmware and upgrade

 Open smart thermal of human body temperature measurement

Set rules of human temperature measurement

Set blackbody parameters

Configure Advanced/Other Settings

Check environment temperature

Event Verification
