How to update ClareVision camera firmware through the NVR Virtual Host

In this article, we will outline the steps on how to update ClareVision camera firmware using the NVR Virtual Host.

IMPORTANT NOTE: You must download the firmware you need for each camera from the ClareVision Firmware Database here: https://www.clarecontrols.com/clarevision-firmware

Once your desired firmware is downloaded, access the NVR web console. You can access the NVR web console by navigating to the NVR IP address in your web browser. To find the IP address of the device, you can download the install the IP Search Tool which will scan the home network for compatible ClareVision devices.

How to access cameras using the Virtual Host from an NVR

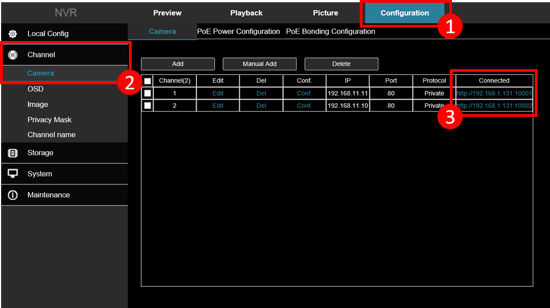

  1. Navigate to the NVR web console.
  2. Select the Configure tab.
  3. Open the Channels sub menu and select Cameras.
  4. Tap the desired camera IP address to open a new web console tab for the camera.
    CH_CV_Firmware_Upgrade_Host_1

How to update camera firmware

  1. Once prompted, log into the camera web console using the NVR login credentials.
    CH_CV_Firmware_Upgrade_Host_4

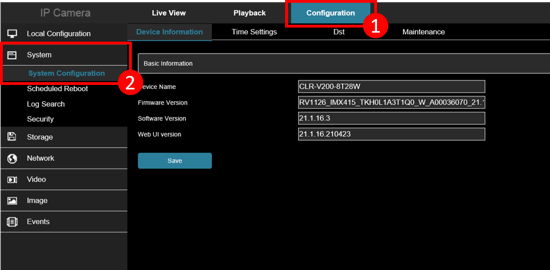

  2. Select the Configuration tab.
  3. Open the System sub menu and select System Configuration.
    CH_CV_Firmware_Upgrade_Host_2

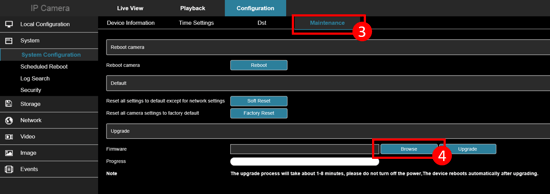

  4. Switch to the Maintenance tab.
    CH_CV_Firmware_Upgrade_Host_3
  5. Under the Upgrade > Firmware section, tap Browse to open the system window.
  6. Navigate to the desired firmware save location, select it and tap Open.
    The file path will be displayed in the web console.
  7. Tap Upgrade to begin the update process. Tap Ok if prompted by a popup window.
    The firmware upgrade process could take up to 8 minutes to complete.
    CH_CV_Firmware_Upgrade_Host_6

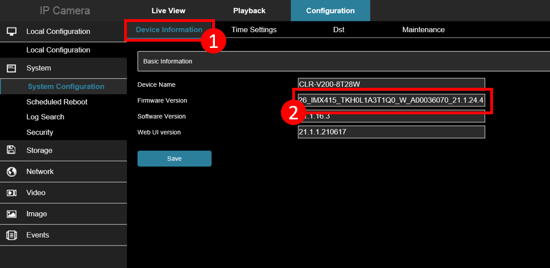

  8. Once completed, you will be prompted to log back into the web console. Input the default credentials and navigate back to the System Configuration sub menu to verify that the firmware version is now updated.
    CH_CV_Firmware_Upgrade_Host_5

ClareVision Firmwares

Read Next : IP CAMERA FIRMWARE DOWNLOAD V5.00.R02.V4.02.R12.

How to Quickly Update Firmware on ClareVision Cameras

If you are on a job with several cameras, use this method to quickly update the firmware BEFORE you attach them to the NVR

Overview

The Fall firmware is a significant upgrade to the camera firmware for both the Value Series and the Performance series cameras.  The following is a guide to cut down the time needed to update camera firmware on a job site.

Six Quick Steps

Step One:

Download the ClareVision app

Step Two:

Connect the cameras to a PoE switch on the LAN and let them boot up.

Step Three:

Launch your ClareVision App and tap the “+” Icon at the bottom on the screen

Screenshot 2021-10-08 at 1.35.45 PM

Step Four:  Add the Camera to Your ClareVision App

Screenshot 2021-10-08 at 1.39.09 PM

Step Five – Tap on the Newly Added Camera and It Will Show You There is an Update AvailableScreenshot 2021-10-08 at 1.41.51 PM

Tap update, and 3 minutes later, the camera will be back online and up to date on the latest firmware.

Step Six – Connect the Camera (if needed) to the PoE Port of the NVR

If you want the camera connected to the PoE port of the NVR, the simply connect the camera to the PoE port of the NVR and it will auto-discover (set to static IP, assign the IP address, set the UserID and password).

You can of course just leave the camera on the general LAN.  If that is your intention, you are done.

Note:

You can update the NVR firmware the using the same method OR go to the web console under the Configuration Tab click on Maintence/Online Uprade

image png Oct 08 2021 05 58 44 46 PM

Click on “Check” and the NVR will check the OTA server for an update.  If there is an update, it will prompt you to download and update.

ClareVision Camera and NVR Firmware

View and download the latest firmware for ClareVision cameras and NVRs by accessing the firmware database HERE.

11/22/2021 – NOTE:  in an effort to increase quality and simplify firmware management we have normalized the firmware for similar camera models.  The result of this simplification is the generalization of model numbers in the Web UI and the mobile application.  The table below details the changes.  This change will go into effect with the camera firmware releases the week of 11/22/2021. This does not impact the NVR firmware.

Series Model Number Will Show as in Web UI and Mobile Application
Value CLR-V100-2T36W CLR-V100-2X36X
Value CLR-V100-2T36B CLR-V100-2X36X
Value CLR-V100-2B36W CLR-V100-2X36X
Value CLR-V100-2B36B CLR-V100-2X36X
Value CLR-V100-4T36W CLR-V100-4X36X
Value CLR-V100-4T36B CLR-V100-4X36X
Value CLR-V100-4B36W CLR-V100-4X36X
Value CLR-V100-4B36B CLR-V100-4X36X
Performance CLR-V200-4T28W CLR-V200-4X28X
Performance CLR-V200-4T28B CLR-V200-4X28X
Performance CLR-V200-4B28W CLR-V200-4X28X
Performance CLR-V200-4B28B CLR-V200-4X28X
Performance CLR-V200-4D28W CLR-V200-4X28X
Performance CLR-V200-4D28B CLR-V200-4X28X
Performance CLR-V200-4TVFW CLR-V200-4XVFX
Performance CLR-V200-4TVFB CLR-V200-4XVFX
Performance CLR-V200-4BVFW CLR-V200-4XVFX
Performance CLR-V200-4BVFB CLR-V200-4XVFX
Performance CLR-V200-4DVFW CLR-V200-4XVFX
Performance CLR-V200-4DVFB CLR-V200-4XVFX
Performance CLR-V200-8T28W CLR-V200-8X28X
Performance CLR-V200-8T28B CLR-V200-8X28X
Performance CLR-V200-8B28W CLR-V200-8X28X
Performance CLR-V200-8B28B CLR-V200-8X28X
Performance CLR-V200-8D28W CLR-V200-8X28X
Performance CLR-V200-8D28B CLR-V200-8X28X
