Dahua Two Way Talk Setup

Description

This section will show how to / use Two Way Talk function with Dahua devices.

Testing

 N42B2P-992108_DH_NVR4XXX-4KS2_MultiLang_V4.000.0000001.4.R.191129
 192.168.2.216 or 3H066BDPAZA7D00
 2-Way talk working in SmartPSS
 Not working in Plus on Android
 Not working in iDMSS Plus on
 Audio input and output can only be used for 2-Way Talk on N42B2P, No Audio Recording

Computer Audio Setup Prerequisite (, SmartPSS and DSS Express)

 https://dahuawiki.com/images/thumb/6/6e/Two_Way_Talk_-_Computer_Audio_-_1.jpg/90px-Two_Way_Talk_-_Computer_Audio_-_1.jpg

Typical Computer Audio Interface (inputs/Outputs)



 https://dahuawiki.com/images/thumb/4/4a/Two_Way_Talk_-_Computer_Audio_-_2.jpg/120px-Two_Way_Talk_-_Computer_Audio_-_2.jpg

Microphone plugged into Microphone input (red) Speaker plugged into Output (green)



 https://dahuawiki.com/images/thumb/a/a8/Two_Way_Talk_-_Computer_Audio_-_3.jpg/120px-Two_Way_Talk_-_Computer_Audio_-_3.jpg

Both Microphone and speaker plugged into computer



Dahua Two Way Talk Setup

Read More : How to Add a Hikvision Camera to a Dahua NVR

Instructions

Icon for type SystemUI Old.png

SystemUI Old

Prerequisites

 Dahua device that supports 2 Way Talk
 Microphone connected to Audio Input
 Speaker connected to Audio Output

Video Instructions

Instructions

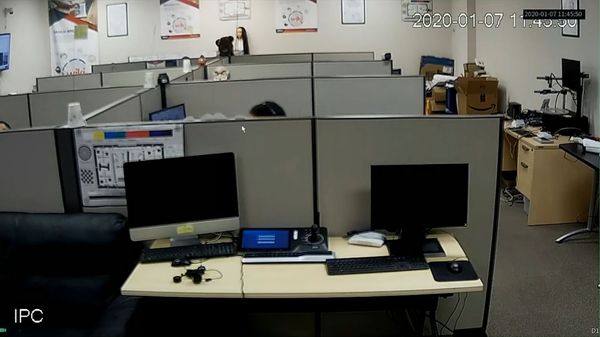

1. From Live View

Two Way Talk - SystemUI Old - 1.jpg

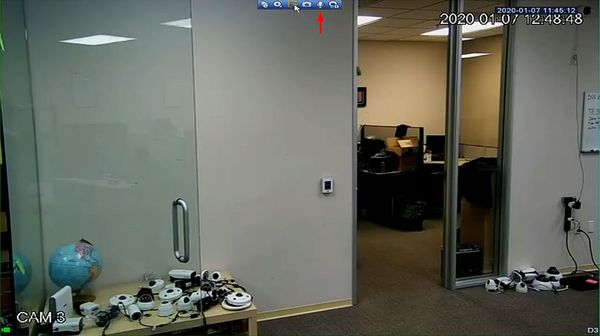

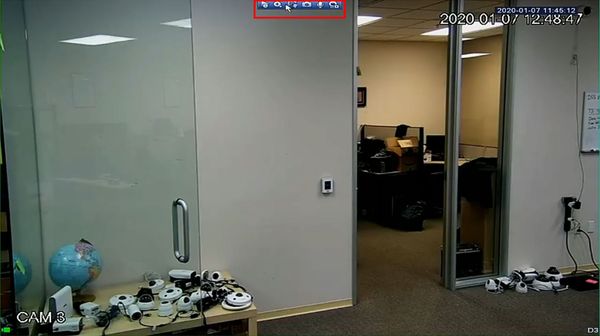

2. Hover the mouse cursor near the top of the screen until the bar appears

Two Way Talk - SystemUI Old - 2.jpg

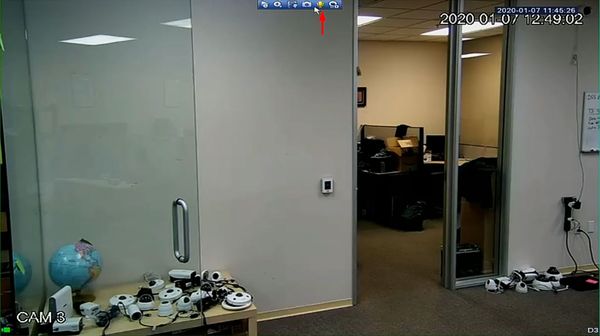

3. Click the Microphone icon to begin Two Way Talk

Two Way Talk - SystemUI Old - 3.jpg

4. The icon will highlight when Two Way Talk is active

Two Way Talk - SystemUI Old - 4.jpg

5. Click the icon again to end Two Way Talk

Two Way Talk - SystemUI Old - 5.jpg

Icon for type SystemUI New.png

SystemUI New

Prerequisites

 Dahua device that supports 2 Way Talk
 Microphone connected to Audio Input
 Speaker connected to Audio Output

Video Instructions

Step by Step Instructions

1. From Live View

Two Way Talk - SystemUI New - 1.jpg

2. Hover the mouse cursor near the top of the screen until the bar appears

Two Way Talk - SystemUI New - 2.jpg

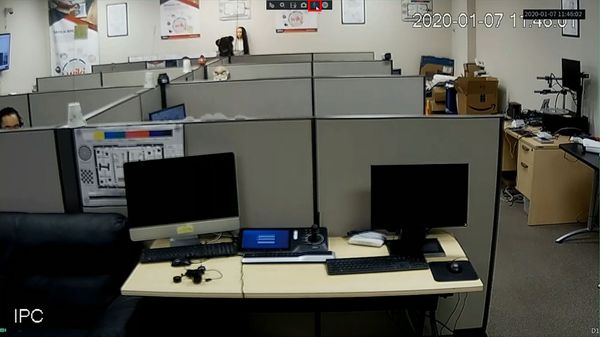

3. Click the Microphone icon to begin Two Way Talk

Two Way Talk - SystemUI New - 3.jpg

4. The icon will highlight when Two Way Talk is active

Two Way Talk - SystemUI New - 4.jpg

5. Click the icon again to end Two Way Talk

Two Way Talk - SystemUI New - 5.jpg

Icon for type WebUI Old.png

WebUI Old

Prerequisites

 Dahua device that supports 2 Way Talk
 Speaker connected to Audio Output
 PC Audio connected – Headphones and Microphone
 https://dahuawiki.com/images/thumb/6/6e/Two_Way_Talk_-_Computer_Audio_-_1.jpg/90px-Two_Way_Talk_-_Computer_Audio_-_1.jpg

Standard Audio ports on PC



 https://dahuawiki.com/images/thumb/4/4a/Two_Way_Talk_-_Computer_Audio_-_2.jpg/120px-Two_Way_Talk_-_Computer_Audio_-_2.jpg

Red (Microphone) Green (Speakers/Headset)



 https://dahuawiki.com/images/thumb/a/a8/Two_Way_Talk_-_Computer_Audio_-_3.jpg/120px-Two_Way_Talk_-_Computer_Audio_-_3.jpg

Microphone and headset plugged in to PC

.

Video Instructions

Step by Step Instructions

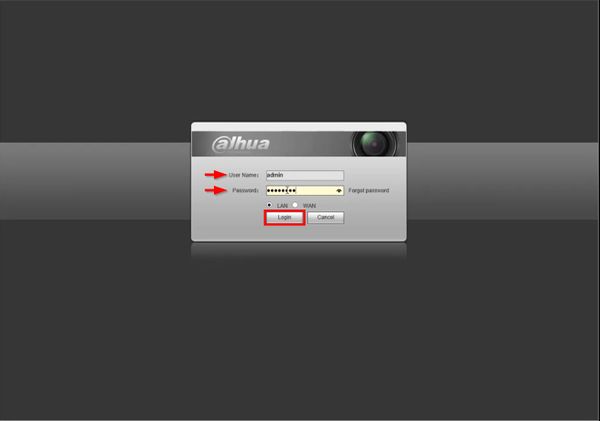

1. Enter the IP of the device into a browser

At the Web Login

Enter the Username and Password

Click Login

Two Way Talk - WebUI Old - 1.jpg

2. Click to load the camera/channel from the Channel list on the left side of the screen

Two Way Talk - WebUI Old - 2.jpg

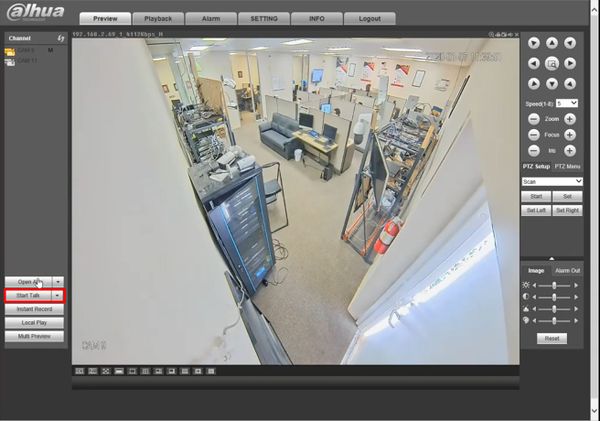

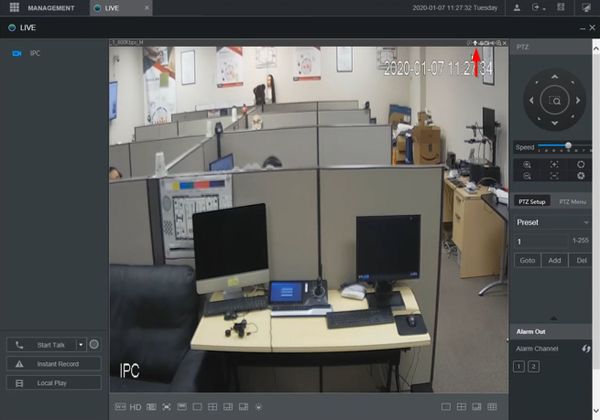

3. Click Start Talk to begin Two Way Talk

Two Way Talk - WebUI Old - 3.jpg

4. The button will remain highlighted while active

Two Way Talk - WebUI Old - 4.jpg

5. Click End Talk to stop Two Way Talk

Two Way Talk - WebUI Old - 5.jpg

Icon for type WebUI New.png

WebUI New

Prerequisites

 Dahua device that supports 2 Way Talk
 Speaker connected to Audio Output
 PC Audio connected – Headphones and Microphone
 https://dahuawiki.com/images/thumb/6/6e/Two_Way_Talk_-_Computer_Audio_-_1.jpg/90px-Two_Way_Talk_-_Computer_Audio_-_1.jpg

Standard Audio ports on PC



 https://dahuawiki.com/images/thumb/4/4a/Two_Way_Talk_-_Computer_Audio_-_2.jpg/120px-Two_Way_Talk_-_Computer_Audio_-_2.jpg

Red (Microphone) Green (Speakers/Headset)



 https://dahuawiki.com/images/thumb/a/a8/Two_Way_Talk_-_Computer_Audio_-_3.jpg/120px-Two_Way_Talk_-_Computer_Audio_-_3.jpg

Microphone and headset plugged in to PC

Video Instructions

Step by Step Instructions

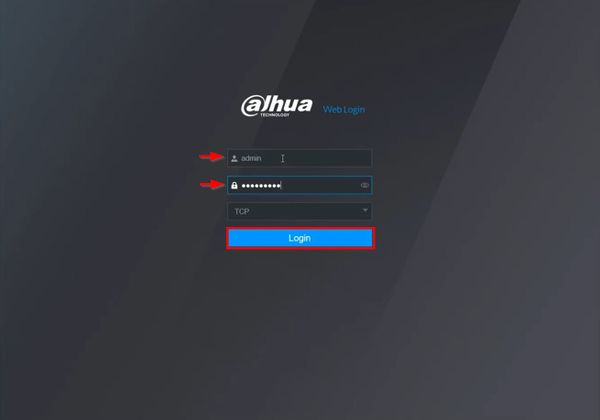

1. Enter the IP of the device into a browser

At the Web Login

Enter the Username and Password

Click Login

Two Way Talk - WebUI New - 1.jpg

2. Click to load the camera/channel from the Channel list on the left side of the screen

Two Way Talk - WebUI New - 2.jpg

3. On the bar above the channel/camera, click the Audio Talk icon (microphone) to begin Two Way Talk

Two Way Talk - WebUI New - 4.jpg

4. The icon will remain highlighted while Two Way Talk is active

Two Way Talk - WebUI New - 5.jpg

5. Click the icon again to end Two Way Talk

Two Way Talk - WebUI New - 6.jpg

Icon for type SmartPSS.png

SmartPSS

Prerequisites

 Dahua device that supports 2 Way Talk
 SmartPSS
 Device added to SmartPSS
 Speaker connected to Audio Output
 PC Audio connected – Headphones and Microphone
 https://dahuawiki.com/images/thumb/6/6e/Two_Way_Talk_-_Computer_Audio_-_1.jpg/90px-Two_Way_Talk_-_Computer_Audio_-_1.jpg

Standard Audio ports on PC



 https://dahuawiki.com/images/thumb/4/4a/Two_Way_Talk_-_Computer_Audio_-_2.jpg/120px-Two_Way_Talk_-_Computer_Audio_-_2.jpg

Red (Microphone) Green (Speakers/Headset)



 https://dahuawiki.com/images/thumb/a/a8/Two_Way_Talk_-_Computer_Audio_-_3.jpg/120px-Two_Way_Talk_-_Computer_Audio_-_3.jpg

Microphone and headset plugged in to PC

Video Instructions

Step by Step Instructions

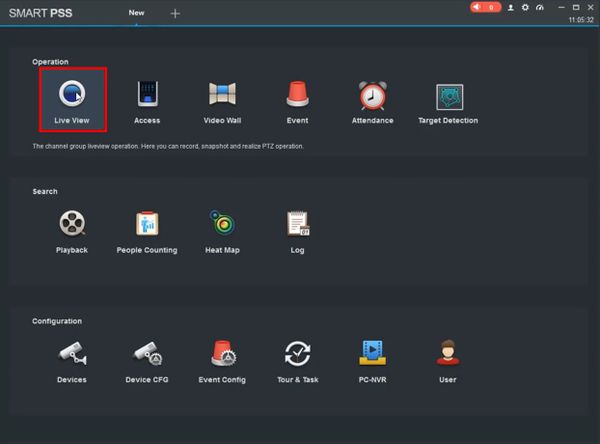

1. From the Main Menu of SmartPSS

Click Live View

Two Way Talk - SmartPSS - 1.jpg

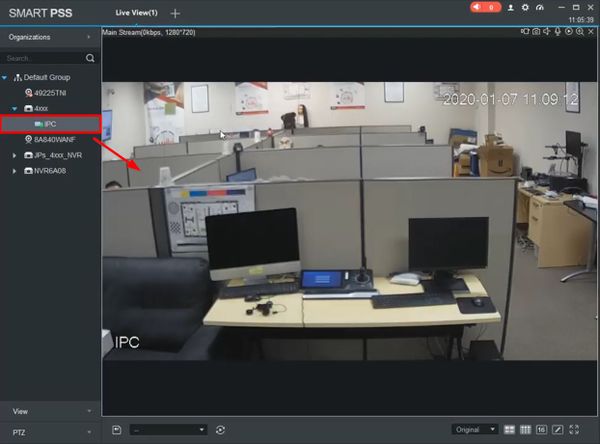

2. Use the device tree on the left to load the channel/camera by dragging and dropping or double clicking

Two Way Talk - SmartPSS - 2.jpg

3. On the bar above the channel/camera, click the Audio Talk icon (microphone) to begin Two Way Talk

Two Way Talk - SmartPSS - 3.jpg

4. The icon will remain highlighted while Two Way Talk is active

Two Way Talk - SmartPSS - 4.jpg

5. Click the icon again to end Two Way Talk

Two Way Talk - SmartPSS - 5.jpg

Icon for type DSS Express S.png

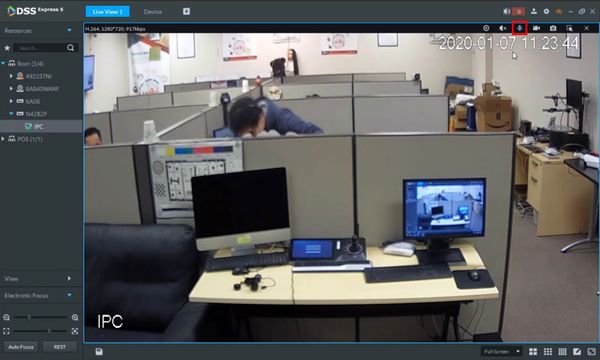

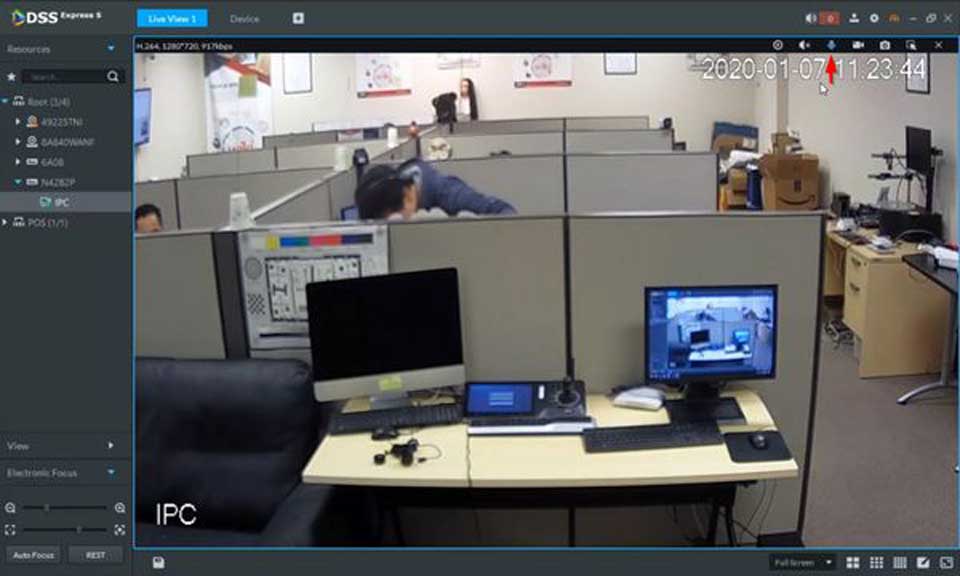

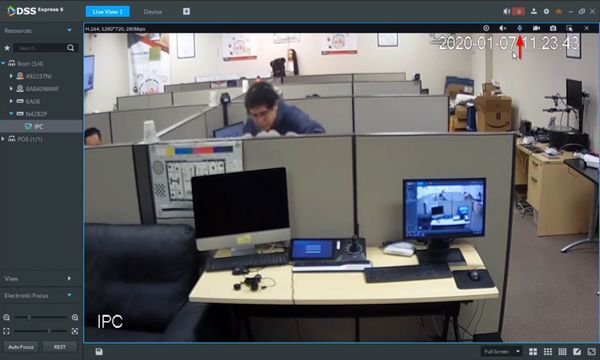

DSS Express

Prerequisites

 Dahua device that supports 2 Way Talk
 DSS Express
 Device added to DSS Express
 Speaker connected to Audio Output
 PC Audio connected – Headphones and Microphone
 https://dahuawiki.com/images/thumb/6/6e/Two_Way_Talk_-_Computer_Audio_-_1.jpg/90px-Two_Way_Talk_-_Computer_Audio_-_1.jpg

Standard Audio ports on PC



 https://dahuawiki.com/images/thumb/4/4a/Two_Way_Talk_-_Computer_Audio_-_2.jpg/120px-Two_Way_Talk_-_Computer_Audio_-_2.jpg

Red (Microphone) Green (Speakers/Headset)



 https://dahuawiki.com/images/thumb/a/a8/Two_Way_Talk_-_Computer_Audio_-_3.jpg/120px-Two_Way_Talk_-_Computer_Audio_-_3.jpg

Microphone and headset plugged in to PC

Video Instructions

Step by Step Instructions

1.

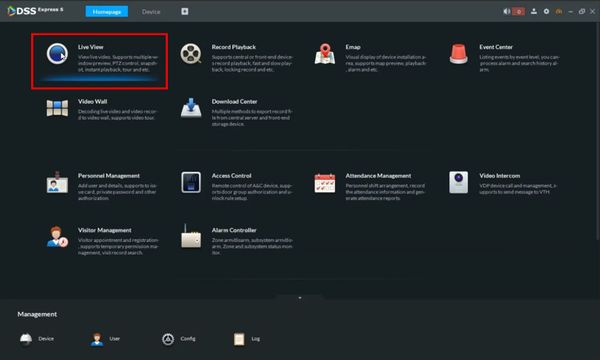

Two Way Talk - DSS Express S - 1.jpg

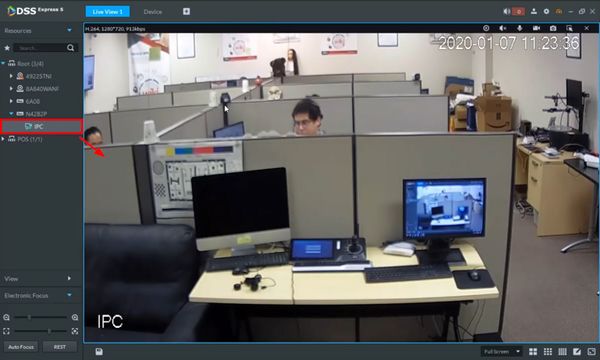

Two Way Talk - DSS Express S - 2.jpg

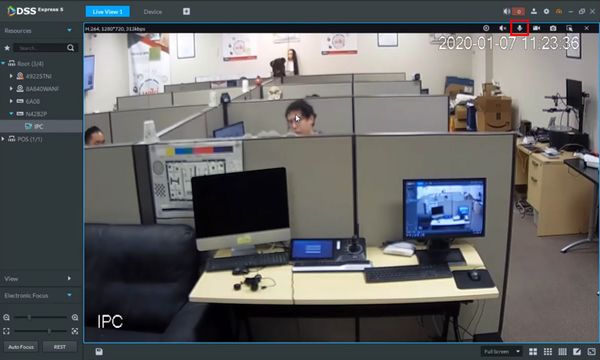

Two Way Talk - DSS Express S - 3.jpg

Two Way Talk - DSS Express S - 4.jpg

Two Way Talk - DSS Express S - 5.jpg

Two Way Talk - DSS Express S - 6.jpg

[Collapse]

:iDMSS Plus & gDMSS Plus

Step by Step Instructions

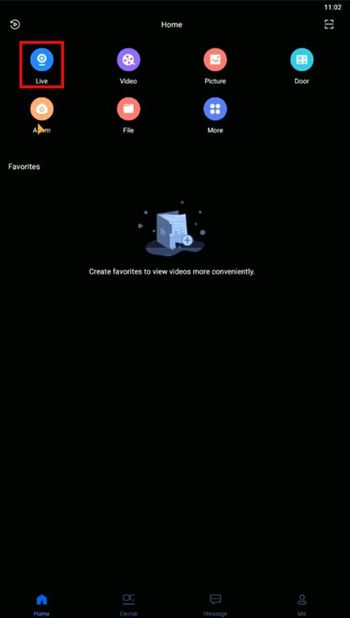

1. Two Way talk is done through the Live View of the device

From the main screen of the app

Select Live

Two Way Talk Setup - DMSS - 1.jpg

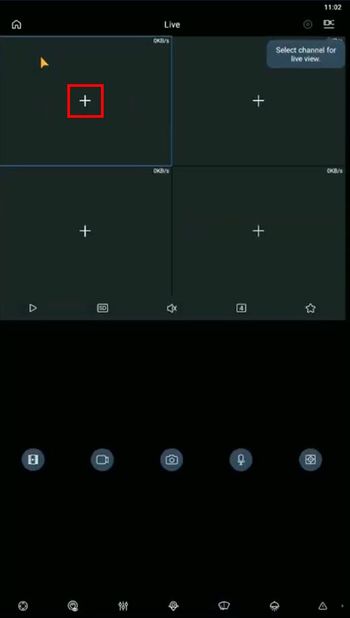

2. Tap the + icon

Two Way Talk Setup - DMSS - 2.jpg

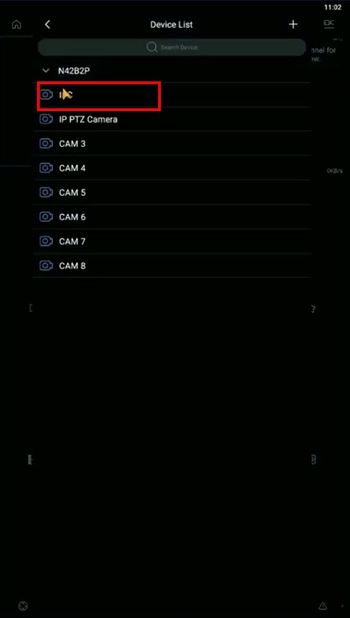

3. Select the Device / Channel from the list

Two Way Talk Setup - DMSS - 3.jpg

4. The device will connect and display Live View

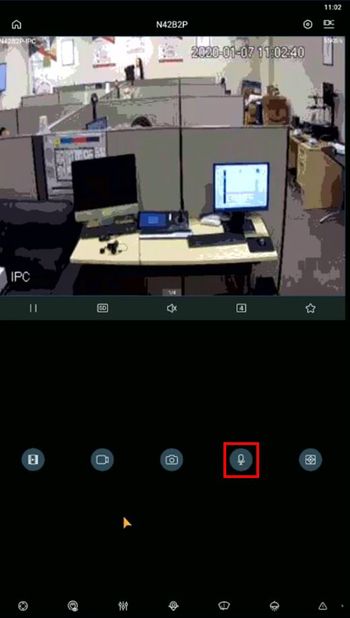

Long press the microphone icon (for approximately 3 seconds)

Two Way Talk Setup - DMSS - 4.jpg

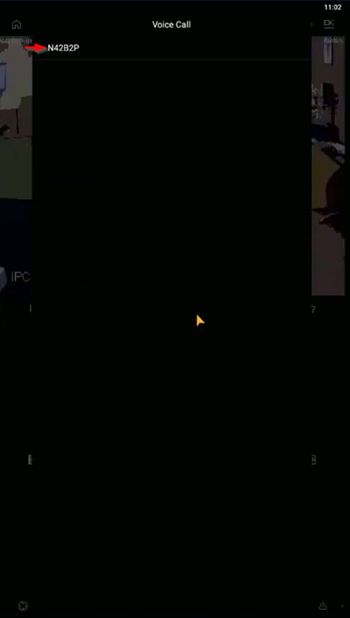

The Voice Call window will appear

Tap to select which device in the list you wish to begin Two Way Talk with

Two Way Talk Setup - DMSS - 5.jpg

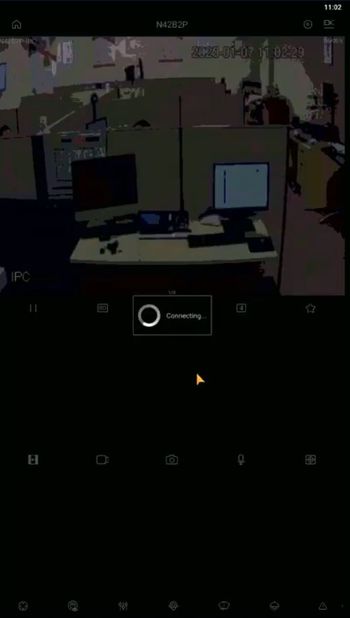

The device will start to connect

Two Way Talk Setup - DMSS - 6.jpg

5. Two Way talk has now started.

The microphone icon will remain highlighted while Two Way Talk is in use

Two Way Talk Setup - DMSS - 7.jpg

6. Tap the icon again to end Two Way Talk

Two Way Talk Setup - DMSS - 8.jpg

.
