DVR/Change to HDCVI Analog and IP

Follow these step-by-step instructions to change a HDCVI, analog, or IP channel on an HDCVI recorder (HCVR or XVR).

Prerequisites

  • HCVR or XVR
  • HDCVI, analog, or IP cameras (optional)

Video Instructions

Step-by-Step Instructions for HCVR

1. From the main menu, select Camera.


2. Select Channel Type.

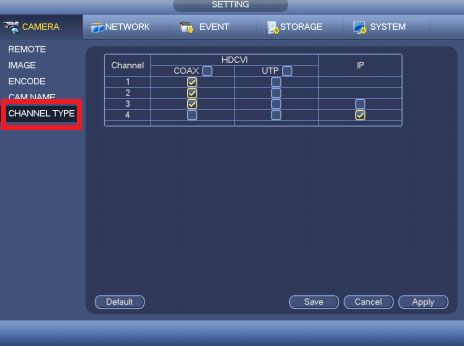

3. Check off which channels are to be Coaxial, UTP and IP. Note: you can make one any of the channels IP ➞ Select Apply and Save.


Device will reboot once changes are saved.


Step-by-Step Instructions for XVR

1. From the main menu, select Camera.

Change to HDCVI Analog and IP1.png

2. Select Channel Type.

Change to HDCVI Analog and IP2.png

3. If you are trying to activate this XVR’s additional IP channels then select “Add IP CAM”; this will require a reboot.

Change to HDCVI Analog and IP3.png

4. If you need to designate a coaxial channel for IP in addition to bonus channels then you can occupy those channels with IP in a reverse sequential order. If you need to force a coaxial channel for HDCVI, AHD, CVBS, or other, this would be the place, although this process should be automatic.

Change to HDCVI Analog and IP4.png

Instructions

Icon for type SystemUI Old.png

SystemUI Old

How to Change Between HDCVI, Analog, and IP

Description

Follow these step-by-step instructions to change a HDCVI, analog, or IP channel on an HDCVI recorder (HCVR or XVR).

Prerequisites

  • HCVR or XVR
  • HDCVI, analog, or IP cameras (optional)

Video Instructions

Step-by-Step Instructions for HCVR

1. From the main menu, select Camera.


2. Select Channel Type.


3. Check off which channels are to be Coaxial, UTP and IP. Note: you can make one any of the channels IP ➞ Select Apply and Save.


Device will reboot once changes are saved.


Step-by-Step Instructions for XVR

1. From the main menu, select Camera.

Change to HDCVI Analog and IP1.png

2. Select Channel Type.

Change to HDCVI Analog and IP2.png

3. If you are trying to activate this XVR’s additional IP channels then select “Add IP CAM”; this will require a reboot.

Change to HDCVI Analog and IP3.png

4. If you need to designate a coaxial channel for IP in addition to bonus channels then you can occupy those channels with IP in a reverse sequential order. If you need to force a coaxial channel for HDCVI, AHD, CVBS, or other, this would be the place, although this process should be automatic.

Change to HDCVI Analog and IP4.png

Icon for type WebUI New.png

WebUI New

Step-by-Step Instructions for XVR

1. Enter the IP of the device into a browser (default 192.168.1.108)

At the Web Login

Enter the Username and Password

Click Login

2. Click Management

DVR Change to HDCVI Analog and IP - WebUI New - 1.jpg

3. Click Camera

DVR Change to HDCVI Analog and IP - WebUI New - 2.jpg

4. Click Channel Type

DVR Change to HDCVI Analog and IP - WebUI New - 3.jpg

5. Check the box under the IP column next to the Channel to enable IP for

DVR Change to HDCVI Analog and IP - WebUI New - 4.jpg

6. Click Save

DVR Change to HDCVI Analog and IP - WebUI New - 5.jpg

Confirm the prompts that appear by clicking OK

DVR Change to HDCVI Analog and IP - WebUI New - 6.jpg

DVR Change to HDCVI Analog and IP - WebUI New - 7.jpg

The system will reboot

When the unit is back up the IP channels will be enabled

DVR Change to HDCVI Analog and IP - WebUI New - 9.jpg
