EasyLive Plus Installation Guide

EasyLive Plus Installation Guide, This User Manual is compiled on the basis of EasyLive Plus Platform. With an attempt to provide brief description on the functions of this platform, assist the user to systematically learn about the operation procedures, this Manual is hereby compiled as a reference.

  1. Introduction
    1. Purpose

This User Manual is compiled on the basis of EasyLive Plus Platform. With an attempt to provide brief description on the functions of this platform, assist the user to systematically learn about the operation procedures, this Manual is hereby compiled as a reference.

[Note] The product will update from time to time without prior notice.

    1. Terms and abbreviations

None

So Software Overview

    1. Software application

EasyLive Plus is a mobile phone app developed on the basis of Android and iOS platform, and is mainly used for management of remote equipment in batch, preview of remote video, reception of the pushed alarms and equipment settings.

    1. Software installation

In equipment IE interface or GUI interface, the user can click “ ” , to enter into the QR code interface and download the software by scanning the App’s QR code.

    1. Software environment

Mobile phone: Android phones support V6.0 and above, while iOS

phones support V9.0 above.

    1. Hardware environment

Mobile phone: iPhone, Android devices

P2P server: 1 set of VM100

Network device: Gigabit network switch

  1. Login
    1. Quick Registration

After Installation of Easylive Plus application, click “ ” ” icon to running the APP. Choose correct “Area Selection”, and then click “Register” button to make an account registration, follow the requirements to fill the necessary information to register cloud account.

EasyLive Plus Installation Guide

Read More  :

  1. Hikvision TandemVu PTZ Camera User Manual
  2. Hikvision Hik-Connect Device Management
  3. XMEYE – How to connect an IP camera to the DVR

< Area Selection <

Account login ■ Chinese mainland

Account registration A ■ ; Aruba R 262407® T om Anguilla A Please input your email

S Please enter password &

Antigua and Barbuda #

A

Forgotten my password © Australia c

D

! American Samoa G

O Algeria 7

Quick registration x . k

: Angola l

m

.. N

Antarctica o

Q

Albania R

s

O Austria u

v w

O Afghanistan z

O Argentina

1 Azerbaijan

Armenia

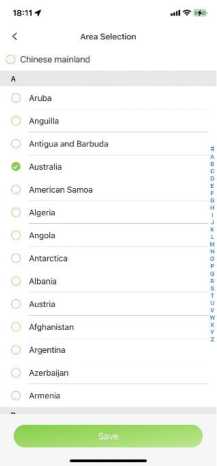

Area selection

Note:

B Please enter the validation code

fl Please enter password

fl Confirm password again

I have read and agreed

> Before your registration, please read and check the “User

Agreement”.

  • The account name can be the e-mail address used for registration, and the account name is unique.
  • The password combinations of 8-16 digits of numbers, letters or symbols.
  • After the area changed, the Easylive Plus need to be restarted to take effective.
  • The area selection should be the same with the device installation place.
    1. Forgotten my password

The password can be reset via registration e-mail address. The user can input the registration e-mail address to verify the account information, and after passing the verification, the user can input new password to reset the password.

17:53 V Bl

< Password resetting please enter year email address to help you reset your password.

ft Please input your email tE] Please enter Ihe.validation code O Please enter password *r>

fi Confirm password again <•>

Note: The password combinations of 8-16 digits of numbers, letters or symbols.

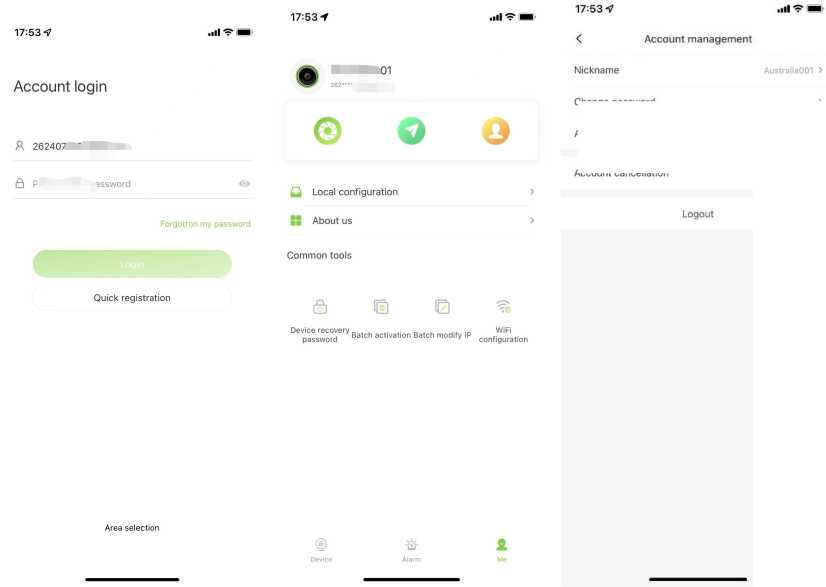

    1. Account Login

Use the registered account to login into the mobile, and check the

word image 2430 1

account detail information of it as below,

Authorized device management

3.4. Area Selection

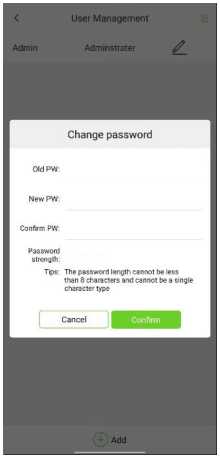

Change password

Account cancellation

On Adaptive mode, The application will find the suitable server location automatically, while some time the device installation area and mobile in different continents or countries, then the area selection needs to choose manually. Then it can make the system working correctly.

Note

> For remote checking your device, make sure your mobile APP and device installation network in the same area selection. For example, your device was installed in Europe, while you and your mobile in

Asia, then your mobile area selection should be” Europe”.

  1. Device Management

I

O

__ , ” icon to manage devices.

word image 2430 2

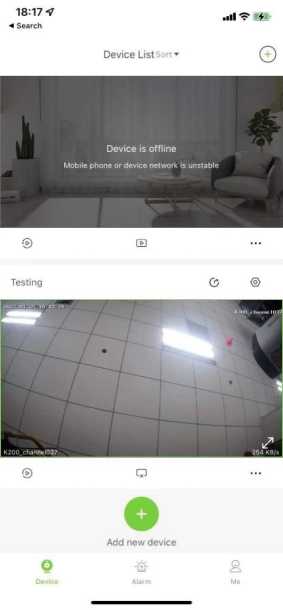

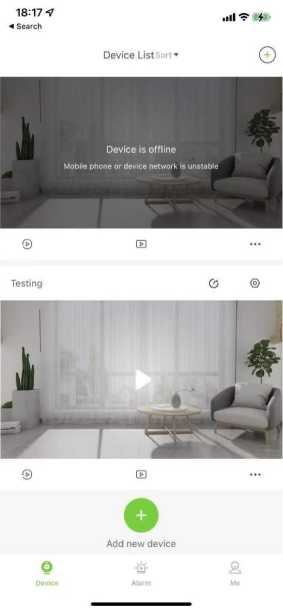

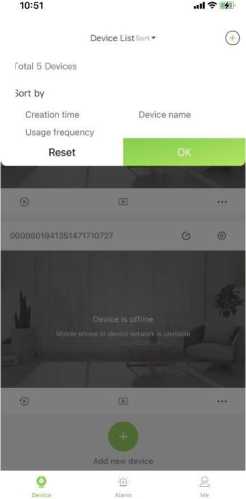

    1. Device List

Click the top page of device list, it can display the total added device quantity number, and sort these devices via creation time / Device Name / Usage Frequency.

word image 2430 3

4.2

Adding Device

Click the “♦

or

device in different modes.

10:56-f

Usage frequency

in

top right corner of device list page to add

10:56 -f

Manual Add

Choose how to add

Type 1: Networked device

Please select how you want to add the device

Networked device

Please scan the QR code of the device interface

Add via LAN

Type 2: LAN device

WIFI camera

Type 3: Devices with a domain name

Add by domain name port

Type 4:Easyddns equipment

Manual Add

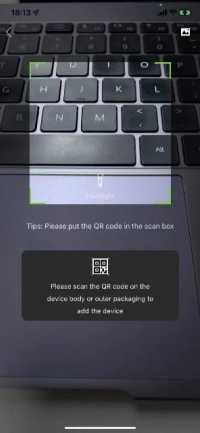

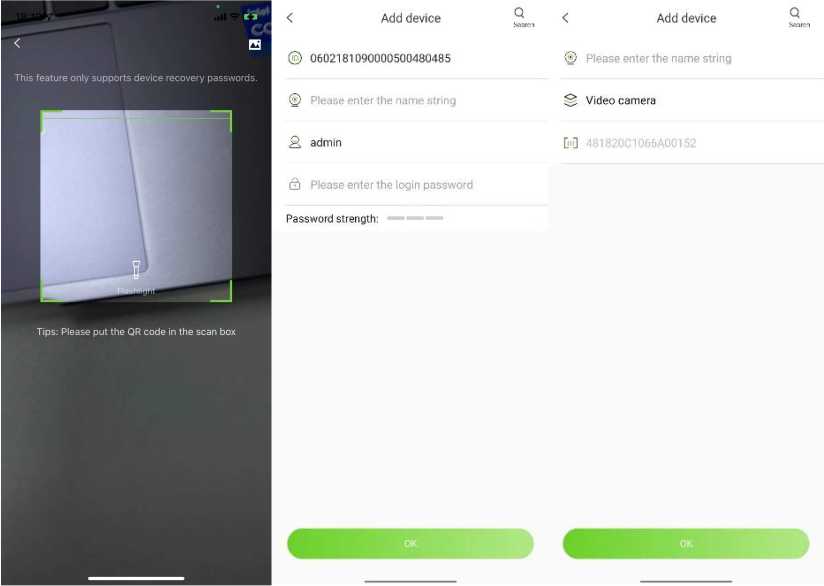

      1. Network device

When selecting and adding surveillance camera, surveillance NVR and surveillance dome camera, the user shall first enter into QR code scanning interface, and after scanning the QR code of devices, set device name and other related information to add device (the content to be added varies for different equipment; please be subject to the actual

scanning interface). Click “OK” to save the current settings.

word image 2430 4

Note:

  • QR code can be acquired by logging in the device IE or NVR local UI or identifying the image imported from photo album.
  • P2P device is mainly based on product factory ID to identified products. Factory ID can be found in Version info page, You can enter it manually.
  • Alicloud device is mainly based on product S/N number to identified products.
  • Easylive Plus cloud service is focus on alicloud, the products which support alicloud will have better performance, than the old P2P devices.

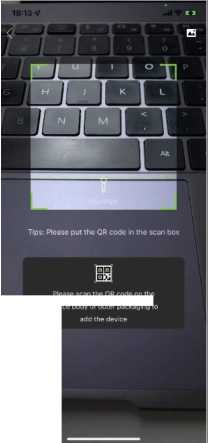

      1. WiFi camera

After plugging TF card into Wi-Fi camera, the user shall click the option of “Wi-Fi camera”, scan the QR code on the device body, and complete the adding and connection according to the steps popped out from the app, and after completing the adding and connection, the user can check

the real-time video via Easylive Plus.

word image 2430 5 word image 2430 6

Please scan the QR code on the

device body or outer packaging to

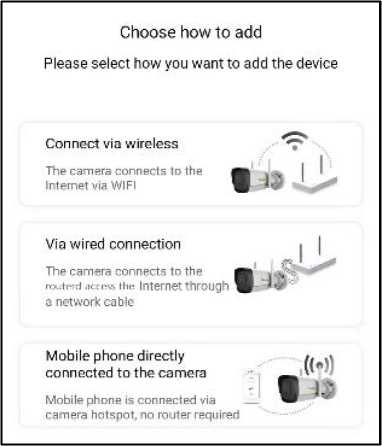

WIFI equipment can be added in three modes:

  1. Connect via wireless

Video camera will connect router by WIFI. Choose the name of WIFI to be connected following the prompted procedures of software. After entering correct password of the router, the client side will complete equipment configuration automatically.

  1. Via wired connection

The video camera will connect router by physical network cable, Follow prompted procedures of software and the software will complete equipment configuration automatically.

  1. Mobile phone directly connected to the camera

Mobile phone connects video camera by hotspot rather than router. Follow prompted procedures of software and WIFI video camera will complete equipment configuration automatically.

      1. Add by Product ID

Description: This kind of device adding mode is suitable for surveillance camera, surveillance NVR and surveillance dome camera that have been accessible to the public network.

word image 2430 7

10:56-f

< Manual Add

Type 1: Networked device

| Add by product ID

□ Add via LAN

Type 2: LAN device

11:34 -f .Hl V ®®’

rtil^fS®’ < Add device

(jd) Please enter an ID

© Please enter the name string > Please enter the login name

I*?] Please enter the login password

Password strength: 1

Type 3: Devices with a domain name

Add by domain name port

Type 4:Easyddns equipment

[j Add by Easyddns

After entering into the QR code interface, the user can click “Manual

Add” for selecting the mode of manually adding devices to enter into the connection type interface, and then the user can click the option of “Add by product ID” to enter into the interface of adding device ID.

After inputting correct device ID (generally 22-digit numbers), custom name, user name, password (must be two or more combinations of numbers and letters) and clicking “OK” button, the user can successfully add the surveillance device. When clicking “Preview” button, the APP will start to broadcast the video recorded by this device.

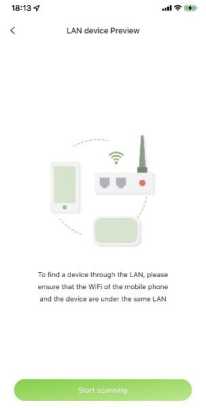

      1. Add via LAN

Description: This kind of device adding mode is suitable for

surveillance camera, surveillance NVR and surveillance dome camera that

can access to the same LAN environment.

10:56-f

< Manual Add

Type 1: Networked device

| Add by product ID

Add via LAN

Type 2: LAN device

Type 3: Devices with a domain name

Add by domain name port

Type 4:Easyddns equipment

< LAN add

© 0000801940400200370371

© 0000801840401501700634

© 0000801940400512190584

© 0602181090570310830558

i © 0602181090000961330616

.. © 0000801940401502380702

. © 0000801940401640500528

/■ © 0000801941530170090453

> •? © 0602181090000891480624

@ 0000801940400331280475

© 0602181090270671160597

\ @ 0000801940321441020552

© 0000801940400160170347

O AU

After selecting “Add via LAN”, or selecting certain connection type on the manual adding interface, and then clicking “ ” button, the APP will skip to device searching interface for automatically searching all devices which are in the same LAN. When the user clicks one device ID, it will return to the device adding interface, and after inputting correct username and password, the user can successfully add it.

      1. Add by IP port

Description: This kind of device adding mode is suitable for surveillance camera, surveillance NVR and surveillance dome camera that have been connected to the public IP, Easylive plus can add that device via public IP and ports.

word image 2430 8 word image 2430 9

10=56-f

I0&’

11:35

Manual Add

Add device

Type 1: Networked device

Please enter an IP

3000

Please enter the name string

Add via LAN

Please enter the login name

Type 2: LAN device

Please enter the login password

Password strength:

Type 3: Devices with a domain name

Add by domain name port

Type 4:Easyddns equipment

Add by Easyddns

Save

After entering into the QR code interface, the user can click “Manual Add” for selecting the mode of manually adding devices to enter into the connection type interface, and then the user can click the option of “Add by IP port” to enter into the interface of adding device IP. After inputting correct device IP address, custom name, user name, password (must be two or more combinations of numbers and letters) and clicking “OK” button, the user can successfully add the surveillance device.

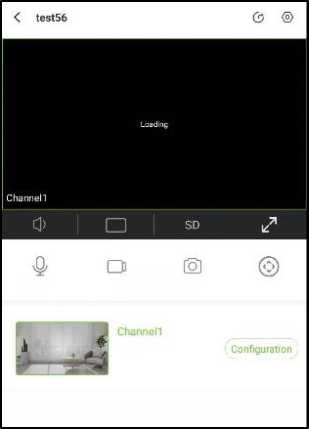

When clicking “Preview” button, the APP will start to preview the real time video stream.

      1. Add by domain name port

Description: This kind of device adding mode is suitable for surveillance camera, surveillance NVR and surveillance dome camera with domain name and accessible to the public network.

10=56 ¥ .ill «* *0 11:35 4 .III ■?“ l«^»-
< Manual Add < Add device
Type 1: Networked device (Jp) Please enter DNS
Add by product ID > Q 3000

© Please enter the name string

Add via LAN Please enter the login name
Type 2: LAN device Q Please enter the login password
Add by IP port Password strength; i —

Type 3: Devices with a domain name

word image 2430 10

Type 4:Easyddns equipment

El Add by Easyddns

word image 2430 11

After entering into the QR code interface, the user can click “Manual Add” for selecting the mode of manually adding devices to enter into the connection type interface, and then the user can click the option of “Add by domain name port” to enter into the interface of adding device domain name. After inputting correct domain name, custom name, user name, password (must be two or more combinations of numbers and letters) and clicking “Save” button, the user can successfully add surveillance device. When clicking “Preview” button, the APP will start to broadcast the video recorded by this device.

      1. Add by Easyddns

Description: This kind of device adding mode is suitable for surveillance camera, surveillance NVR and surveillance dome camera that have been accessible to the public network.

10=56-f ‘ill^W

11:35 -il ® bS!

< Manual Add

< Add device

Type 1: Networked device

(g) Please enter the name string

f TSI Add by product ID * _

Uaa @ Please enter DNS domain name

Please enter DNS user name Add via LAN >

|£| Please enter your DNS password

Type 2: LAN device

DNS password strength:

Add by IP port >

Q Please enter the login name

Type 3: Devices with a domain name I?! Please enter the login password

Add by domain name port >

Type 4:Easyddns equipment

El Add by Easyddns

word image 2430 12

After entering into the QR code interface, the user can click “Manual

Add” for selecting the mode of manually adding devices to enter into the connection type interface, and then the user can click the option of “Add by EasyDDNS” to enter into the interface of adding device domain name. After customizing the name of device, inputting correct DNS domain name, DNS user name, DNS password as well as user name and password (must be two or more combinations of numbers and letters) for login and clicking “OK” button, the user can successfully add surveillance device. When clicking “Preview” button, the APP will start to broadcast the video recorded by this device.

4.3. Configuration

Choose one device from the device management list, click the right corner icon “ ” to go to the setting page of that device.

word image 2430 13 « Search

< Configuration

Device Information

Modify device Testing >

System settings >

Face control >

Alarm output >

Voice uploading

Alert one button / withdraw

Alarm settings >

Delete device

Note,

Different devices support different features, and it can display different configuration items, please base on your real connection device to make configuration of device.

      1. Device Information

Click “Device Information” to get the device bind status, name, connection mode, current version and other related information of the device.

nil ffl&i

18:22-5′

< Configuration

Device Information

Modify device

System settings

Face control

Alarm output

Voice uploading

Alert one button I withdraw

Alarm settings

Delete device

Testing >

< Device Information

>, Ownership Unbound

‘ Device Name AlicloudNVR3220

Connection method P2P-A

Device Version

DVRS_V13.2.2.20211211 >

Serial Number

482634C1206A00052

Device QR Code

Notes,

  • There will have a reminder once some new firmware upload into the cloud upgrading server.
  • Click device QR code to enter the page of QR code saving. Click “Save to Album” to save it.
      1. Modify Device

Click “Modify Device”, device name, user name and password can be modified.

< Modify device
< Modify device © 0602181090000500480485
® tes156 ® test53
Video camera p. admin
Q«] 4B1820CID66AD013fi 6

Password strength: Weak

Save Save

      1. Channel Name

The name of equipment channel can be modified by clicking channel name. Click “Save” to complete the modification.

< Change channel name Save

Name Channell

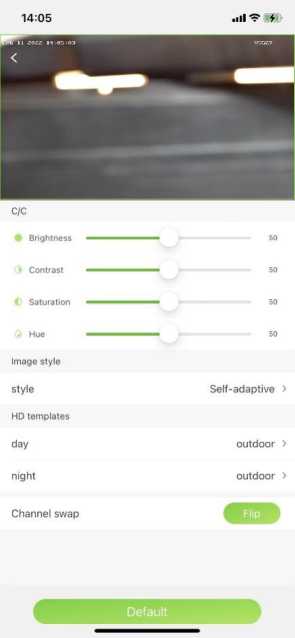

      1. Image Adjustment

By clicking “Image Adjustment”, users can adjust color parameters, set image style, choose high-definition template and rotate video.

word image 2430 14

Note:

Channel swap can rotate the image with 180°.

      1. Audio Adjustment

Click “Audio adjustment”, it can adjust camera input volume and camera output volume.

< Audio adjustment

Camera input volume 80

o

Camera output volume 100

♦>

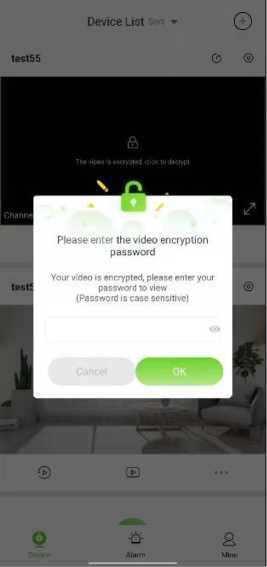

      1. Video Encryption

Once the video stream was encrypted, then if you want to preview the live video stream, it will have a pop-up to remind and input the decrypted password of the video stream.

word image 2430 15

      1. Early-warning

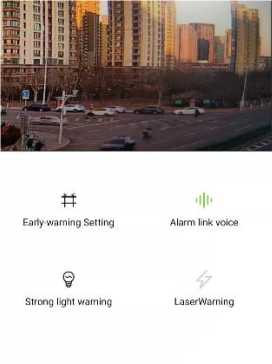

Some models support Early-warning, click “Early-warning”, users can choose “Early-warning Setting”, “Alarm link voice”, “Strong light warning” and “Laser Warning”.

word image 2430 16

Note, [Early-warning Setting]: Click ““$$” to enter alert settings interface.

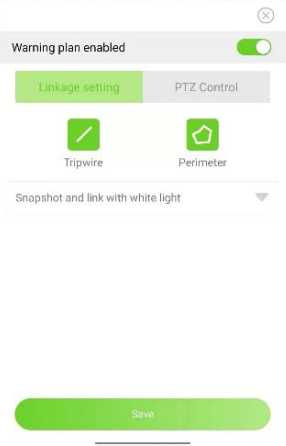

Alarm pre-arranged planning can be enabled. Linked settings and cloud

platform control can be operated. “ ” indicates alarm.

word image 2430 17 word image 2430 18 word image 2430 19

Warning plan enabled

Linkage setting

PTZ Control

Zoom

<

Faciia

Fig. 4.3.7.2

[Alarm link voice]: By clicking “ ” , the corresponding front end

gives alert; “ ” means that the function is not supported.

[Strong light warning]: By clicking “©” , the corresponding front end gives out white light; ” ” means that the function is not supported.

[Laser Warning]: By clicking “^” , the corresponding front end gives out laser; by clicking “^” , the corresponding front end does not give out laser; “4?” means that the function is not supported.

      1. Alarm output

Some models support alarm output. By clicking “Alarm Output”, corresponding alarm output switch can be enabled.

< Alarm output

Please set the alarm output switch

Alarm outputl

      1. Fill light setting

Click fill light setting item, it used to set the IR LED, warm light switch in color maker camera, and the light switch threshold setting.

< Fill light settings

Fili light mode

Infrared mode

The white light is off, the device only uses infrared light to fill light, and the video screen Is black and white at night.

Full color mode

The infrared light is off, and the device only uses white light to fill light, and the device always keeps the video screen in color

y Early-warning mode

At night, under normal circumstances, the device uses infrared fill light, and the video screen is black and white. If an intelligent alarm is detected, the device will light up and the video screen will switch to color.

Fill light brightness

Infrared light automatic adjustment

While light .

brightness

Fill light threshold

Night threshold

Note,

  • Different camera has different light condition, color maker have warm light, and general camera have IR LED, both can be configured by the Easylive Plus APP.
  • Early-warning mode only the Early-warning device can make it.
      1. Recording configuration

Click the recording configuration, you can set the recording schedule include the pre-recording time, post recording time and recording period schedule.

word image 2430 20

K200_channel037

K2OO_channelO37

Full-day recording

Delayed recording time

Timing

Week

Monday

Time period 1

00:00

00:00

Time period 3

Time period 4

Copy to

00:00

00=00

00:00

Save

00:00

00=00

00=00

Mobile alarm recording

Block alarm recording

      1. System Settings

Click “System Settings”, the time and time zone of the device can be modified, also remote reboot device can support.

18=20 V „|| c.

* Search

< System settings

System time 2022-01-251 B:20:01

Time zone <?mt-»08=oo >

Synchronize time

Synchronize lime zone

Sell testing

Reboot

Click “Self-testing”, the connection device can be simply verified the operation is correct and device working status are good.

Click “reboot”, the device can be restarted.

After successful self-test or restart, the device may be offline for shorttime, and then come back soon.

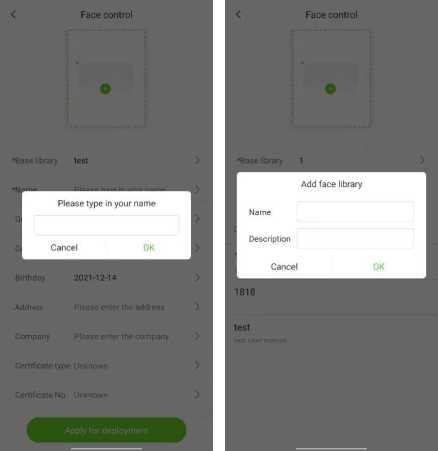

      1. Face Control

Click “Face Control”, you can create a face base, add face images and

other operations.

word image 2430 21

*Base library

Gender

Country

Birthday

Address

Company

Face control

test

Please type in your name

Unknown

Unknown

2021-12-14

Please enter the address

Please enter the company

Certificate type Certificate number

Certificate No. Unknown

Apply for deployment

word image 2430 22

Click

to upload a face picture. Picture size should not be less than 100kb, greater than 1M.

Click “Base Library” to create a new Base Library. Enter a name and description to create a successful Base Library.

Click Name to enter the user name.

Click “Apply for Distribution Control” to upload the newly created face base and face picture information to the corresponding device.

Description: “Face picture”, “Base library”, “Name” are required.

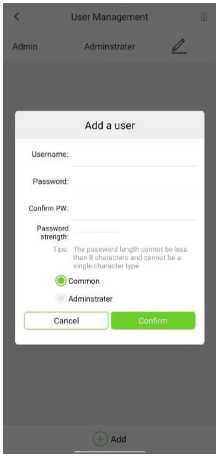

      1. User Management

Click “user management”, user can be added, deleted or modified.

word image 2430 23 word image 2430 24 word image 2430 25

User Management

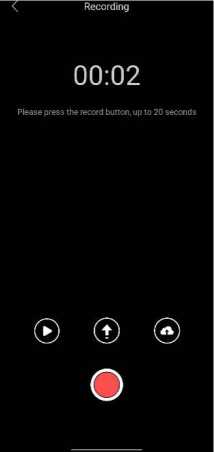

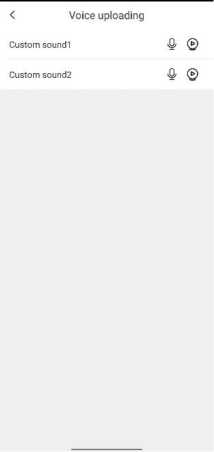

      1. Voice Uploading

Click “Voice Uploading”, alert sound can be recorded and uploaded.

word image 2430 26 word image 2430 27

word image 2430 28

Click

, the interface of recording self-defined alert sound can be opened; by clicking “®” , local recorded sound can be played.

Click “CD” , the sound can be synchronized to the current equipment or monitoring point; by clicking “@” , the sound can be synchronized to other equipment or monitoring point.

Click “ ” , the recorded sound can be played on equipment terminal.

      1. Report Punctually

After enabling hourly chime, the equipment will chime at each hour of the clock.

      1. Alarm Settings

Click “Alarm Settings”, user can enable mobile alarm, blocking alarm and intelligent analysis alarm.

…iv +

< General alarm

~ K200_channel037

Video motion alarm

Video loss alarm

Linked mobile push

JE threesmart101

S 18.89_backendtesting-Test123

S Channell

5 Channell

5 Channell

5 K200_channel037

5 threesmart101

g 18.89_backendtesting-Test123

Channell

~E Channell

S Channell

? K200_channciaaii

    1. PlaybackClick “® “playback, users can enter playback interface to find history video recording. at the same time, the video support manual snapshot, local recording, pause and speed up.

word image 2430 29

The interface related parameters as below:

Parameters Description
<»/<x Turn on / off sound: turn on or off the sound playback collected by the equipment or monitoring point.
HD/SD Switch resolution ratio of videos
71 1/ Full screen: video will spread to the whole screen after enabling it.
mi SD card playback: play the videos stored in SD card
Data controls. The user can modify the video
query time after selecting the date.
fol Capture: capture images in video playback.
r J Video recording: record a part of video playback.
© Pause: pause the current video playback.
Speed play: speed play of video for 2 times or 4 times.
A list that shows detailed video playback: video playback can be switched by clicking it.
    1. Device play / stop interface

Click “ stop/ play”, to stop / start view the currently video stream.

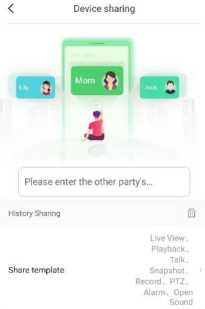

    1. Device Sharing

Click “ ‘share” , the current equipment can be shared to other users.

word image 2430 30 19:04-20:0417:04-18:04 ‘

< Device sharing $$

test5 6

® Channell

Basic permissions

Live View

Playback

Talk

Snapshot

Record

PTZ

Open Sound

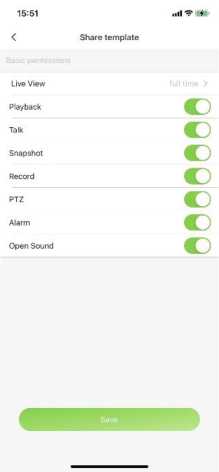

Share template

CD CD

CD

CD

CD

CD

word image 2430 31CD

Choose the channel of device sharing, click e-mail address of the opposite side, set permissions of sharing includingvideo preview, playback, talkback, capture, recording, cloud platform,

“share”, input registered

alarm and sound, click “save” to save the current settings.

word image 2430 32 word image 2430 33 word image 2430 34

Full time

Custom time period

Repeat

Add time period

Timeperiodl

Time period 2

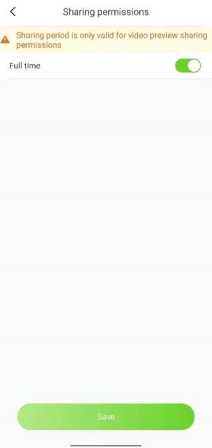

a Sharing period is only valid for video preview sharing permissions

Sharing permissions

Wee

19:04-20:04 •

17:04-18:04 ■

© Add t?j Delete

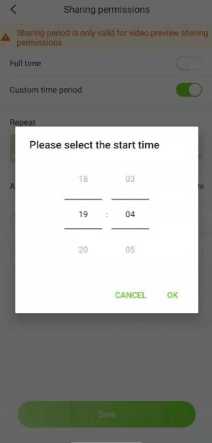

When setting video preview, sharing time slot can be set. The sharing time slot is 7×24 hours by default or can be defined by users.

Click “OK” to share the equipment successfully.

    1. More

Click “ ” , user can find more operation pages which support voice

intercom, video recording, video capture, cloud platform control, configuration modification etc.

word image 2430 35

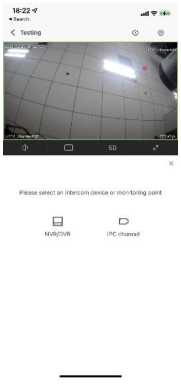

      1. Intercom

Click “’?’”, users can use mobile phone for voice talkback with the equipment or monitoring point.

word image 2430 36

Notes,

  • The microphone of mobile phone shall be permitted for talkback.
  • Device or monitoring point shall support voice intercom.

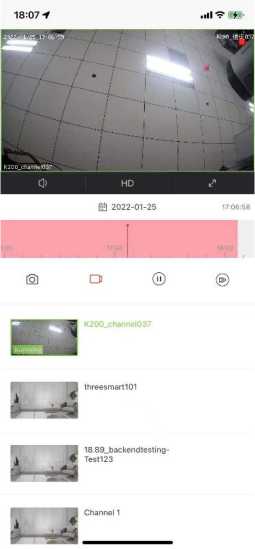

      1. Record

Click ” O” , video can be recorded; by clicking ” O” , stop the recording.

word image 2430 37

Note,

The recorded videos are saved in [My] -> [Album] -> [Video].

      1. Snapshot

Click “©” , images of current video preview can be captured.

Note,

Captured images are saved in [Mine] -> [Album] -> [Photo].

      1. PTZ Control

Upon selecting certain form playing the video, the user can click “® to turn on the PTZ control panel. It is featured with functions ofcontrolling the direction of PTZ, zooming, focusing and cruise presetting bit.

Click button “<:> to go to the PTZ control panel.

word image 2430 38

PTZ control panel can adjust the PTZ camera direction, zoom, focus,

cruise and preset position.

Parameters Description
< > Button of cloud platform direction control.
Q/ Zoom in/out
/ ■< NF/FF
<O> Cruise : The user can set the cruising route on IE, click “O” button on the mobile phone client, select the cruising number, click “On” button, and the cloud platform will cruise according to the set route.
Presets : The user can click “®” button to select the presetting bit number, and then click “Confirm” button to switch to the presetting bit.
(_3d”) 3D Positional : The user can click ““^” button, drag the video from upper left to lower right on the video form, and position the video at the dragging direction, zoom in the currently dragged area; drag the video from the lower right to the upper left on the video form, position the video at the dragging direction, and zoom out the currently dragged area.
      1. Configuration

Click “Configuration” to go to configuration page.

< Configuration

Channel Name

Image adjustment

Audio adjustment

Video encryption

Fill light settings >

Recording configuration

Alarm settings >

including channel name change, image adjustment, recording configuration, voice upload and alarm settings.

  1. Alarm Management

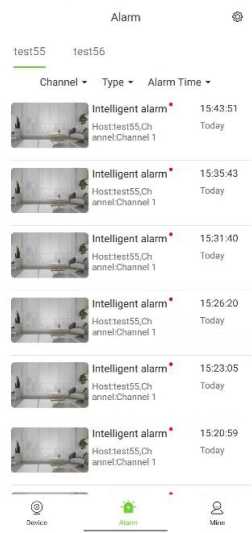

Alarm notification detail list can be inquired on alarm management page.

word image 2430 39

Click multiple choice button “0” in top right corner, alarm information of current equipment or monitoring point can be marked for “read already” or deleted. To quit from the multiple choice page, click the button “0” .

Click “®” in top right corner, alarm push can be set as shown below:

word image 2430 40 word image 2430 41 word image 2430 42 word image 2430 43

mm-

18.89_backendtes
ting-Test123

K200_channel037

18.89_backendtes
ting-Test123

18.89_backendtes
ting-Test123

Alarm @

Testing

Channel-’ Type* Alarm Time-’

All -/

Video motion alarm

Video loss alarm

Video block alarm

Intelligent analysis alarm

Port alarm

Intelligent alarm

Device offline alarm

Face alarm

< Smart alarm settings

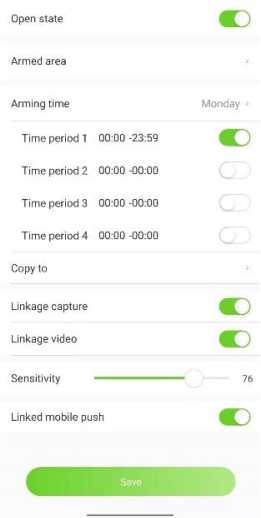

Some models support defense arrangement time setting for mobile alarm and blocking alarm, linked capture, linked video recording and linked mobile phone push enabling / disabling as shown below:

< Block alarm settings

Open state «

Arming time Monday

Time period 1 00:00 -23:59 C

Time period 2 00:00 -00:00

Time period 3 00:00 -00:00

Time period 4 00:00 -00:00

Copy to

Linkage capture

Linkage video

    1. List of Alarm

The alarm notification information including alarm type, host name, channel name and alarm time.

word image 2430 44 Intelligent alarm*

15:43:51

Today

Host:test55,Ch
annekChannel1

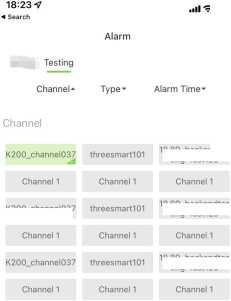

    1. Alarm Enquiry

Alarm information can be inquired according to channel name, alarm

information, alarm time etc.

word image 2430 45

18:23-7

J823* …I

Alarm @

Testing

Channel’ Type’ Alarm Time­

Start Time

2021 24

2022 Year 01 “ont 25 Day 00 Hour 00 Min

02 26 01 01

End Time

2021 24 22 58

2022 Year 01 “Ont 25 Day 23 Hour 59 Min

02 26

Testing

Channel-

Channel

Alarm

Type-

Alarm Time-

K200_channel037 threesmart101 18.89_backendtes

ting-Testi23

Channel 1

Channel 1

Channel 1

K200_channel037 threesmart101 18.89_backendtes tmg-Test123

Channel 1

Channel 1

Channel 1

K200 channel037 threesmart101 18.89_backendtes tmg-Test123

Channel 1

Channel 1

Channel 1

18:23 «

< Search

Alarm @

Testing

Channel- Type- Alarm Time-
All x/

Video motion alarm

Video loss alarm

Video block alarm

Intelligent analysis alarm

Port alarm

Intelligent alarm

Device offline alarm

Face alarm

[Channel]: The user can select the host and channel to be inquired.

[Type]: It supports video motion alarm, video loss alarm, video occlusion alarm, intelligent analysis alarm, port alarm, intelligent alarm, device offline alarm and facial alarm.

[Alarm time]: The user can set the begin time and end time of alarm enquiry.

    1. Alarm details

Choose a piece of alarm information to enter alarm detail page.

Real-time video and video playback in device channel can be found.

Alarm image *. 0

word image 2430 46

Alarm type Intelligent alarm

Event Time 2021-12-10 16:14:14

Device Name lest55

Alarm channel Channel 1

Alarm ho sties 15 5,Channel:Cha nn el

description

© Live video 0 Video recording

Note,

> To display the snapshot/video recording, it required the device set snapshot linkage action, and the snapshot can be stored.

      1. Live Video

The user can check the real-time video of the current alarm device by clicking “ ” .

Interface-related parameters are as below:

Parameters Description
Snapshot
& Recording
Speaking
<»/Mx Turn on/off the voice
DS/E3 Resolution switch (high definition- HD /smooth

definition- SD)

      1. Video Recording

When the user clicks “0” , the APP will go to the alarm playback interface, and starts to play previous 30s video and post-recording, the user can drag the time shaft and slide to any moment among the current period to start play.

Interface-related parameters are as below:

Parameters Description
Q Snapshot
& Recording
<»/Mx Turn on/off the voice
DS/E3 Resolution switch (high definition- HD /smooth

definition- SD)

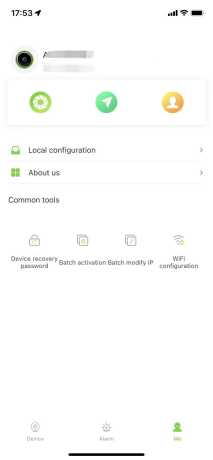

  1. User Management

Local manual snapshot, video clip, my share, account information, local configuration and common tools can be found on user management interface.

word image 2430 47

word image 2430 48

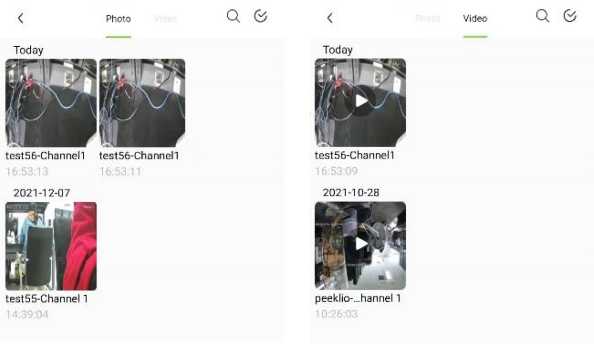

6.1. Photo

Click

to enter album, captured images and recorded video

preview or playback can be found.

word image 2430 49

Click the search button “ ” , support search via file name, and advanced search can support time period and device host to be searched.

< <

Search 1 ® advanced

Adv Search

Q Enter the name of the photo Cancel STARTING 2Q71-17-10

TIME

ENDIIME 2021-12-10

Select hast

tests5

test56

Search

Click “advanced” to enter the page of advanced search. User can set start time and end time, choosing the device or monitoring point (host) to search, images and videos files in the local mobile storage from Easylive Plus can be inquiry.

Click multiple choice button “0” in top right corner, image and video information of current device or monitoring point can be marked for “read already” or deleted. To quit from the multiple-choice page, click the button “0” .

    1. Sharing

Click “ ” to enter “My Share” interface to find the shared

equipment. In addition, sharing authority can be changed and cancelled.

word image 2430 5018:07-?

< Device sharing

‘ Testing

© 0 K200_channel037

0 threesmart101

0 18.89_backendtesting Test123

0 Channell

I 0 Channell

0 Channel 1

0 K200_channel037

0 threesmartlOI

। 0 18.89_backendtesting-Test123

0 Channell

0 Channel 1

0 Channell

0 K200_channet037

0 threesmartlOI

    1. word image 2430 51 word image 2430 52 Account Management

Click “ ” to go to account management page. Nickname and password of account can be modified, authorized device management and account cancellation can support.

17:54-7

17:53-7

< Account management

Nickname AustraliaOOI >

Change password >

Authorized device management >

Account cancellation >

Logout

< Authorized device management

Authorized to log in to the device (57)

The device account will he logged out after deauthorization, and login again requires authentication.

| Phone (current device)

Device type:iPhone XR

Recent login:2022-01-25 17:53:00

Q Relax

Device type:Xiaomi-Redmi K20 Pro

Recent login:202l-06-29 10:26:00

Deauthorization

Q No Data

Deauthorization

Recent login:202l-12-21 14:51:00

  • HUAWEI P40

Deauthorization

Device type:HUAWEI-ANA-AN00

Recent login:2021-12-15 20:00:00

0 tiandy-iphone

Deauthorization

Recent lcgin:202i-06-2913:18:00

  • iPhone

Deauthorization

Recent login:2021-09-2911:50:00

Deauthorization

Device type:iPhone 7

Recent login:2021-08-06 09:54:00

0 tiandy-iphone

Boai ithnrivatinn

[Nickname change]: User name of account can be changed. The nickname can be 6~32 characters.

[Password change]: Password of the account can be changed. The password can be 8~16 characters, being comprised of two or more types including digit, letter and symbol.

[Authorized equipment management]: Click it to show the equipment authorized already. After cancelling the equipment authorized before, the account will quit. Identity authentication will be needed for login in the next time.

[Account logout]: Account logout is irreversible. Before logout, please guarantee there is no equipment and unfinished online trade in the account. After logging out, the account will be unable to log in TIANDY APP again.

[Quit]: Quit the current account.

    1. Local Configuration

Click “ £ ” to enter local configuration interface. Users can change login region, gesture password and face ID verification.

word image 2430 53 word image 2430 54 word image 2430 55 word image 2430 56 word image 2430 57 word image 2430 58

18:12 <

Local configuration

Area selection

Autoplay

Set up face ID verification

Set gesture password

Not set

alarm message reminder plan

Single split screen video clarity

Download alarm pictures automatically

SD

Hardware decoder takes priority in use.

Receive alarm locally

Disk reserve (MB)

100

Number of screenshots

Split screen capture

[Area Selection]: Choose server area, make sure device installation place

and mobile app setting in the same area.

[Autoplay]: After enabling the function, videos can be played directly.

Otherwise, it is needed to click “ — ” on equipment interface.

[Set up face ID verification]: When the face ID is initiated, the userneeds to validate the face ID before logging in the APP in the next time, which aims to protect the safety of the user. If both face ID password and gesture password are initiated, the face ID password prevails.

[Set gesture password]: When the gesture password is set, the user needs to input correct gesture before logging in the APP in the next time, which aims to protect the safety of the user.

16:19-f .ii

<

Set the unlock pattern

f 1 (

I I I

[Alarm message reminder plan]: Set the time period for the mobile phone to receive the device alarm push message.

16:19 f

.ill? iW

select time Savs

08’00

start time

endtime oa;oo

mirLalarm_message_o!an_weel<_repeat rnonday tuesday thursday

Saturday sunday

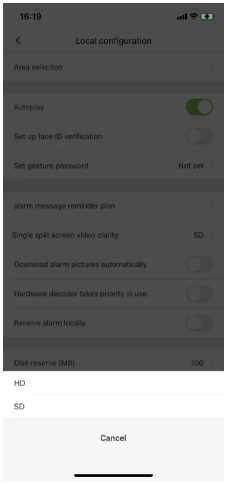

[Single split screen video clarity]: The user can select HD or SD, and the code stream of preview video on the real-time preview single split screen can be HD or SD.

word image 2430 59

[Download alarm pictures automatically]: Upon initiating the auto download alarm image, the user can see the alarm information and corresponding alarm image on the alarm management list (users with WIFI available shall pay attention to the consumption of network traffic!) [Hardware decoder takes priority in use]: After initiating the hardware decode, the user shall conduct the hardware decode on preview video and playback via mobile phone GPU, which can significantly boost the decoding performance.

[Receive alarm locally]: When the “Receive alarm locally” switch is on, the APP is allowed to receive the alarm notification; while the “Receive alarm locally” switch is off, this APP is forbidden receiving alarm notification. Both IOS and Android can receive notification no matter what the app is running or the back ground status.

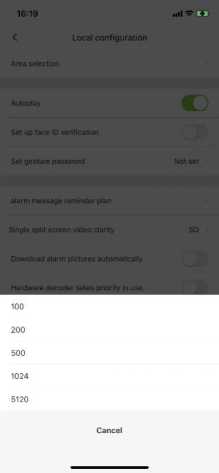

[Disk reserve (MB)]: The user shall check the cache directory path of the installed mobile applications regularly, and if the remaining memory is less than the internal storage (MB) of the device, the APP will automatically delete local snapshots and video files until the remaining storage is identical to the preset internal storage value.

word image 2430 60

[Number of screenshots]: When the snapshot of split screen is initiated, video images being played at currently accessible channels can be captured.

[Split screen capture]: Upon setting the number of screenshots, the number of all captured images remain same to the preset number.

Tips,

  • Hardware decoding support the operation system of mobile phone being Android 4.2 and above.
  • For Android system, it’ s not accessible for hardware decoding to achieve manual screenshot or digital zoom.
  • For Android system, hardware decoding can support the decoding of 4- channel images at the same time to the maximum (the decoding performance varies according to different mobile phone performance).
  • For IOS system, hardware decoding of H264 video coded format requires for IOS 8.0 or above, while IOS 11.0 and Iphone 6 or above for hardware decoding of H265 video coded format.
    1. About Us

Click “ ” to enter “help” interface and find online help manual.

< About us

word image 2430 61

Long press to share the client Easy Live Plus5.1 2

Feedback

User agreement

Privacy statement

Test the new version >

Check login status >

The user can feed back problems occurred during the use and opinions timely via filling in “Feedback”, Users can find use rights and interests by clicking “user agreement” and “privacy statement”. And check the current version via “Test the new version” in order to update the latest version.

Co Common Tool

    1. Device Recovery Password

word image 2430 62

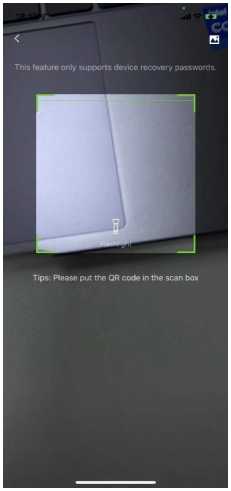

Click password reset button “ ” ” ,a QR code scanning box pops out.

The user can obtain the device encryption string and contact information by scanning the QR code on the device, and reset the password by inputting the encryption string into the box of “please input the security code” and click “Next”.

    1. Batch Activation

word image 2430 63 < Activate the device

IP address of the device to be activated

_ , _ … .. Please enter

Device Reserved Information

reserved phone

Change the initial password to activate the device

The new password Please enter password <•>

Confirm password Please enter password

Password strength:

rips. The passwoid lent)ili cannot be less than s ohaiacters and cannot be a’Single character type

Click batch activation button “ ” ”. At the same LAN, the APP can be activated by taking the following steps: Search the device, select the inactivated device, input correct information as well user name and password for validation.

Activate

    1. Batch modify IP

word image 2430 64 < Network parameter setting

13=13-?

< LAN device Preview

Device to be modified

manual setting

Starting IP

Subnet mask Please enter the subnet mask

Gateway

DNS

word image 2430 65 word image 2430 66 To find a device through the LAN. please
ensure that the WiFi of the mobile phone
and the device are under the same LAN

Click Batch modify IP button “ ” , search device in the same LAN, choose the device of which IP needs change, click “settings”, enter initial IP of equipment, subnet mask, gateway and DNS, click “save” to change equipment IP.

    1. Wi-Fi Configuration

This tool can be used to connect WIFI camera to common NVR devices.

The operation steps are as below,

word image 2430 67

  1. Click the QR code on the body of WIFI-connected camera to enter into the camera configuration interface, and the device is started until the blue indicator turns always on;
  2. Configure the router and input the password of WIFI-connected camera, and the user should remember to keep the router, mobile phone and device closely to ensure the normal networking;
  3. Input or stick WIFI password, and then connect with the device network;
  4. Complete the configuration.

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.
