How to Update Firmware via USB

Description

Follow these instructions to update the firmware on a recorder using a USB storage drive. Be sure to the appropriate firmware for your device.

Prerequisites

  • USB Drive 1GB or more
  • The proper firmware file for the device
  • Physical to the device
  • A computer to load the firmware files onto the USB

Video Instructions

Step by Step Instructions

1. Firmware and copy to USB such as a flash drive ➞ Insert USB into recorders USB port.

2. It will prompt for option to upgrade, Click System upgrade ➞ Click Start.

Usb upgrade 1.png

Usb upgrade 2.png

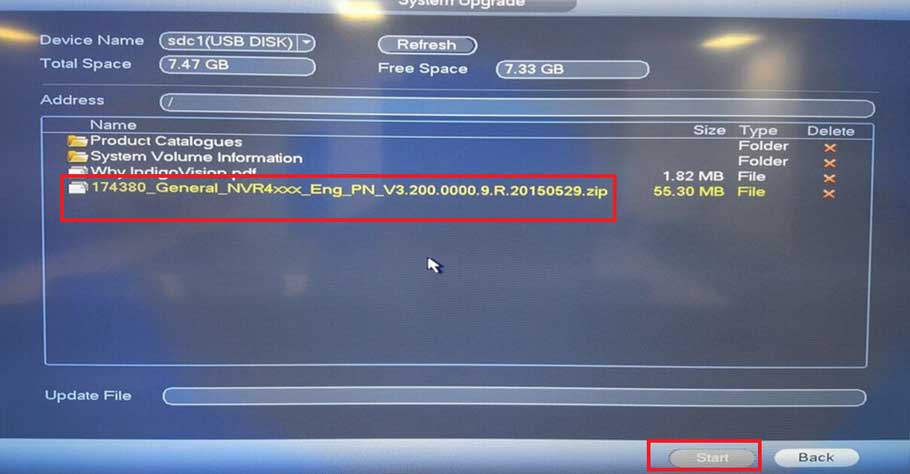

3. Browse for firmware ➞ Open firmware folder is in ➞ Select Bin File ➞ Click Start. Device will reboot once finished.

Usb upgrade 3.png

Update Firmware via LAN(Browser)

This applies to DVR, NVR and IP Cameras.

Please Note : You need to clear previous active-x installs for newly applied to show on Web Service in IE Web Browser. To do this, Delete webrec folders from Program files and Program Files(x86) under Windows (C:) drive. Please also reference http://dahuawiki.com/Troubleshoot/Delete_Web_Rec

Description

This enables you to update the firmware of NVR/IPC/HCVR using browser.

Prerequisites

  • Computer
  • Internet
  • Compatible Browser (Internet Explorer)
  • NVR/HCVR/IPC

Video Instructions

Step by Step Instructions

Step 1: From IE(Internet Explorer) type in the devices IP address on the IE address bar  login with credentials.

Web upgrade wiki 2.png

Step2: Setup  System  Upgrade


Step 3: Click on “Browse”  Select correct firmware

Web upgrade wiki.png

  • Click on “Upgrade”

Firmware 3.png

  • Device will reboot after upgrade is finished.

Updatebrowser 1.png

USB firmware Upgrade via web.

If firmware is on USB Device  Click on browse  Navigate to USB location  Select firmware  Open  Upgrade.



Updatebrowser 1.png

Update Firmware via LAN(ConfigTool)

Description

Use DahuaConfigTool to update firmware using the IP address of the device.

Prerequisites

Video Instructions

Step by Step Instructions

1. Launch the ConfigTool


2. Click on the device you wish to upgrade, and click, “Login”


3. Input your device’s user name and password, and click, “OK”


4. Click, ‘Upgrade’


5. Click, “OpenFile” and locate the firmware update file.


6. Click, “Upgrade” and wait several minutes for the upgrade to complete.


How To Upgrade Firmware via NVR Update

Description

Select NVRs now have the capability of updating firmware from the cloud.

When the NVR detects there is a newer firmware in the cloud, a red ‘1’ icon will appear at the System icon.

The entire process takes about 5 minutes depending on network connection.

Prerequisites

  • Device that supports NVR Update (see list below)
  • Internet connection to the device
  • P2P Connection Online – How To Setup P2P

Supported Devices

Please reference the table below for what models support NVR Update and what firmware version(s) they must be at to support the NVR Cloud Update feature:

Model Required Firmware Version(s)
N42B1P 3.216.0000002.0.R.190102, 3.216.0000001.0.R.181217
N42B2P 3.216.0000002.0.R.190102, 3.216.0000001.0.R.181217
N42B3P 3.216.0000002.0.R.190102, 3.216.0000001.0.R.181217
N52A4P 3.216.0000005.0.R.190125, 3.216.0000004.0.R.181229, 3.216.0000003.0.R.181211, 3.216.0000002.0.R.181106, 3.216.0000001.0.R.180326
N52B2P 3.216.0000005.0.R.190125, 3.216.0000004.0.R.181229, 3.216.0000003.0.R.181211, 3.216.0000002.0.R.181106, 3.216.0000001.0.R.180326
N52B3P 3.216.0000005.0.R.190125, 3.216.0000004.0.R.181229, 3.216.0000003.0.R.181211, 3.216.0000002.0.R.181106, 3.216.0000001.0.R.180326
N52B5P 3.216.0000005.0.R.190125, 3.216.0000004.0.R.181229, 3.216.0000003.0.R.181211, 3.216.0000002.0.R.181106, 3.216.0000001.0.R.180326
N54A4P 3.216.0000005.0.R.190125, 3.216.0000004.0.R.181229, 3.216.0000003.0.R.181211, 3.216.0000002.0.R.181106, 3.216.0000001.0.R.180326
N54B3P 3.216.0000005.0.R.190125, 3.216.0000004.0.R.181229, 3.216.0000003.0.R.181211, 3.216.0000002.0.R.181106, 3.216.0000001.0.R.180326

Video Instructions

Step by Step Instructions

1. Enter the Main Menu

From Live View – Right Click and select Main Menu

NVR Cloud Update - 1.jpg

2. Click System

NVR Cloud Update - 2.jpg

3. Click Upgrade

NVR Cloud Update - 3.jpg

4. Click ‘Manual Check’ and the unit will detect if a newer firmware is available

NVR Cloud Update - 4.jpg

5. Click Upgrade Now to begin the update process

NVR Cloud Update - 5.jpg

6. The firmware file will be downloaded

NVR Cloud Update - 6.jpg

7. After downloading the unit will automatically begin the firmware upgrade

NVR Cloud Update - 7.jpg

8. The unit will reboot as the final step of the upgrade

NVR Cloud Update - 8.jpg

Firmwares

General_ASI1201A_Eng_MCU_V2.006.0000000.2.R.211110

24/01/2022

DH_HYSAV849HA-SA_Chn_MCU_V1.000.0000001.0.R.211211

21/01/2022

DH_HYSAV8XX-E_MultiLang_PN_Stream3_V1.000.0000000.0.R.220112

22/01/2022

DH_HYSAV8XX-E_MultiLang_NP_Stream3_V1.000.0000000.0.R.220112

22/01/2022

DH_IPC-Consumer-Web-Mao-Molec_Eng_P_V2.800.0000000.17.R.211129

24/01/2022

DH_IPC-Consumer-Web-Mao-Molec_Eng_N_V2.800.0000000.17.R.211129

24/01/2022

General_TPC-NYX2200-MS-ETGW_V1.000.0000000.0.R.20210602

06/11/2021

DH_TPC-KF2243-TB_Eng_PN_V2.660.0000000.5.R.211210

05/01/2022

DH_VTOXXXEFQR_MultiLang_PN_128M_SIP_V4.510.0000001.0.R.220108

15/01/2022

DH_VTOXXXXD-G-S2_MultiLang_PN_PAAS_SIP_V4.511.0000000.0.R.220105

14/01/2022

DH_SD-Chen-Leo_MultiLang_NP_Stream3_V2.812.0000009.0.R.210826

14/01/2022

General_ASI82XX-C-MCU_READER_V1.000.0000000.5.R.211222

14/01/2022

General_ASA1222E-S_Eng_V2.000.0000000.5.R.211208

13/01/2022

DH_TPC-BF5X01-TB-S2_MultiLang_PN_V2.650.0000000.0.R.210923

05/11/2021

DH_TPC-BF5X01-TB-S2_MultiLang_PN_V2.650.0000000.1.R.211129

10/01/2022

DH_IPC-WX-Web-Hertz2_EngSpnRus_NP_V2.800.0000000.0.R.211111

13/01/2022

General_ASC2208C-S_MCU_V2.000.0000000.8.R.211203_Release Notes

12/01/2022

General_ASC2208C-S_MCU_V2.000.0000000.8.R.211203

12/01/2022

General_ASC2204C-S_MCU_V2.000.0000000.8.R.211203_Release Notes

12/01/2022

General_ASC2204C-S_MCU_V2.000.0000000.8.R.211203

12/01/2022

General_ASC2204C-D_MCU_V2.000.0000000.8.R.211203_Release Notes

12/01/2022

General_ASC2204C-D_MCU_V2.000.0000000.8.R.211203

12/01/2022

General_ASC2202C-S_MCU_V2.000.0000000.8.R.211203_Release Notes

12/01/2022

General_ASC2202C-S_MCU_V2.000.0000000.8.R.211203

12/01/2022

General_ASC2202C-D_MCU_V2.000.0000000.8.R.211203_Release Notes

12/01/2022

General_ASC2202C-D_MCU_V2.000.0000000.8.R.211203

12/01/2022

General_ASC2204B-S_MCU_V2.000.0000000.8.R.211203_Release Notes

12/01/2022

General_ASC2204B-S_MCU_V2.000.0000000.8.R.211203

12/01/2022

General_ASC2202B-D_MCU_V2.000.0000000.8.R.21120_Release Notes

12/01/2022

General_ASC2202B-D_MCU_V2.000.0000000.8.R.211203

12/01/2022

General_ASC2202B-S_MCU_V2.000.0000000.8.R.211203_Release Notes

12/01/2022

General_ASC2202B-S_MCU_V2.000.0000000.8.R.211203

12/01/2022
