How to Use VMS Enterprise Video Wall

Chapter I Introduction

“Milesight VMS Enterprise” supports Video Wall function, which is a necessary advanced function for professional VMS. The Video Wall function supports custom screen combinations and split. It can divide a single monitor into multiple screens, which can be divided into up to 4 screens, or combine multiple monitors into one screen. It controls the maximum number of screens that can be run with a license. If the number of screens connected to the client computer is large enough, more screens can be generated. Moreover, the screens generated by the Video Wall are independent of each other. In particular, the Video Wall function can push the computer desktop to the wall.

Here are some professional terms related to Video Wall, so that you can better understand the function.

  • Monitor

Refers to the monitors actually connected to the client computer.

  • Screen

Refers to the areas created based on monitor for displaying video.

  • Video Wall

It’s made up of screens.

  • Matrix

It is composed of the contents and layout displayed on the Video Wall screen.

Chapter II Operations

2.1 How to Set Video Wall?

Note:

① Make sure that there is a license for Video Wall in the system, and the license quantity is sufficient.

② Make sure the Video Walll Server is installed and running on the Client you want to connect to.

Step1: First, click the button [Creat Video Wall] to create the Video Wall in the Settings -> System & Servers -> Video Wall Settings interface.

mZw

Then you can click hFhfqFFsraIi7tm5wn7 sMFwk1KD69auJgto rename the Video Wall.

oKMKYLScomHoahbpKjwSJGelEhQf

Step2: Click the button to pop up the Add Screens window, and all Clients in the LAN will be displayed in the list. You can refresh the list and search the Client.3FhArdkvaCS6IN6N2AfLitApHZkMsDEE7A

Step3: Then select the Client whose screen does not exist in the current Video Wall in the LAN from the list, and click the buttonSA2R75 ljD2GTwSPwVjNCtP wlD1ENoYRA. You can also add multiple Online Clients as needed. Then these added Clients will be displayed in the Screen Setting list. And all monitors actually connected to these Clients will be displayed on the Clients.

zMrJm7 Vp7kut URoi9Wz3ionOu16plXgg

You can refresh the Screen Setting list and search for the added Clients. If you want to delete the Client, you can click the buttonakUjYXoYdTC5u oCM332hoA JryHepUjOw.

Step4: Click on a blank area of a monitor on the Client to create a new screen, then you can click and drag the screen to adjust the position. And the screen selected box has 8 small squares that you can drag to adjust the screen size. Each monitor can be divided into up to 4 screens.

I30q1EvBmNYvmD3Avr6w4pwQ6QJ6C9Dnuw

In addition, you can click the screen and then click the screen name to rename it, and delete the screen by clicking the icon 7j8TSXOZ6Wo 0w8pp yevoicKFVDrBJvKA in the upper right corner of the screen.

Step5: Click the screen you want, and then click the button  to add the screen to the Video Wall. You can add multiple screens as needed.

You can click and drag any screen on the Video Wall to adjust the position, and drag the small squares of the selected box to adjust the screen size. Click the icon c02ZK9tg5 to delete the screen on the Wall. And you can also adjust the layout of the Video Wall by clicking the icons  or sliding the mouse wheel.

EKt yiqcvTBjVpg3mnVtaJqPL5cLy tpUw

Step6: Click the button  to apply the settings.

Step7: Then click the button j02iepFgJIMpX8jCH7jXtad0vDiuaTDq1Q to run the Video Wall. And then you can use Video Wall function in the Live View interface.

1QHTScvnWgSqearS4JSTOGMsbwQ88B9t4Q

When the Video Wall is running, you can still click and drag any screen on the Video Wall to adjust the screen position and size, which is convenient to match the actual physical position composition of each screen.

In addition, click the button lwOVmJbDCMbvHTYubrf8AT2CHE8VuDFYMQ to identify the corresponding screens. And you can click the button5mm6l9ZXRYPdP 1RJ6y4N3fs93KY3Ig1Qw to stop running the Video Wall. Or click the button  to delete the Video Wall.

2.2 How to Use Video Wall?

The Video Wall list created in the Video Wall Settings is displayed in the left Resource panel of the Live View. And you can use all screens in the local area network.

6giVjAhaya PFBEhxyDNLoJYgqDYq uhMQ

Note:

The icon  indicates that the screen is not available, you need to check if the Video Wall Server is running normally.

2.2.1 How to Run Video Wall?

Step1: Right-click the Video Wall and a menu window will pop up as below:

[Control Video Wall]: Pop up the Video Wall control window to use the Video Wall.

[Start Wall]: Run the Video Wall.

[Rename]: Rename the Video Wall.

[Video Wall Settings]: Jump to the Video Wall Settings page.

Step2: Select [Control Video Wall] option, and then the following window pops up:

Step3: Click the button ygG2IHkiAwr6MswiW3UQOE6JzsWGG3mE g to run the Video Wall. Then you can drag and drop the cameras, layouts and tour plans to the screens.

After running the Video Wall, you can also do the following:

  • l Click the button FYVYeL YF3K3Fo4fkHwam8Re4A 6xxVc Q to identify all running screens in the Video Wall.

  • l Click the button v0Oc9ohUmXb0gEgd5 to clear the content on all screens in the Video Wall.

  • l Click the button  to stop running the Video Wall.

In addition, you can double-click the screen to enter the specific screen. And you can also right-click the screen to do something. For more details, please refer to How to Run Screen?.

Step4: When the Video Wall is running, you can right-click the Video Wall and a menu window will pop up as below:

s7HitN

[Control Video Wall]: Pop up the Video Wall control window to use the Video Wall.

[Stop Wall]: Stop running the Video Wall.

[Clear Wall]: Clear the content on all screens in the Video Wall.

[Rename]: Rename the Video Wall.

[Save Matrix]: Save the content currently playing on each screen of the Video Wall. For more details, please refer to How to Save and Load Matrix?.

[Identify Screens]: Identify all running screens in the Video Wall.

[Video Wall Settings]: Jump to the Video Wall Settings page.

2.2.2 How to Run Screen?

Step1: Right-click the screen and a menu window will pop up as below:

xtrRE1YfAwp6qkaq 9sBonQNQ5Joug3GSg

[Control Screen]: Pop up the screen control window to use the screen.

[Start Screen]: Run the screen.

[Rename]: Rename the screen.

Step2: Select [Control Screen] option, and then the following window pops up:

GIZjTEenZR9ya2Td8d6jEEntvEOi2t8G w

Step3: Click the button pL9agnus0PMqFIvn7dSIwe5zhADmhO7ohA to run the screen. Then you can drag and drop the camera, layout and tour plan to the screen.

After running the screen, you can also do the following:

  • l Click the button  to refresh the screen.

  • l Click the button 1Vi3s9IqCEBeEWfwd2WHSY57Tccbd70A5Q to identify the corresponding screen.

  • l Click the button 0poaAoWlGnr1qUn57bNw 30a3iW1z44Ipg to clear the content on the screen.

  • l Click the button  to stop running the screen.

iCEoJZ PW388bMYWgsuiV cKKMXjpReSUA

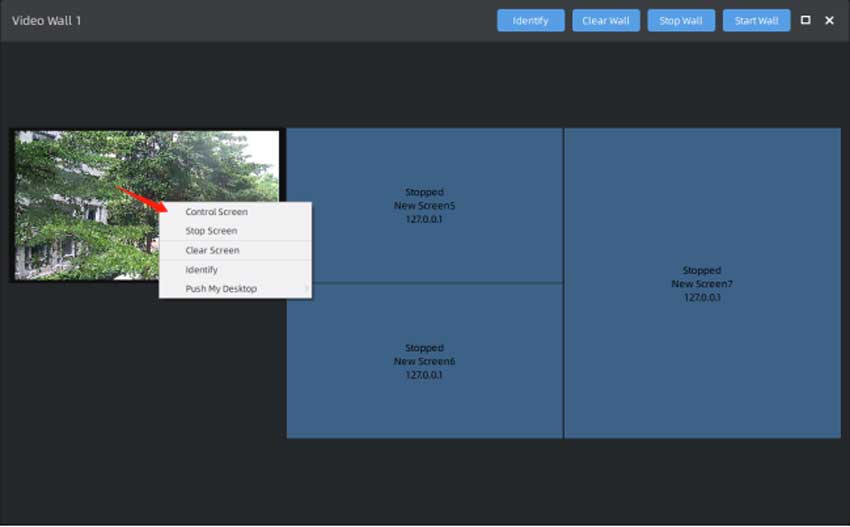

Step4: When the screen is running, you can right-click the screen and a menu window will pop up as below:

[Control Screen]: Pop up the screen control window to use the screen.

[Stop Screen]: Stop running the screen.

[Rename]: Rename the screen.

[Clear Screen]: Clear the content on the screen.

[Identify]: Identify the corresponding screen.

[Push My Desktop]: Push the desktop to the screen for display. If there are multiple desktops, select any one to push as needed.

kAU izgO25Sux TI7WfbPCseN6 s2gvuoA

2.2.3 How to Save and Load Matrix?

Step1: Right-click the Video Wall and select [Save Matrix] option to save the content currently playing on each screen of the Video Wall. The Save Matrix window will pop up, you can edit the matrix name, and then click the button V 8IfPjOjiTMM7ZrIVmlwUuUDsoaJnTc9Q.

Note:

Make sure the Video Wall is running.

LmqUt37t7IOY7jIMw1TjtO6t2a2RKMb2oA

Step2: Then right-click the matrix and a menu window will pop up as below:

mMADJEq4Ym8LsvmqJo z nMlg3DY8CWmNQ

[Load to Video Wall]: Each screen will play the content according to the matrix.

[Save]: Save the content currently playing on each screen of the Video Wall to the matrix.

[Rename]: Rename the matrix.

[Set As Default]: Set the matrix as default. Every time you run the Video Wall, each screen will play the content according to the matrix. There is at most one default matrix.

[Delete]: Delete the matrix.

Step3: Select [Load to Video Wall] option, and then the following window pops up:

Click the button , and then each screen will play the content according to the matrix.

ViZgRdX73jrpRUuoruQZFiPRjskH6mJiuA
