By default, the Setup Wizard starts once the device has loaded.

Operating the Setup Wizard:

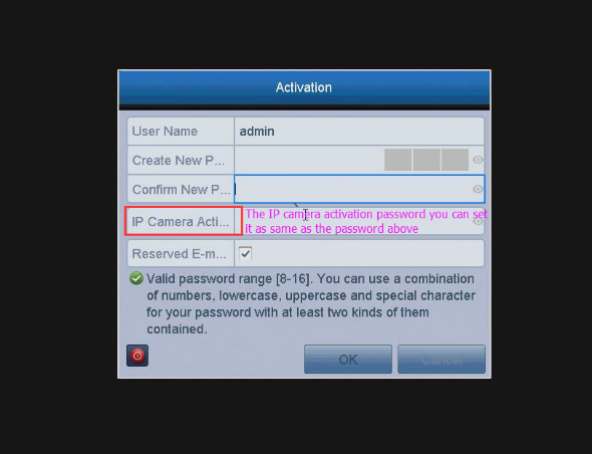

1. Activation: Create a to activate the system.


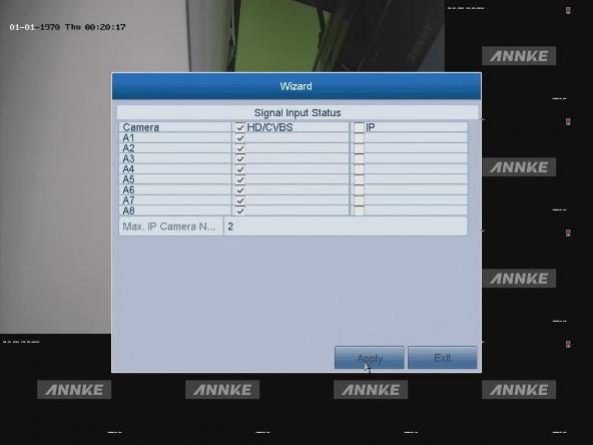

2. For the first time to set up the system, please leave the settings of Singal Input Status by default.

3. Choose the system language.

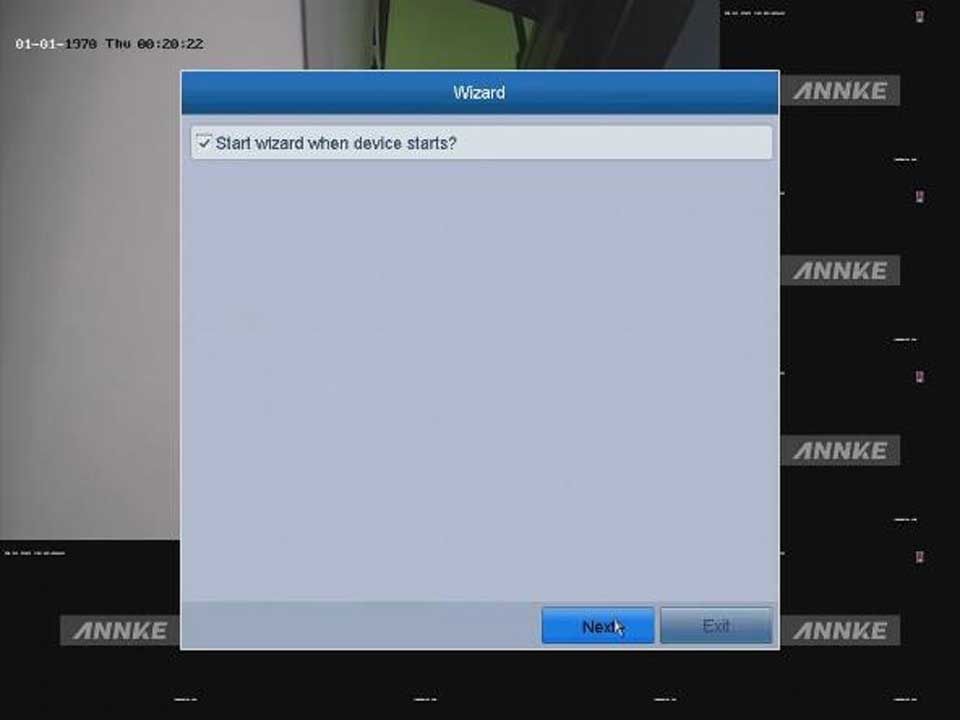

4. Free to choose the option “Start wizard when the device starts?”.

Note:
The Start Wizard can walk you through some important settings of the device.

If you don't want to use the Start Wizard every time when the system runs, uncheck the option.

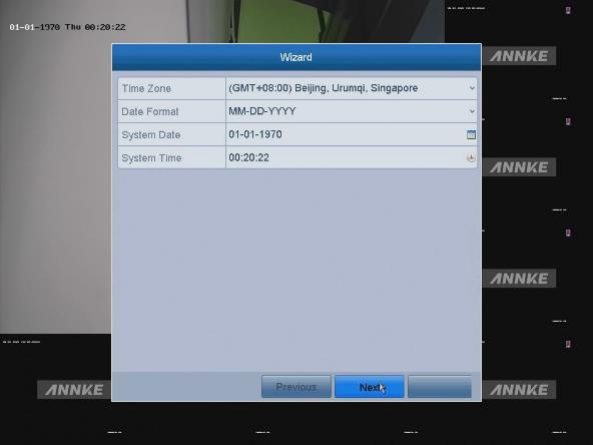

5. Click Next to enter the date and time settings window.


6. Click Next button after the time settings. Then enter the General Network Setup Wizard window.

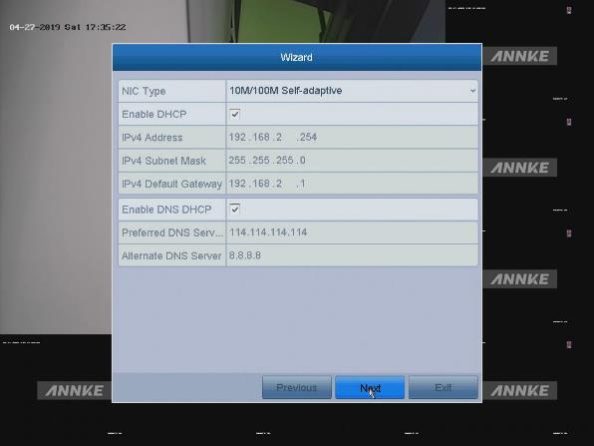

7. Click the Next button after you configured the basic network parameters. Then enter the Cloud P2P interface. Check the “Enable” button and create the verification code if you want to view your system via the phone or the internet.

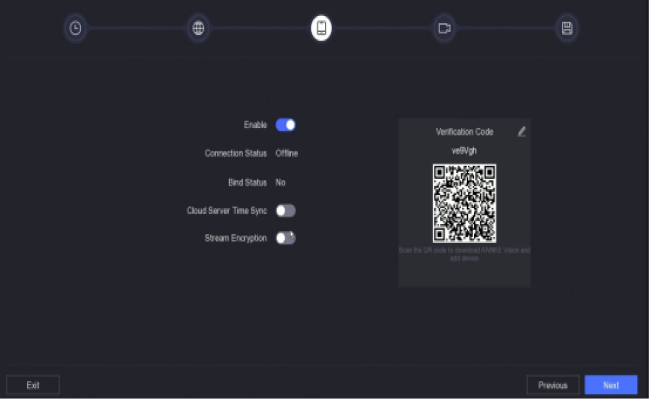

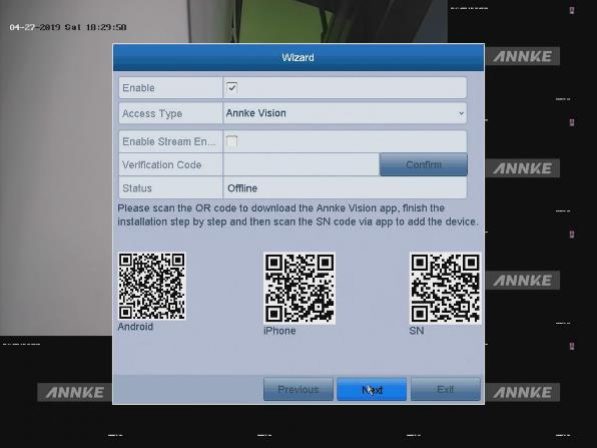

Note: Configure the Cloud P2P according to your need

8. Click the Next button to enter the Advanced Network Parameter interface.

Note: You can enable PPPoE, enable DDNS and set other ports according to your needs.

9. Click the Next button after configuring the advanced network parameters, then go to the  Management window.

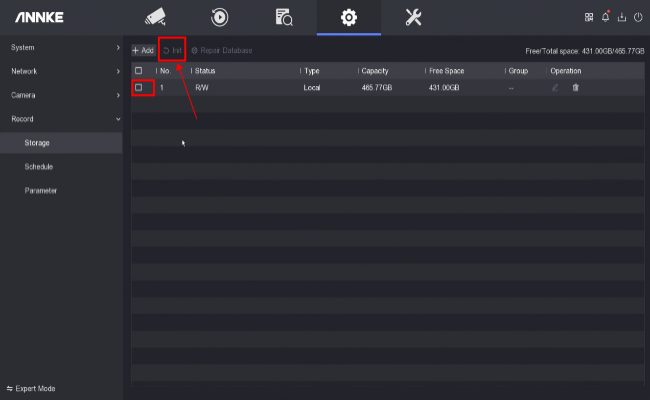

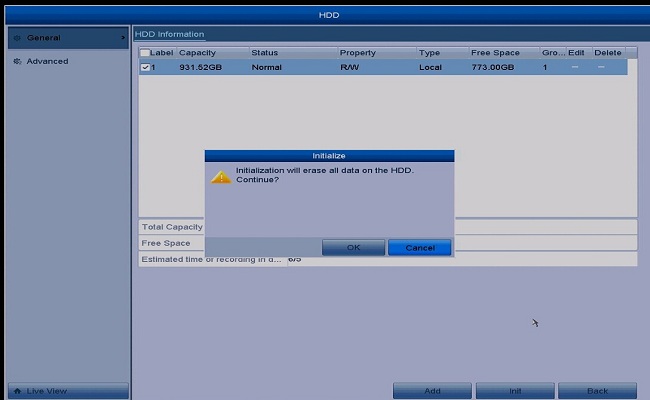

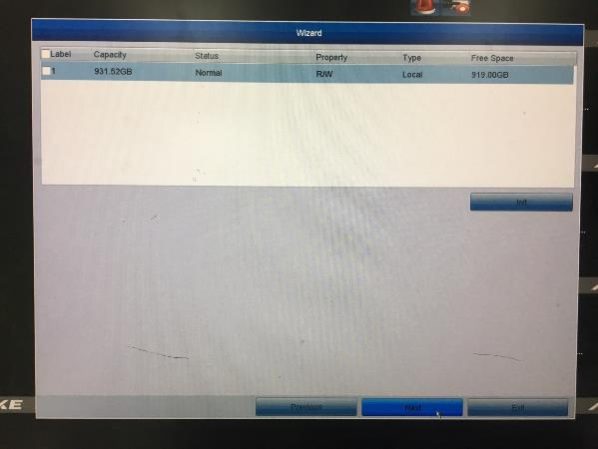

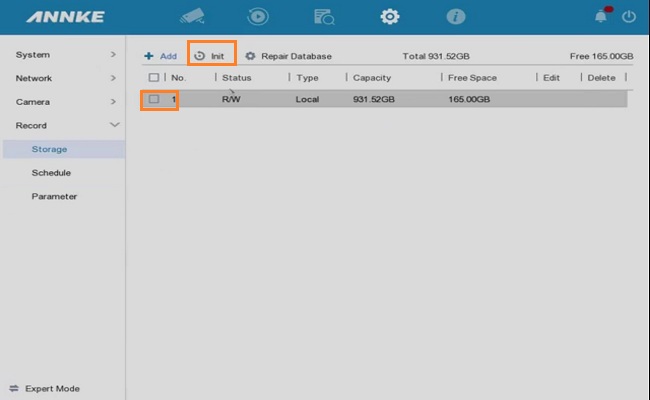

10. To initialize the HDD, click the Init button.

Note: Initialization will remove all the data saved in the HDD.

11. Click Next to enter the IP Camera Management window.


12. Add the IP camera. (If you got the external to add into the DVR)

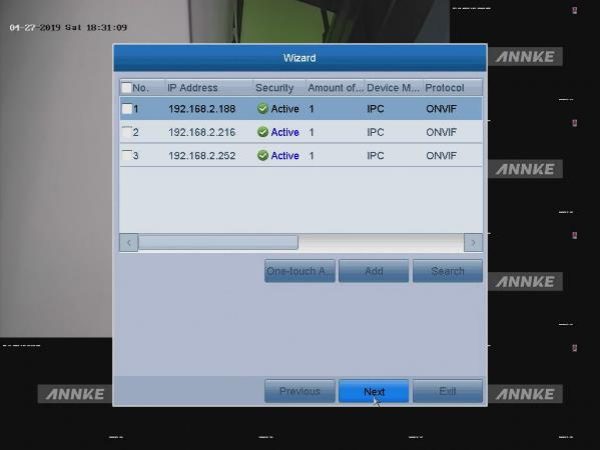

(1) Click
Search to search the online IP Camera.

(2) Click
Add to add the camera.


13. Click
Next button after finishing IP Camera settings, then enter the Record Settings window.

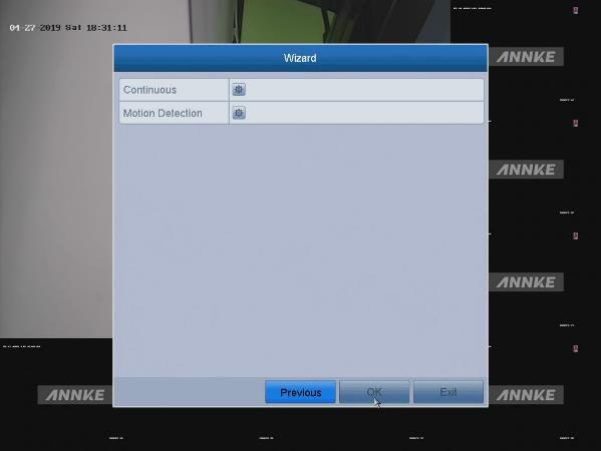

14. Click
setting_button.png, and you can enable the Continuous recording or Motion Detection recording for all channels of the device.


15. Click

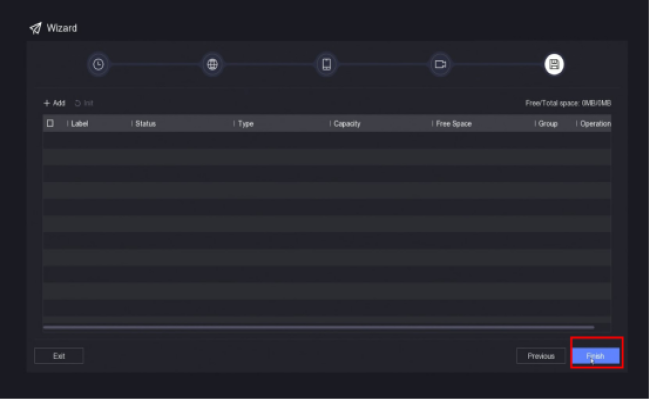

OK to complete the wizard settings.



Setup Wizard on Annke DVR

Read Also : Camius Recorder setup guide

-How to Finish the Setup Wizard

Introduction:

The setup wizard can help the user preconfigure the NVR. In this article, we will show you how to finish all the procedures.



Steps:

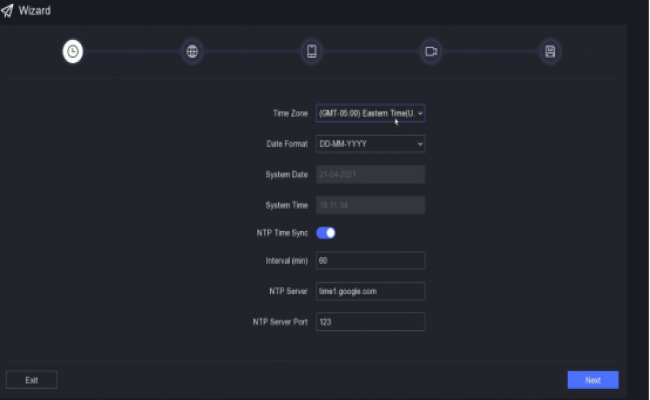

1. Fill in the correct time . Then click ‘Next‘.


2. Enable ‘DHCP‘ and ‘Auto Obtain DNS‘. Then click ‘Apply‘.

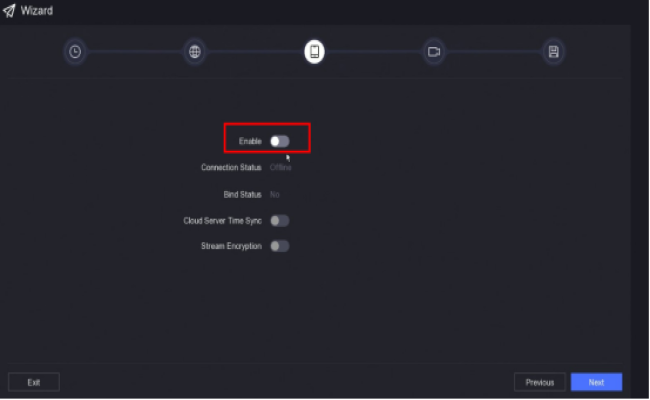

3. Enable ‘P2P network connection‘. Then click ‘Next‘.

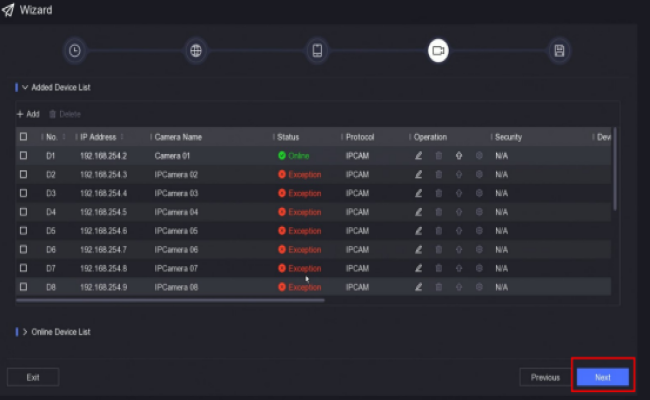

4. If the cameras are connected to the NVR, the ‘Status‘ will be ‘Online‘. Please click ‘Next‘.


5. If the HDD is connected to the NVR, the NVR will display the HDD information. Please click ‘Finish‘.


If you have any other questions, please contact ANNKE technical support at support@annke.com by email.

If this article is helpful to you, please click the “helpful” button after you review it. Any comments would be appreciated.

.

How to Set Up 24 Hours Recording?

Purpose:
You could setup 24 hours recording for the system. Please make sure there is an internal hard disk drive before recording. Without the hard drive, the system can show live viewing, but can't record, playback either.

Steps:

1. Confirm hard drive was installed.
Newly installed hard drive needs formatting. Please

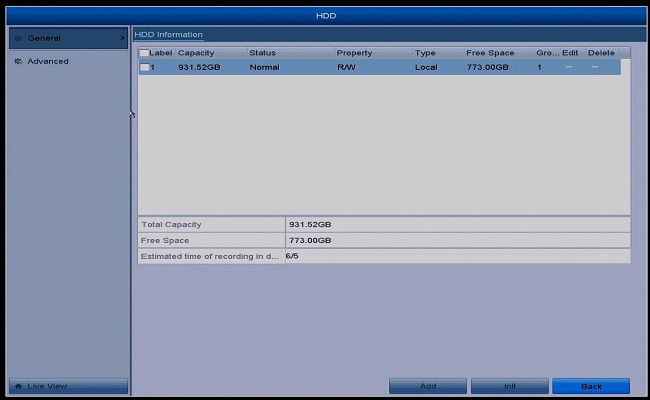

 format the hard drive like the picture below.

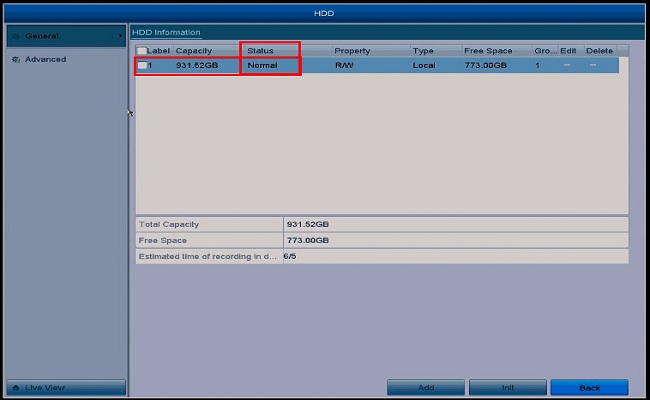

Please go to Main Menu—HDD—General—HDD Information to find this page.


2. Then please check if the status of HDD is normal or not. It should be normal so that the system could record.
If the status is abnormal or other status, please refer to this instruction to make it normal first.

https://help.annke.com/hc/en-us/articles/360000252901

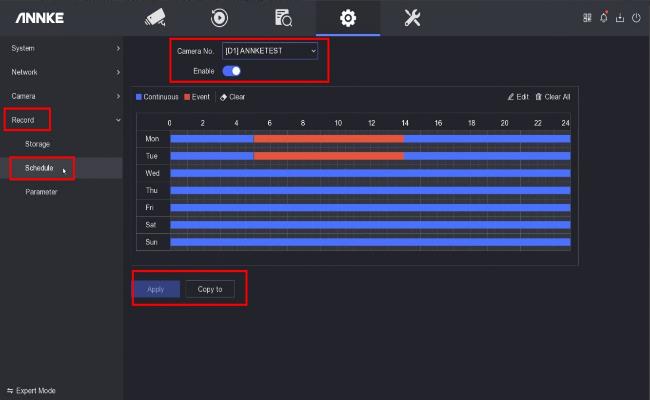

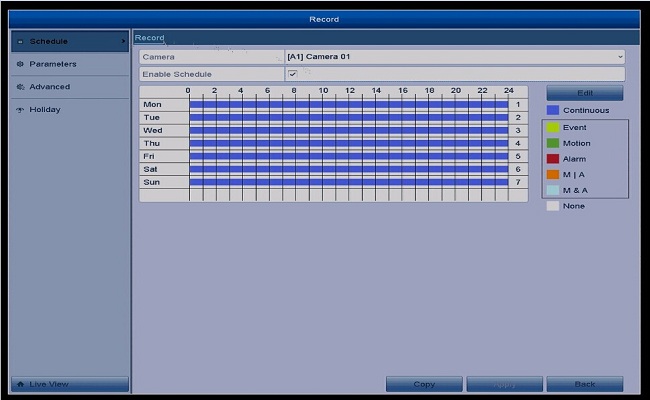

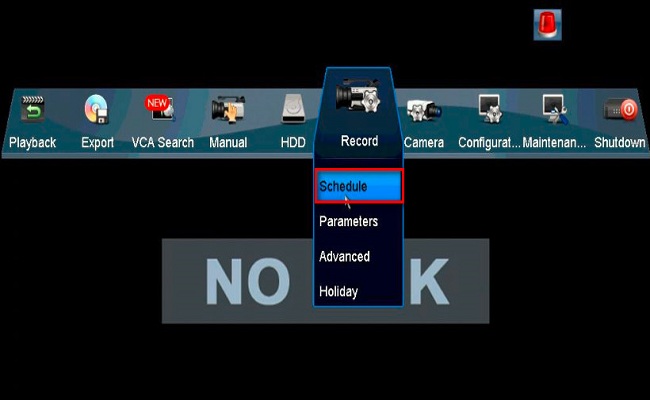

3. Go to Main Menu–Record–Schedule–Record to set up recording.

3.1 Please select the camera which you want to make a recording first.
3.2 Please
enable Schedule.


3.3 Please click Edit to setup the schedule.
Weekday: You need to setup the date one by one.

Please enable all day.

Type: Continuous.

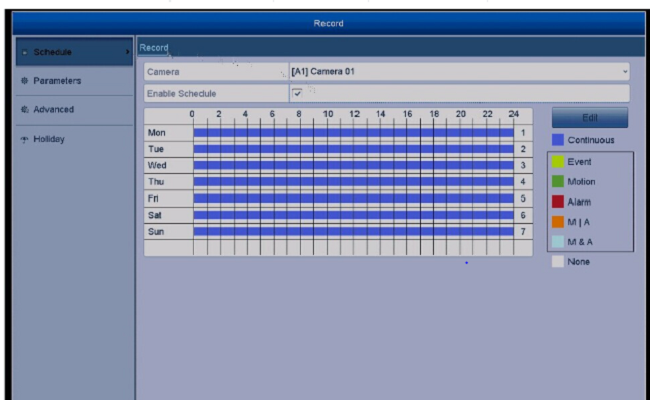

4. After that, the blue bar will be showed on the record page. That means you have setup 24 hours recording.


And this icon .  on the monitor also means you have already set up schedule recording.


.

How to Set up 24-Hour Recording?

Introduction:

To view the history recordings, it is required to set up recording schedule for the NVR. In this article, we will show you how to set up 24-hour recording.



Steps:

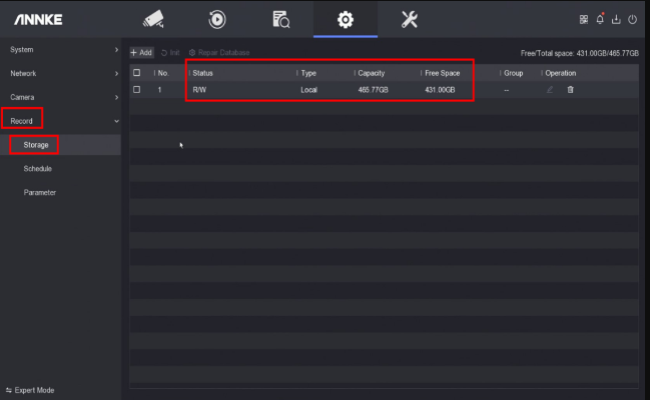

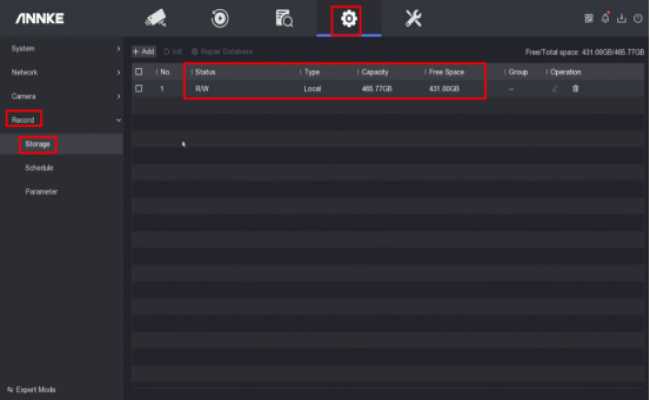

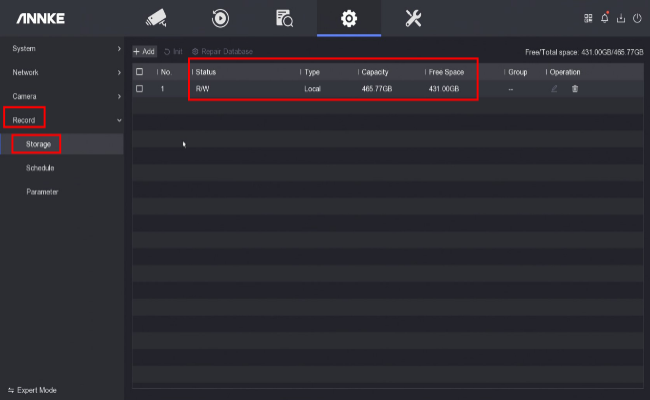

1. Access the system menu on the monitor and go to ‘Record→Storage‘ to check if the status of the hard drive is normal and the hard drive has capacity left.


If the status is abnormal or the capacity is full, select the hard drive and click ‘Init' to format the hard drive.

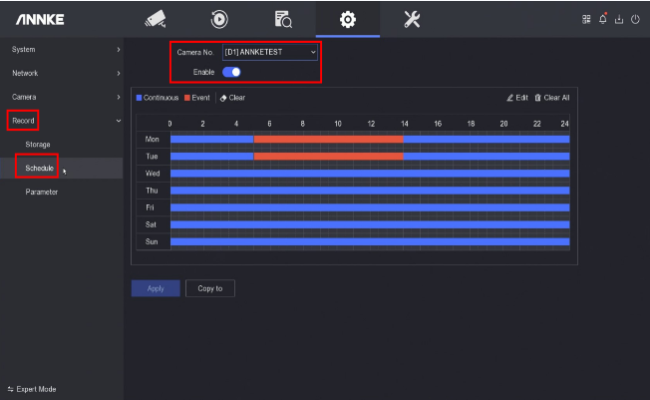

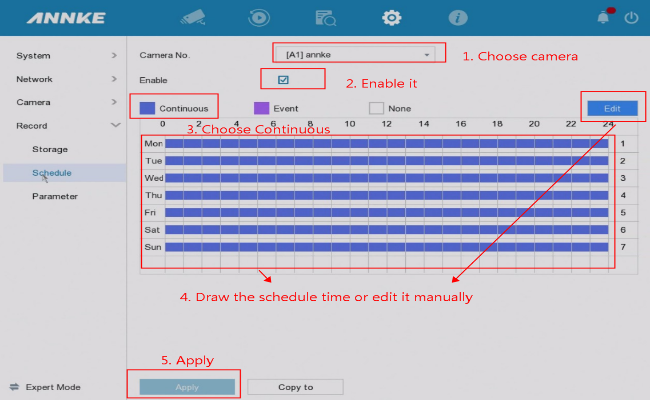

2. Go to ‘Record→Schedule‘ to set up the recording schedule.

3. Click ‘Copy To‘ to make sure other cameras have the same recording schedule.

4. Click ‘Apply‘ to save the settings.


Notice:

If you have any other questions, please contact ANNKE technical support at support@annke.com by email.

If this article is helpful to you, please click the “helpful” button after you review it. Any comments would be appreciated.

.

How to Setup the 24 Hours Recording?

Purpose: The article will introduce how to continuous recording. Please note that this instruction only works for the new series.

Before you start the setting:

Kindly please confirm that if you have installed the HDD inside the box? If not, Kindly please follow the guide here:
https://help.annke.com/hc/en-us/articles/360000252782

Steps:

1. Confirm HDD status.

When confirmed HDD is successfully installed HDD inside the box, you can check the HDD setting.
Please go to

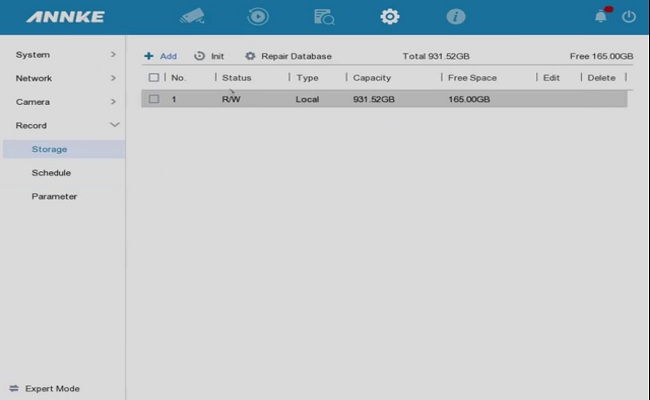

Setting–>Record–>Storage” to check the status. If the status shows “R/W”, that means the status is normal.
If the HDD status is “Error” or other messages, you can init it to make it work normally:

2. Set up Recording.

Please notice that the system default setting continues recording. If nothing changes you can directly leave it as default. Please go to Setting–>Record–>Schedule”:
Please directly enable the schedule first, Then click the
Continuous, then drag the time in the schedule.
You could also click the
“Edit” to select the recording time.

After that, the blue bar will be shown on the record page. That means you have set up the 24 hours recording.
.

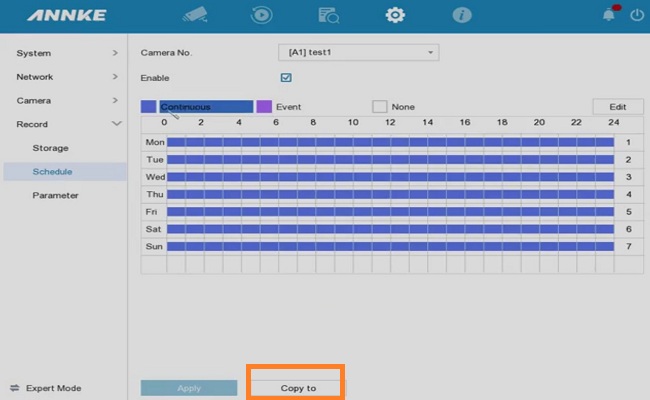

3. When finishing the setting in one channel, You can directly click
“Copy” to all channels.
You could also set up the camera one by one.

.

How to Set Up Motion Detection Recording?

Purpose: You could set up motion detection for your system.

Steps:

1. Please go to HDD–>General and make sure there is a hard drive in the recorder and the status is normal.

If the status is abnormal or another status, please refer to this instruction to make it normal first.
https://help.annke.com/hc/en-us/articles/360000252901

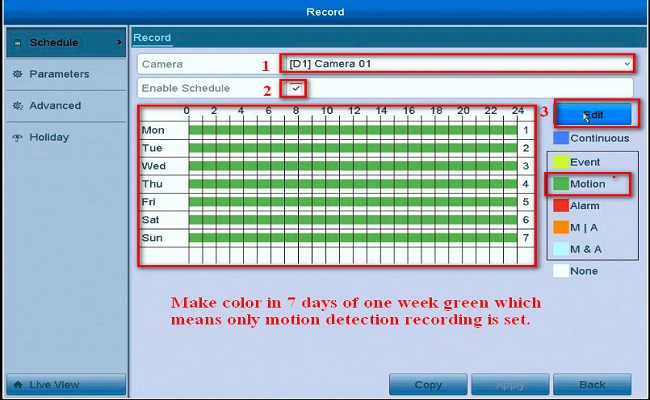

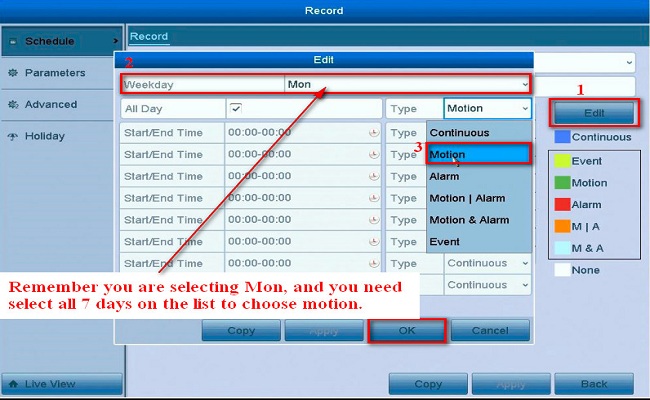

2. Go to Record–>Schedule to set up motion detection recording.

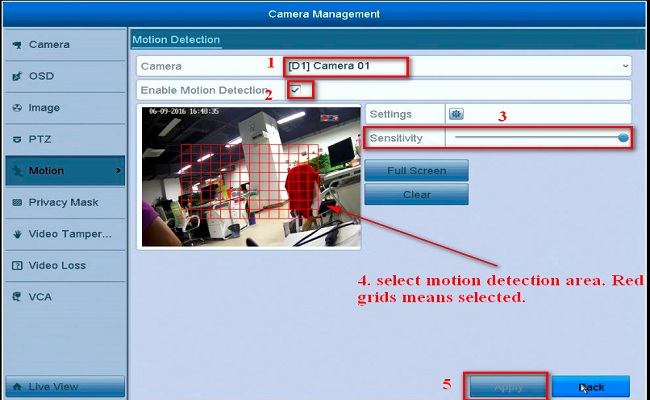

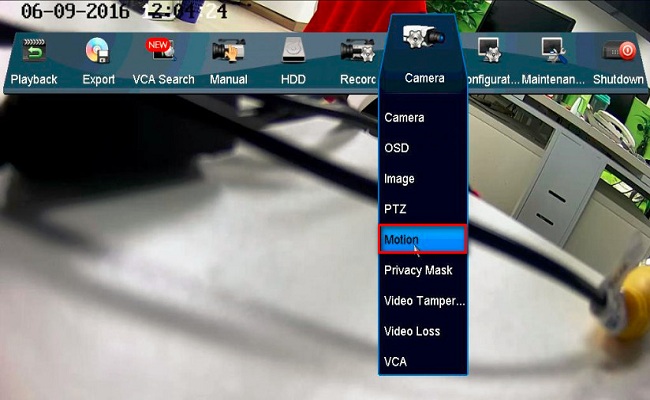

3. Go to Camera–>Motion to enable motion detection.




4. Go to Menu–>Playback to play motion detection recording.



.

How to Set Up Motion Detection Recording?

Introduction:

To view the motion recordings triggered by movements, it is required to set up a recording schedule for the NVR. In this article, we will show you how to set up motion detection recording.



Steps:

1. Access the system menu on the monitor and go to ‘Record→Storage‘ to check if the status of the hard drive is normal and the hard drive has capacity left.


If the status is abnormal or the capacity is full, select the hard drive and click ‘Init‘ to format the hard drive.

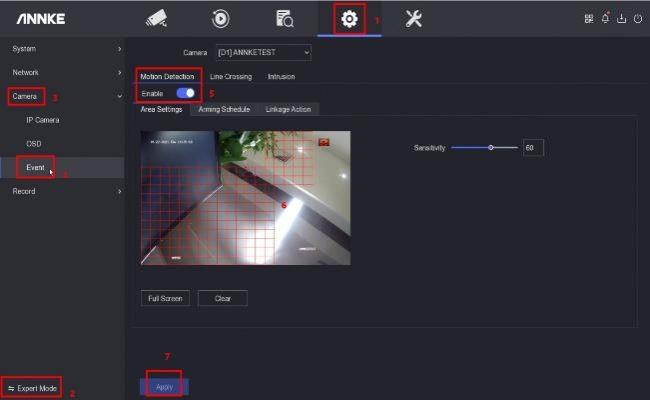

2. Go to ‘Camera→Event‘ to enable motion detection and set up the detection area.

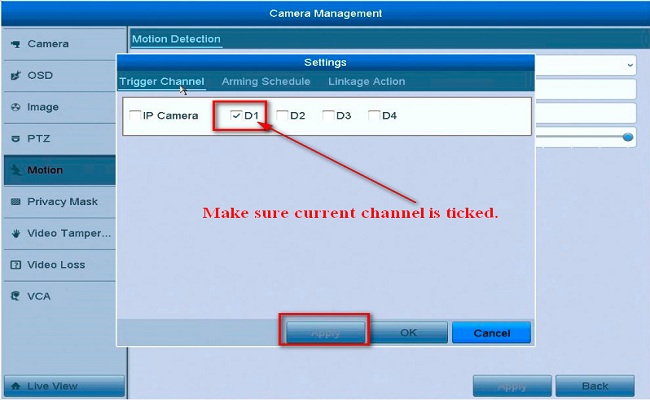

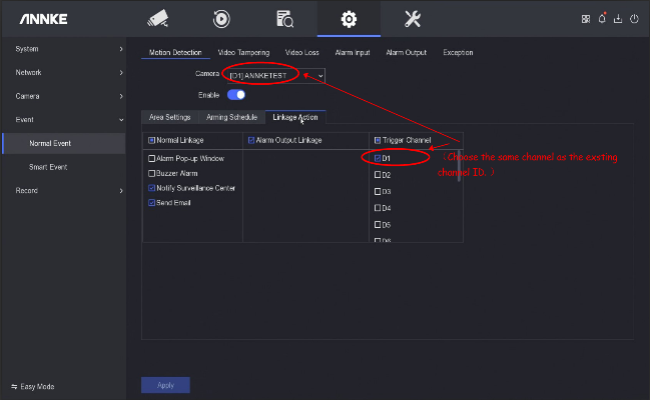

3. Go to the tab ‘Linkage Action‘ to tick on the same channel as the one being configued.


4. Go to ‘Record→Schedule‘ to set the motion recording schedule.


Note:

 Continuous means 24/7 hours recording schedule.
 Event means motion recording schedule.

3. Click ‘Apply‘ to save the configurations.

How to Setup Motion Detection Recording?

Purpose: The article will introduce how to set up motion detection recording. Please note that this instruction only works for the new series.

Before you start the setting:

Kindly please confirm that if you have installed the HDD inside the box? If not, Kindly please follow the guide here:
https://help.annke.com/hc/en-us/articles/360000252782

Steps:

1. Confirm HDD status.

When confirmed HDD is successfully installed HDD inside the box, you can check the HDD setting.
Please go to
Setting–>Record—>Storage” to check the status. If the status shows “R/W”, that means the status is normal.
If the HDD status is “error” or other messages, you can init it to make it work normally:

2. Motion Setting

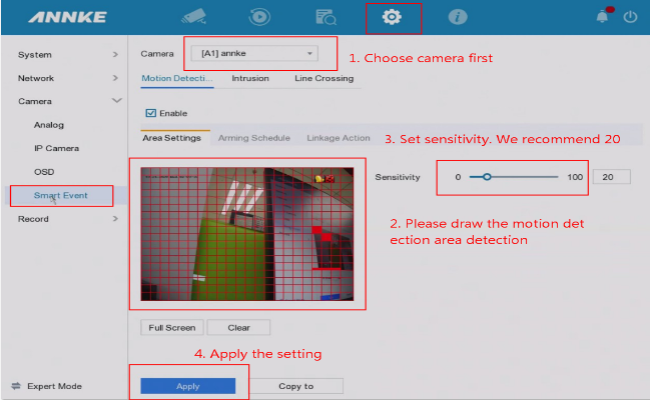

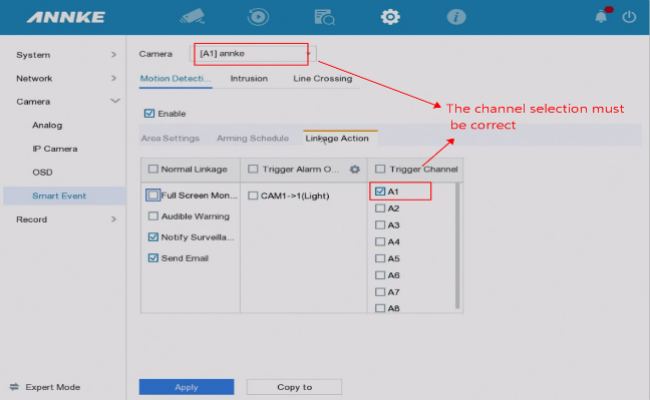

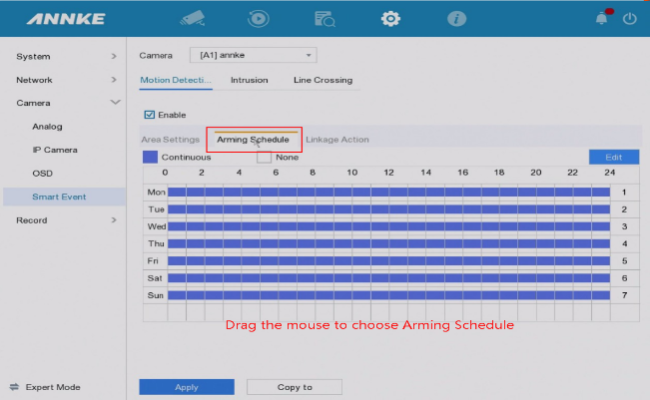

Please go to “Setting”-“Camera”-“Smart Event”. enable the alarm, then go to draw the motion detection area.
Go to the
 Arming Schedule to select the available time for the alarm.
Go to
 Linkage Action to check the available features that you would like to have.

3. Set up Recording.

Please notice that the system default setting is continuous recording. Please go to “Setting”-“Record”-“Schedule”

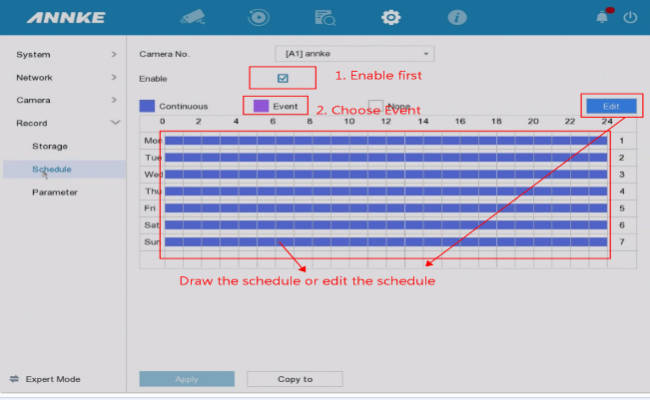

Please directly enable the schedule first, Then click the
Event, then drag the time in the schedule.
You could also click the
“Edit” to select the recording time.

After that, the purple bar will be shown on the record page. That means you have set up motion detection recording.
.

3. When finishing the setting in one channel, You can directly click
“copy” to all channels.
You could also set up the camera one by one.

.

Brief Introduction of Playback Interface on Annke DVR/NVR

Purpose:  You can learn about the interface and icon of Annke DVR/NVR.

.



Before you start:
.

 You should log in to your account.

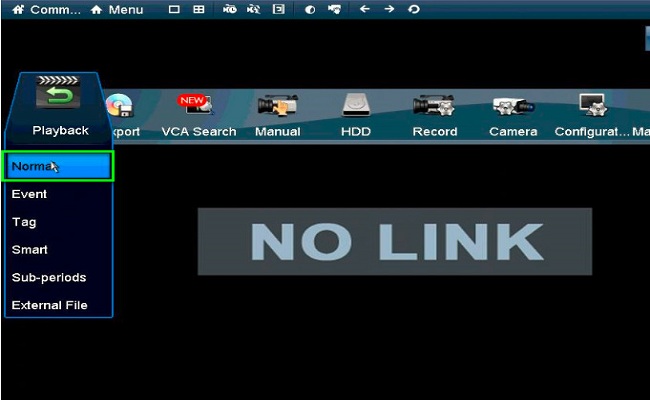

 Click Menu>Playback.

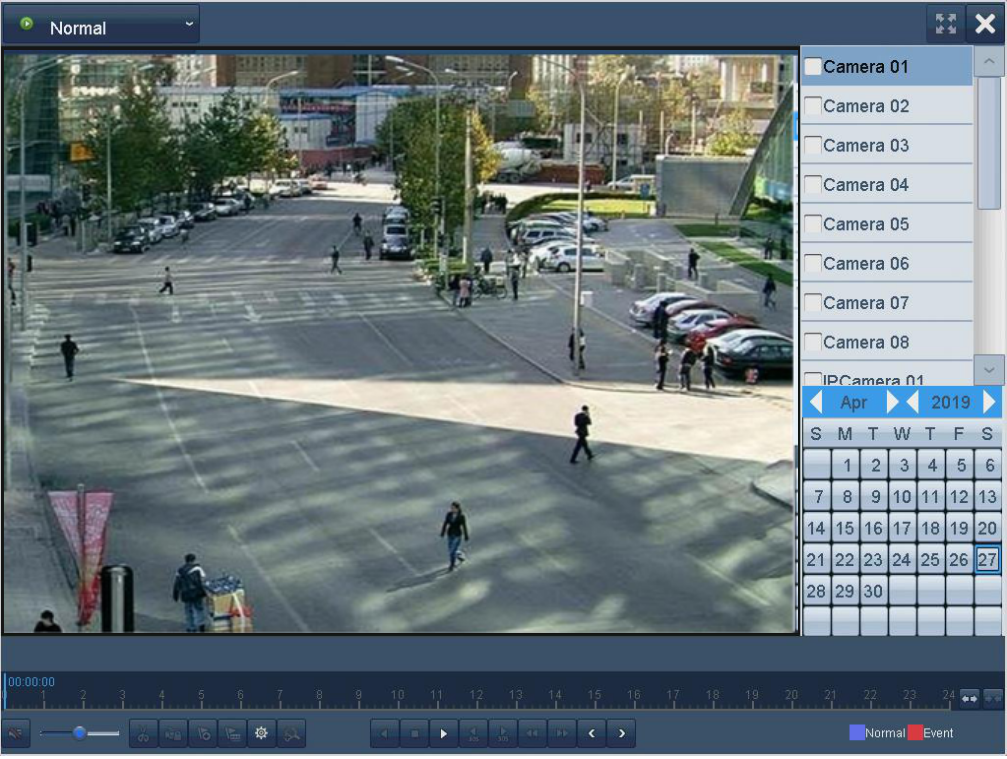

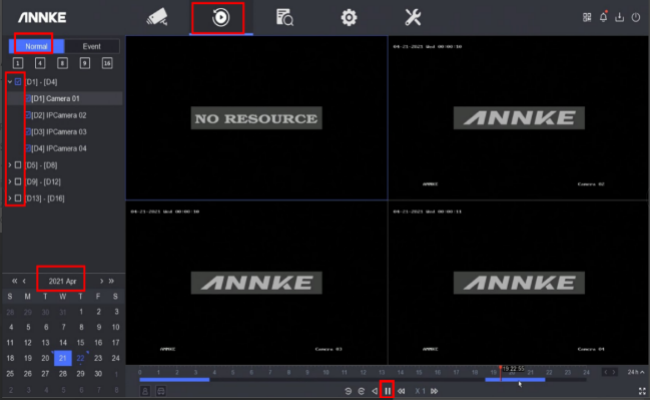

The Playback Interface as shown in the following picture:

1. Choose Types of Playback: You can playback the record videos via the below types (on the left top of interface).

 Normal (by time)
 Event
 Tag
 Smart

Note: NVR does not currently support the features.

Note: You can also  Playback record file(s) associated with channels after searching System Logs.

2. Click the channel(s) if you want to switch playback to another channel or execute simultaneous playback of multiple channels.

3. You can choose the cameras you want and select the calendar to playback.

4. The below pictures is the
Playback Toolbar:
.


.

• The start_time_and_end_time.jpg indicates the start time and end time of the record files.

•  Normal_recording.jpg represents normal recording  (manual or schedule);
Event_recording.jpg represents event recording (motion, alarm, motion | alarm, motion & alarm).

• Playback progress bar: use the mouse to click any point of the progress bar to locate special frames.



 5. The below figure is the detailed explanation of the Playback Toolbar:

Button

Operation

Button

Operation

Button

Operation


 Start/Stop clipping


Audio on/ Mute


30s forward


30s reverse


Add default tag


Add customized tag


Tag management


Speed down


Speed up


Previous day


Next day


Full Screen


Exit


Stop


Digital Zoom


Process bar


Video type


Lock file


Pause reverse play/
Reverse play/

Single-frame

reverse play


Pause Play/ Play/
Single-frame play





Notes:
.

 The Video Type Icon (on the left top of the interface) will change according to the type you have chosen.
 Digital Zoom: Use the mouse to draw a red rectangle and the image within it will be enlarged up to 16 times.
 Speed down: Use the button to change the video frame by frame to playback or reverse playback.

How to Playback Recordings on The Monitor?

Introduction:

When the user wants to view what cameras have recorded in the past, they can not find any recordings. We will show you how to playback recordings on the monitor in this article.



Steps:

1. Make sure the recording schedule has been set up. Please refer to the link below to find detailed instructions.

https://help.annke.com/hc/en-us/articles/4405177440281

2. Make sure the status of the hard drive is ‘R/W' and has free space left. Please go to ‘System Configurations→Record→Storage‘ to have a check.

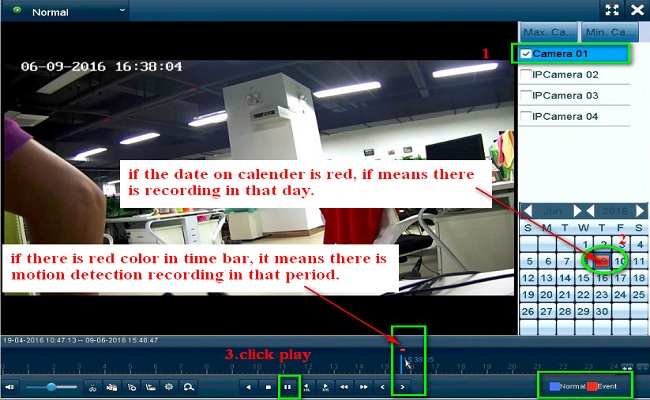

3. Access the system menu on the monitor and go to ‘Playback'. Then select playback channel, playback time, playback type, and click ‘Play‘.


If you would like to view a specific period of recordings, please go to ‘Smart Playback‘.


Backing Up the Video by Normal Search on ANNKE DVR/NVR

Purpose:

The record files can be back up to various devices, such as USB devices (USB flash drives, USB HDDs, USB writer), SATA writer.



Before you start:

 You should have installed storage devices like HDD before management.
 You should log in to your account.

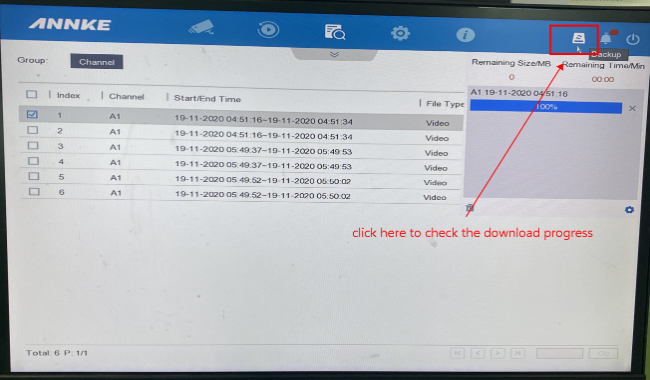

 Click Menu> Export> Normal, and enter into the normal export interface.

Steps:

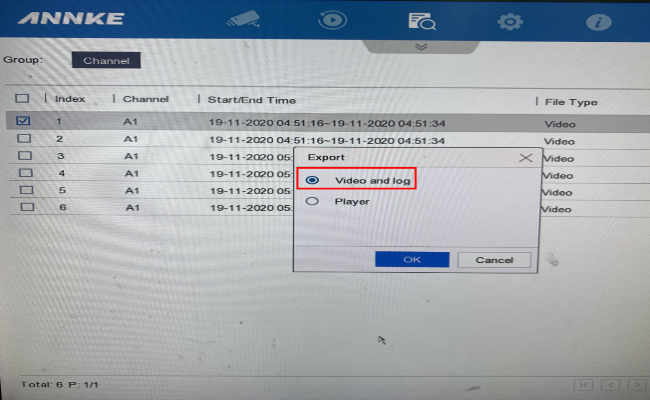

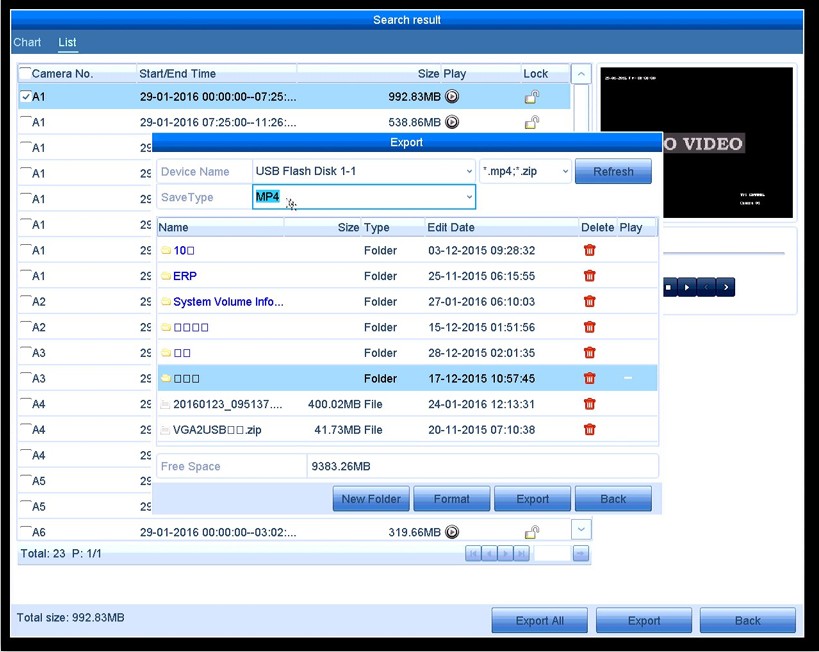

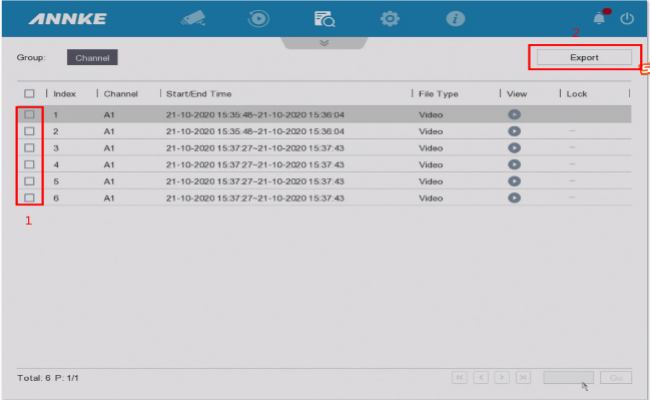

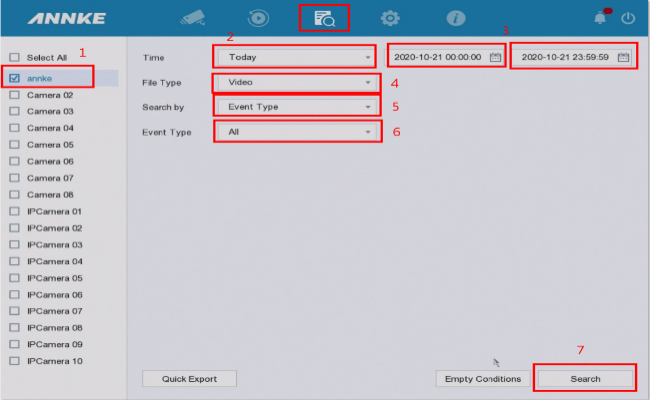

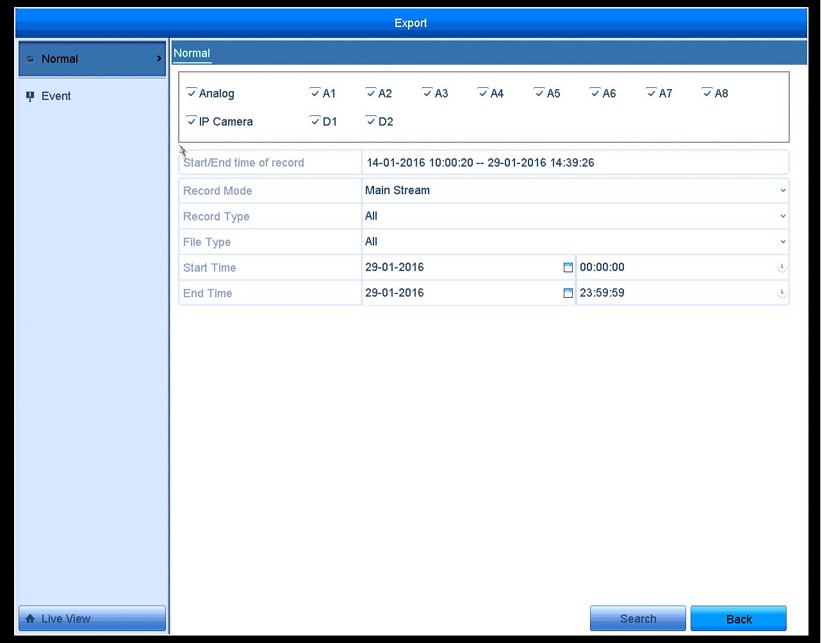

1. Select the cameras and set the search conditions, and then click the Search button to enter the search result interface.
.

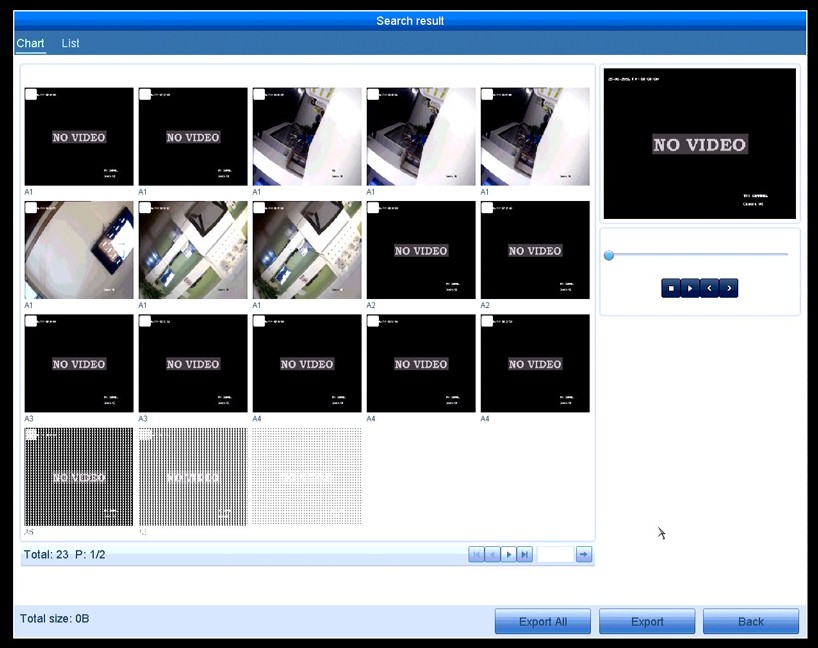

2. The matched video files are displayed in Chart or List-display mode.

 Click to play the record file if you want to check it.
 Check the checkbox before the video files you want to back up.


Note: The size of the currently selected files is displayed in the lower-left corner of the window.

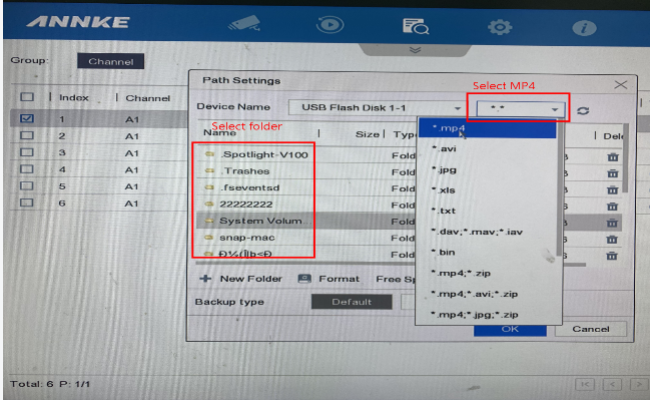

3. Select video files from the Chart or List to export, and click the button Export to enter the Export interface or click the Export All button to export all the recording files.


Notes: If the inserted USB device is not recognized:

 Click the Refresh button.
 Reconnect device.
 Check for compatibility from the vendor.

How to Export The Footage to a USB Stick/Drive?

Note: You need to format the USB stick to FAT32 on a computer in advance.

Steps:

1. Plug a USB stick or external hard drive into the USB port.

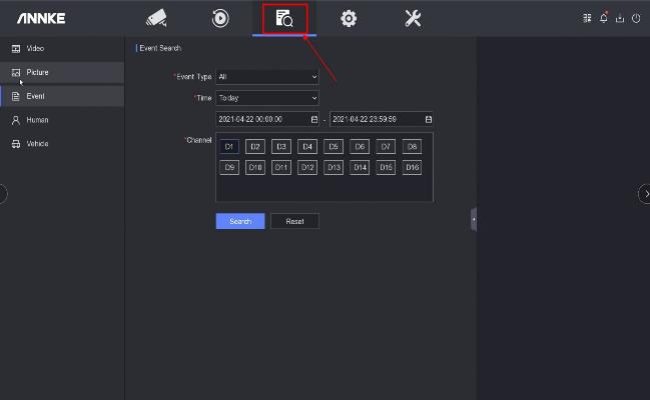

2. Go to Menu–>Search to choose the Channel, Date, Start time, End time,  File type, Search type, and Event type. Click to search the file.


3. When the result is found, choose the channel and record you want to back up. Click Export.


4. When your USB recognized by the system it will show the files on your USB stick, choose the Save Type and folder, click Video and log, Click OK to back up the recording.



5. The progress can be checked by clicking the  button in the right up corner.


6. After you finished export, you can play the video on your PC. We recommend the VLC player.

.

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.
