EasyVMS P6SLite PC Software Manual

Read More :

I, Device Add

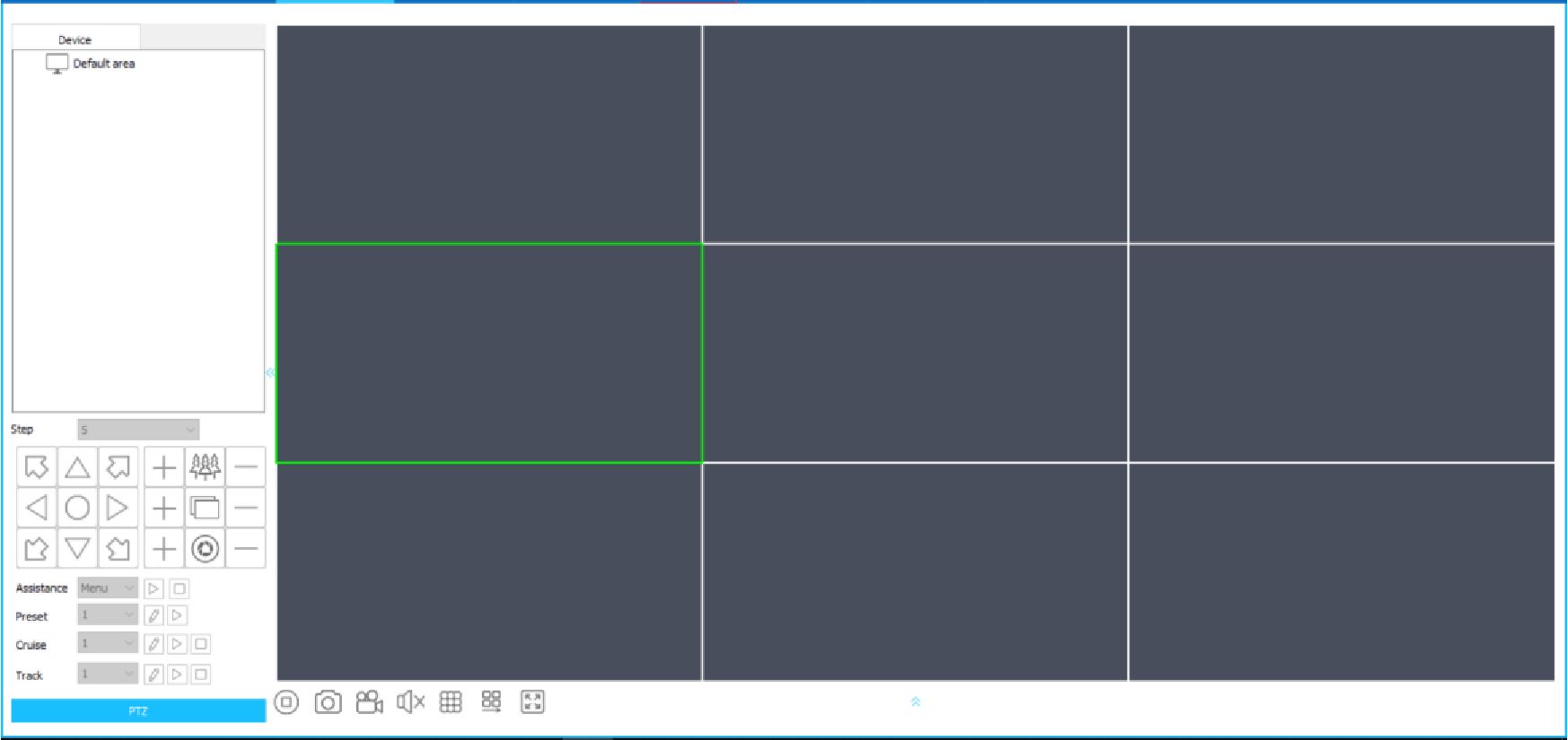

  1. Download the software and complete the installation, then run the software as shown below

word image 2725 1

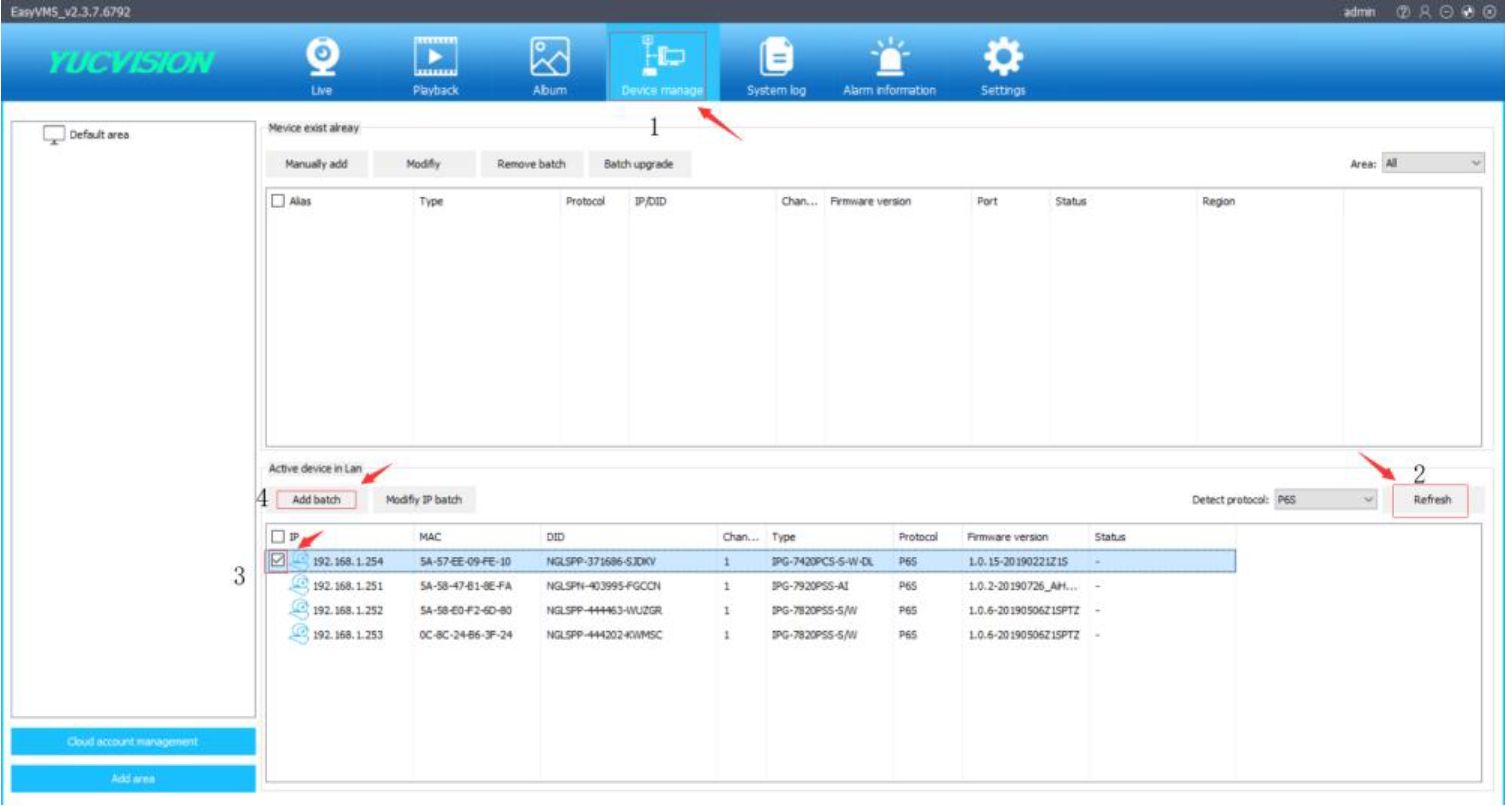

  1. Click on “Device mange” to add the device as shown below:

word image 2725 2

  1. Click “Refresh” to search for the device, then select the device in front of the device and click “Add batch” to complete

the device addition. If you use other brands of devices, you can select “Detect protocol”: ALL, the software can search out

All branded equipment.

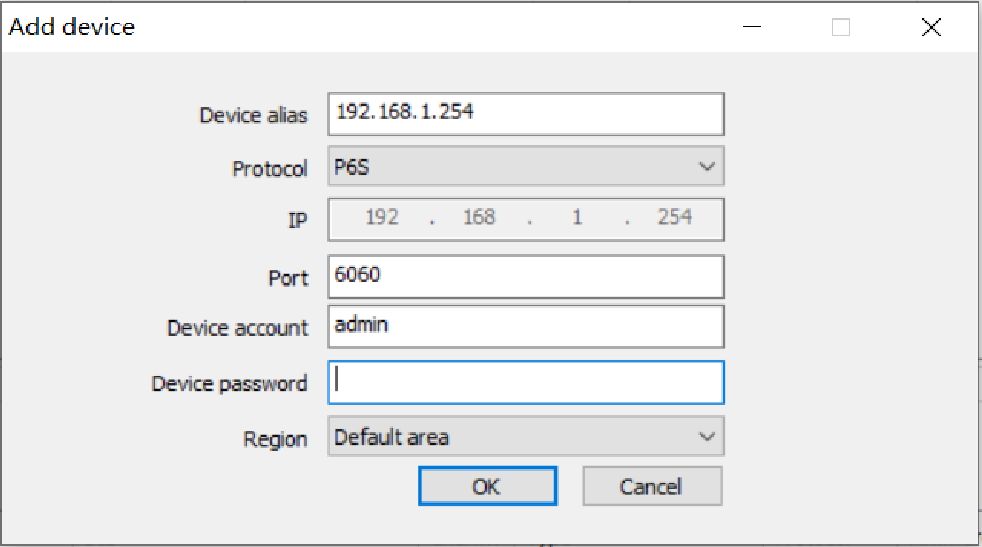

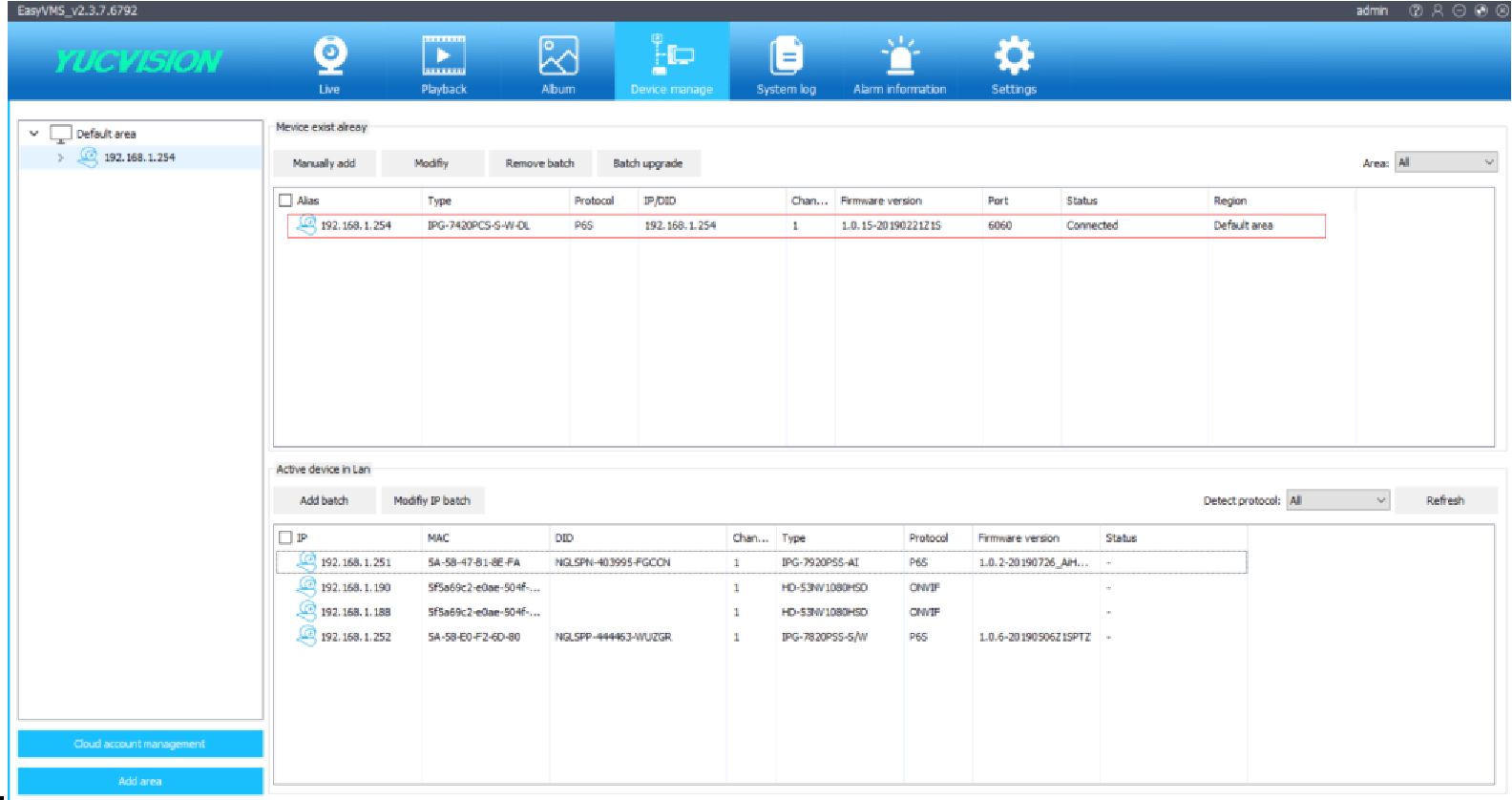

  1. Click on “Add batch” to bring up the Add Properties window:

Please enter the device password (the device default password is blank), then click “OK” to complete the device addition

word image 2725 3

word image 2725 4

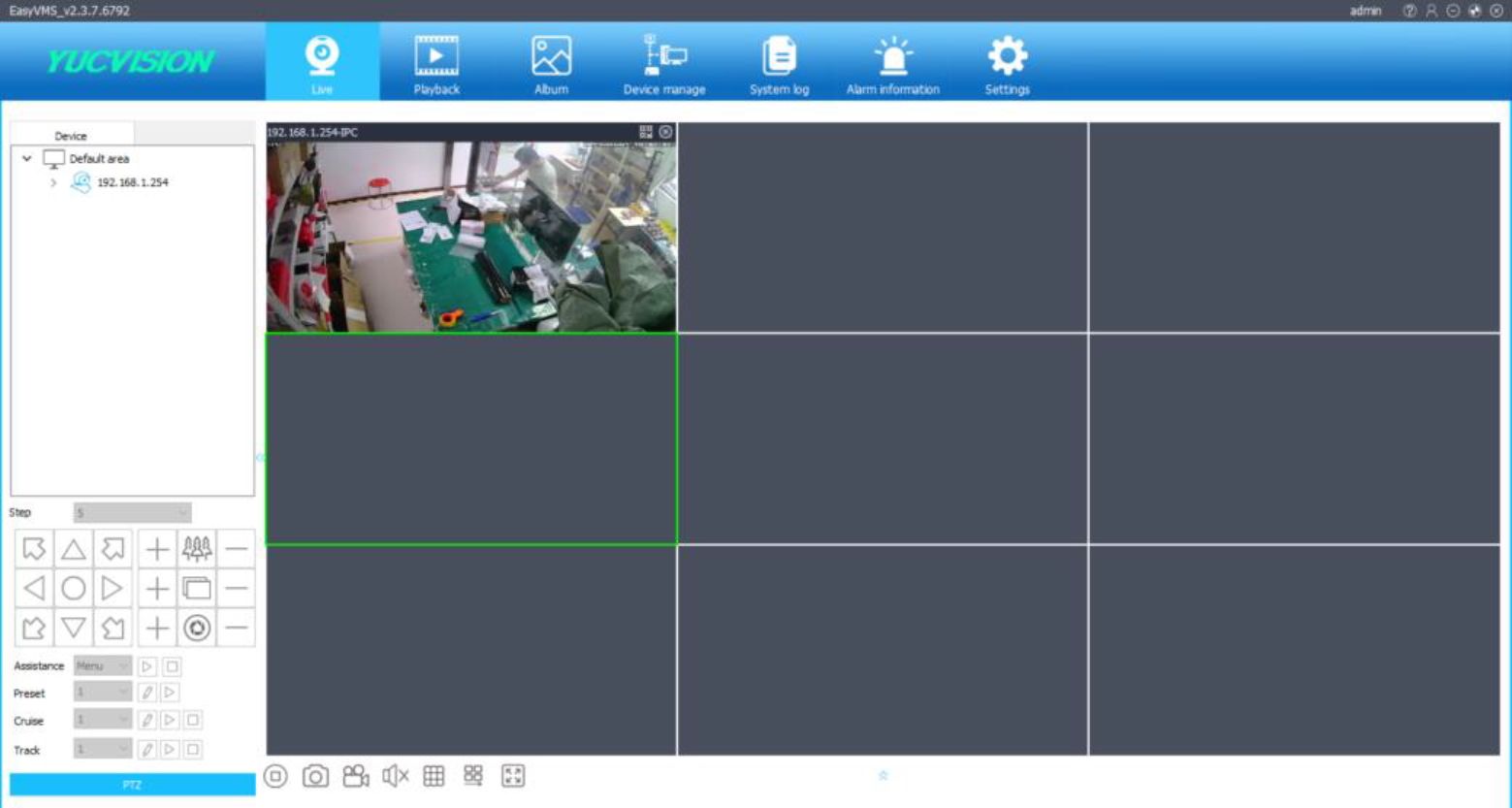

  1. Click the “Live” button to return to the preview interface:

After the device is added, you can now preview the device’s video normally.

word image 2725 5

  1. Parameter configuration of the device:
  2. Clicking the right mouse button on the preview interface will bring up the drop-down menu and select “Remote Config” to

enter the device configuration interface (only devices that support P6S protocol).

Close live

Audio on


Start record

Picture ratio >

Full screen

Definition >

Two-way audio


Remote Config


Remote Settings

x Camera Settings OSD Settings Image Settings

x Network Configuration Wired Network Settings Wireless Network Settings Port Configuration PPPOE Settings Mail Settings FTP Settings

x Codec Settings

Codec Parameters Audio Settings Record Settings

x Alarm Settings Moton

Audible alarm

v System Settings Time Settings Device Infbrmaton PTZ Settings Disk Information

User Management Timing Snapshot

v System Maintain Restore Default

Device Name

Device Model

Serial Number

Software Version

Alarm Input

Alarm Output

Voice Call

word image 2725 6

Apply Refresh

  1. Add devices over the WAN (P2P add mode)

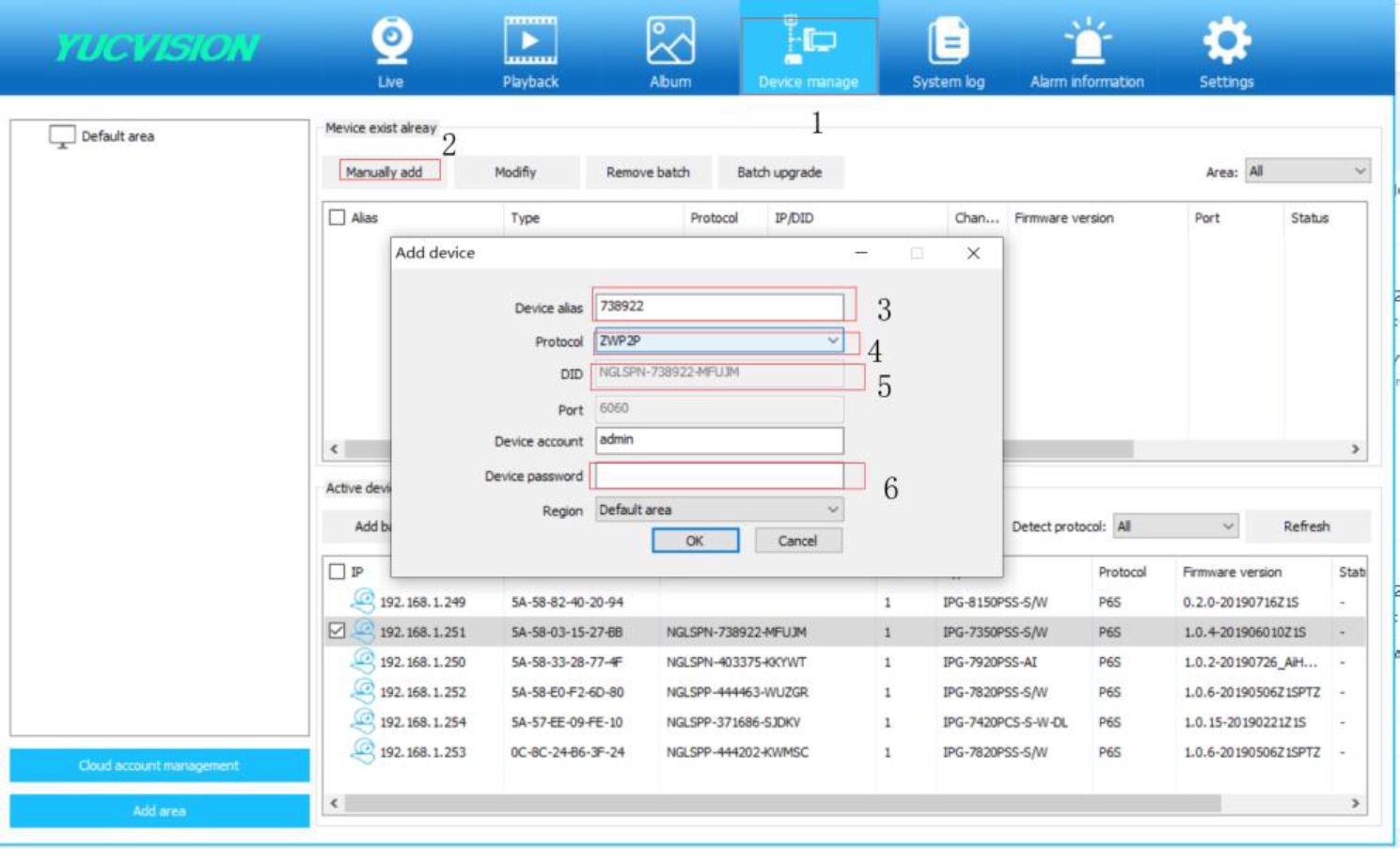

  2. Click “Device mange” to enter the manual add device mode.

word image 2725 7

As shown in the figure above, Devices alias can customize the device name, Protocol selects ZWP2P, DID is the device’s P2P DID number, you can find it on the camera’s body, Device password is your device login password, the default password is empty. Then click OK to complete the addition of the remote device.

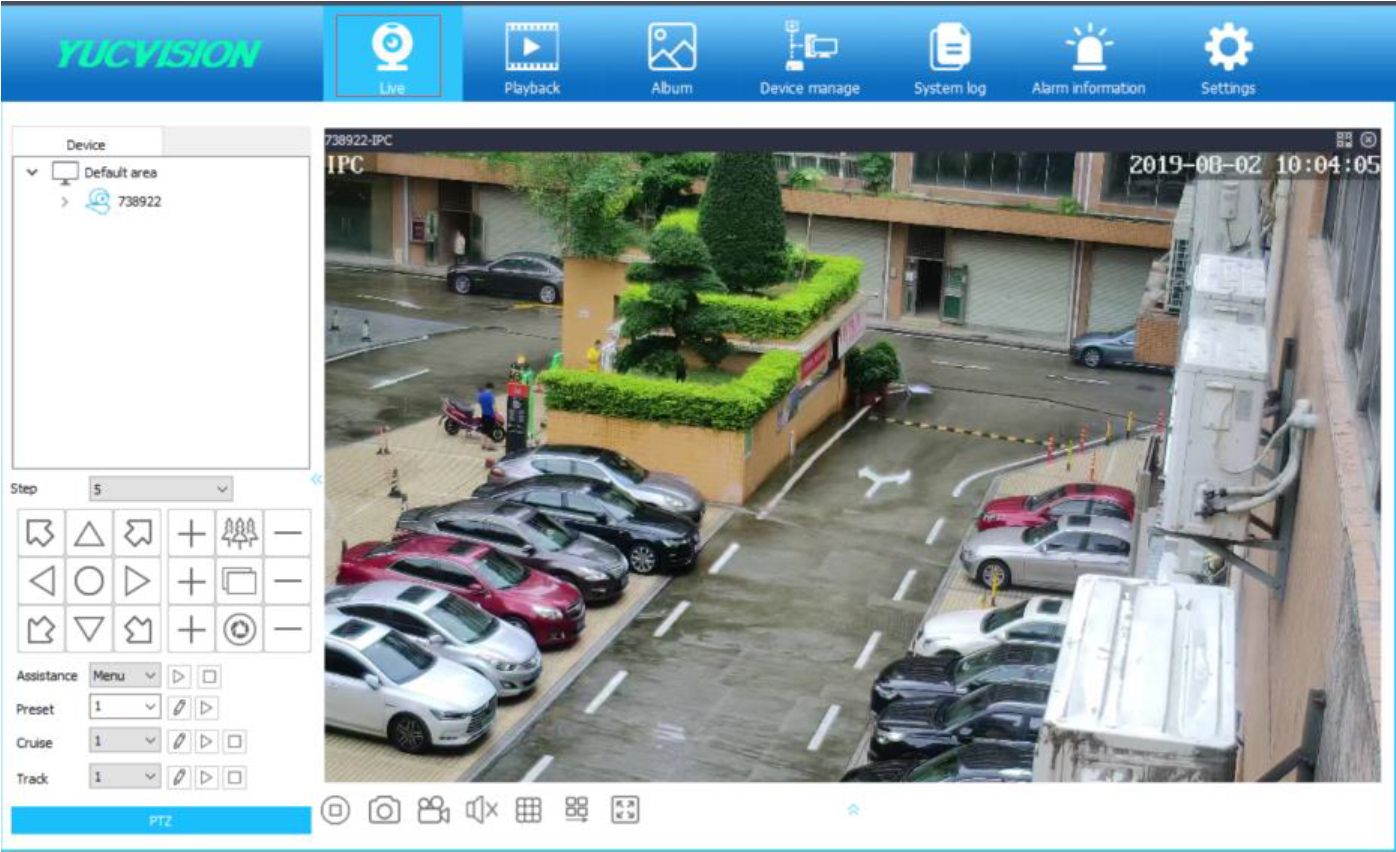

  1. After the addition is successful, click “Live” to enter the live preview interface.

word image 2725 8

  1. Software function introduction

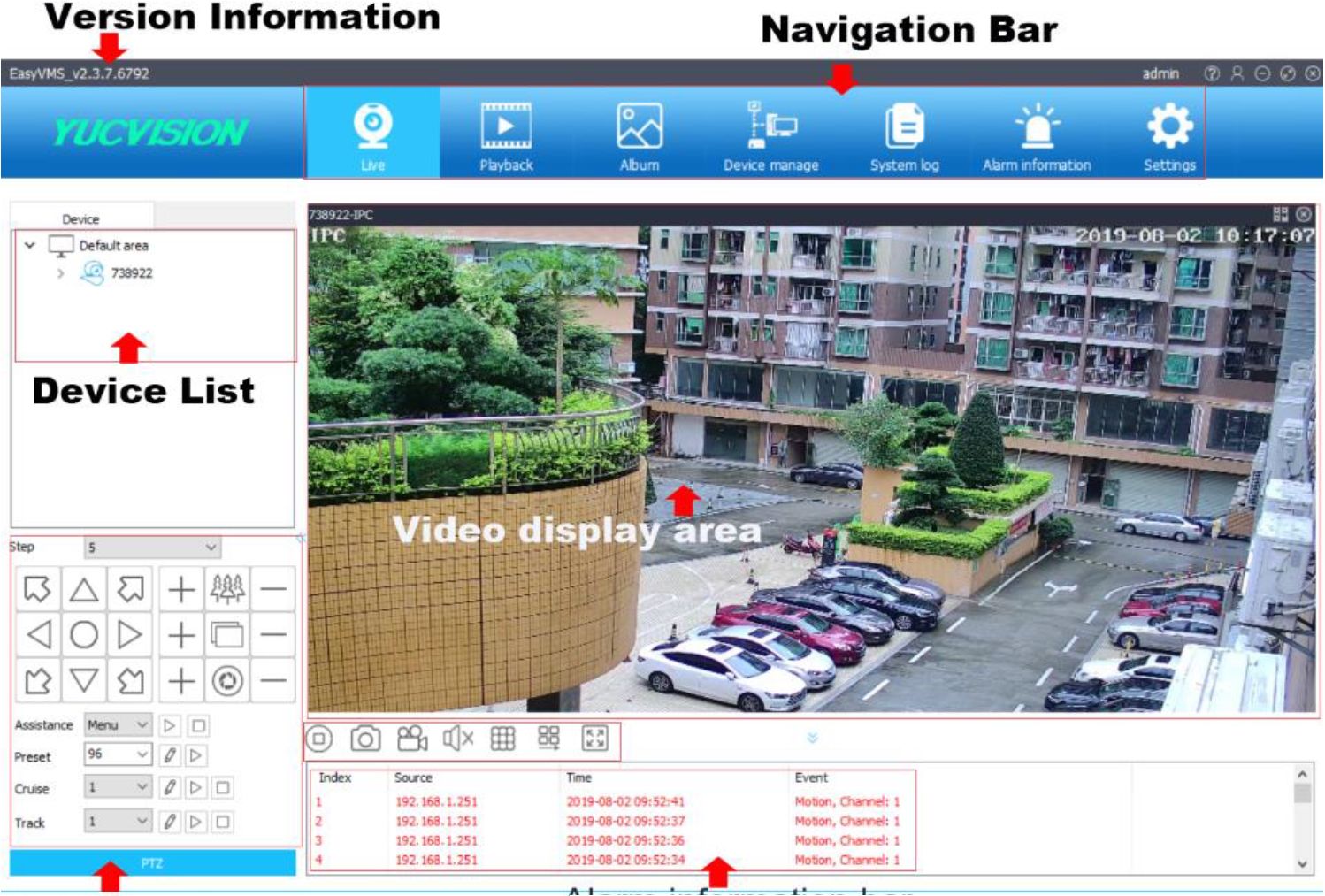

  2. ,Live Interface introduction:

Alarm information bar

PTZ control panel

word image 2725 9

  1. ,Device List: Add devices list

word image 2725 10

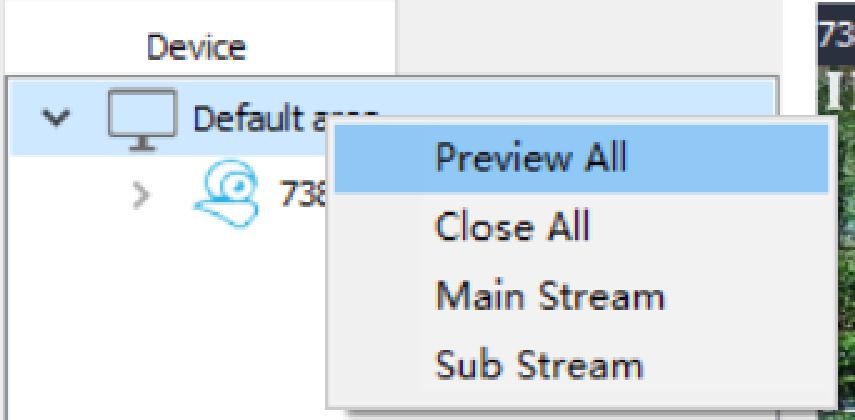

Click the right mouse button to bring up the dialog box.

Preview ALL: Preview all channel videos

Close ALL: Turn off all channel videos

Main Stream: All channels are displayed in the main stream mode

Sub Stream: All channels are displayed in substream mode

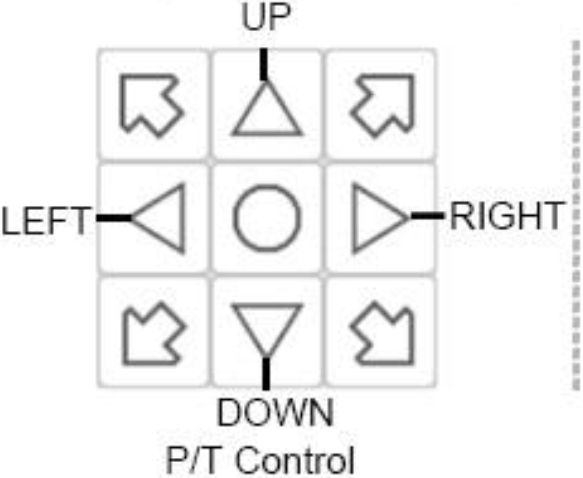

  1. ,PTZ control Panel:

Step 5 v < Camera rotation speed adjustment

word image 2725 11

word image 2725 12

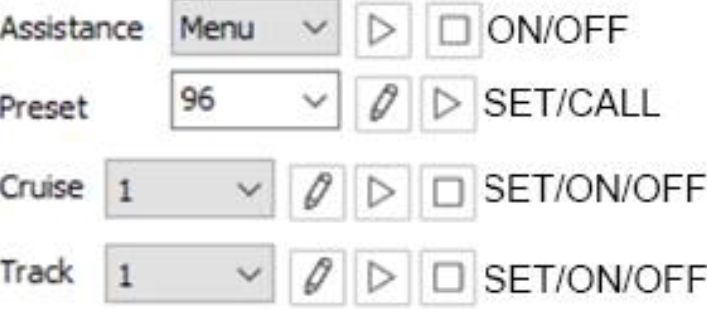

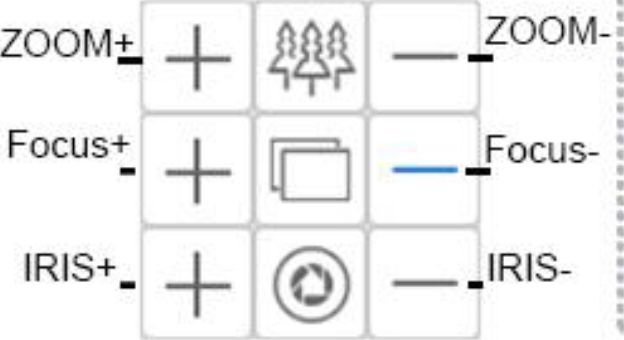

LENS Control Preset Control

word image 2725 13

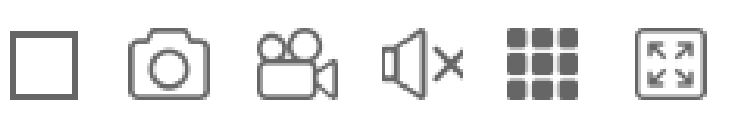

  1. , Preview action label:


word image 2725 14

is close full channels of preview.

word image 2725 15


word image 2725 16

is snapshot, capture picture to local to save.


word image 2725 17

is close full channels recording.


word image 2725 18

is close full channels audio.


word image 2725 19

is setting multiple video on screen, can setting single, 4/9/16/25/36/64 channel video for preview


word image 2725 20

is make video to full screen, press it make full screen, press ESC exit it.

  1. , Preview interface operation menu: Clicking the right mouse button on the preview interface will pop up a function selection dialog box, as shown below:
Close live —
Audio on Turn on audio
Snapshot — Manual Snapshot
Start record — Manual record
Picture ratio Image .Jisplay ratio Orignal — Orignal size
Full scr&cn Auto — Auto size
Full screen
Definition _i» ✓ HD — — HD mode
Voice intercom
Two-way audio— SD — SD mode
Zoom Digital zoom+/~ Clear— — Smooth mode
Remote Config — Config Camera setting

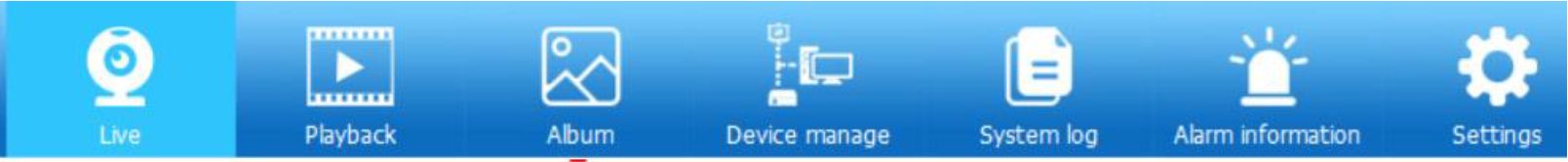

  1. , Navigation Bar:

word image 2725 21

Live preview Local/remote playback J, Camera mange System operation record

Local/remote picture/video view or download

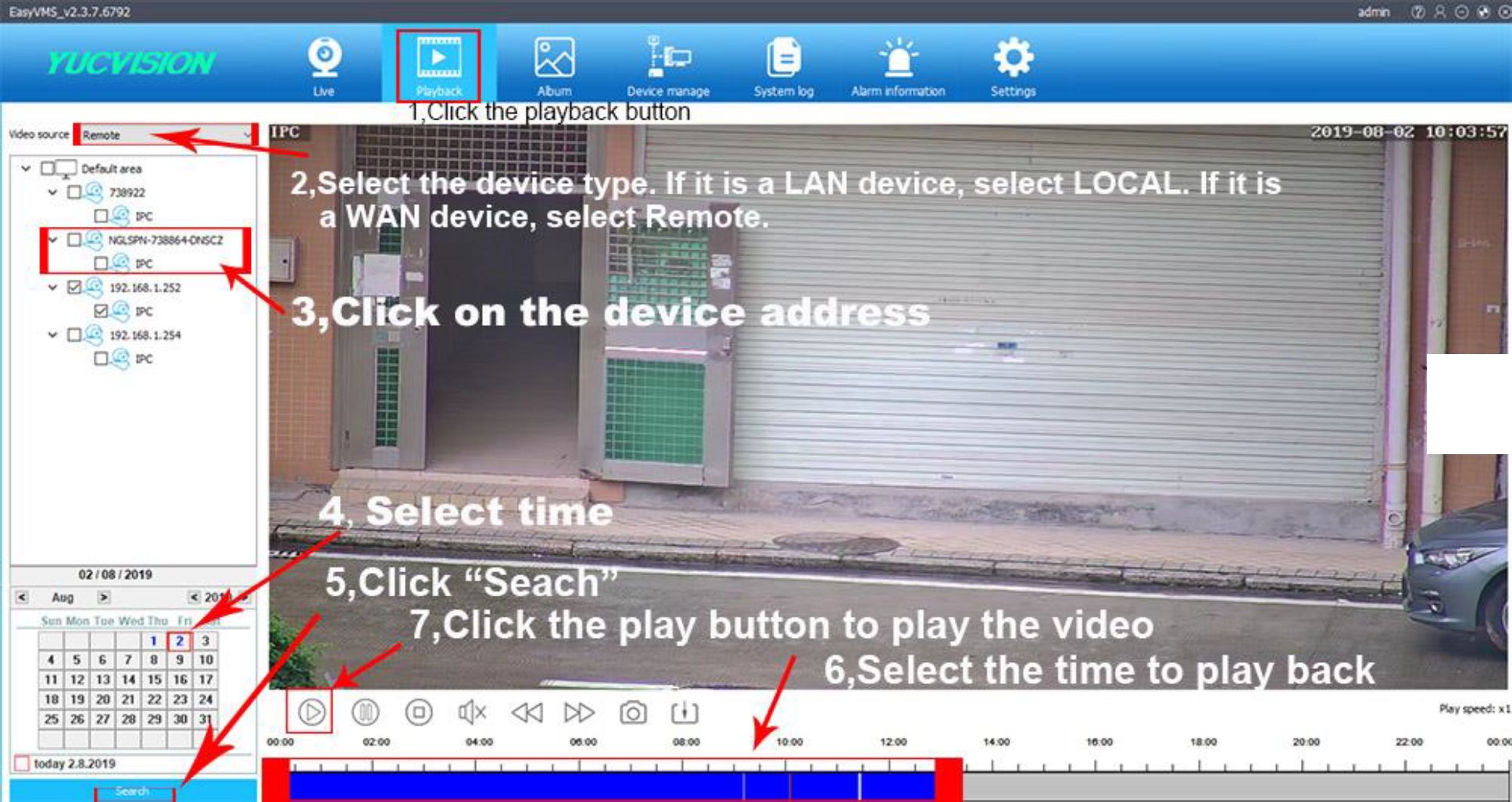

  1. ,Playback Control:

Playback icon introduction

(S) Playback


@ Stop

C(]x Sound ON/OFF

«] Slow playback, minimum support 1/4X speed [>£> Fast playback, maximum support 4X speed [Q] Manual capture image

f I ] Record files download

  1. ,Album Control:

word image 2725 22

word image 2725 23



T.201S08021412M prv






T.M 140802:40838 or.


T 20l»»WJ«03».orv

T_201008021354 32.prv



T_201008021358 $8 .prv

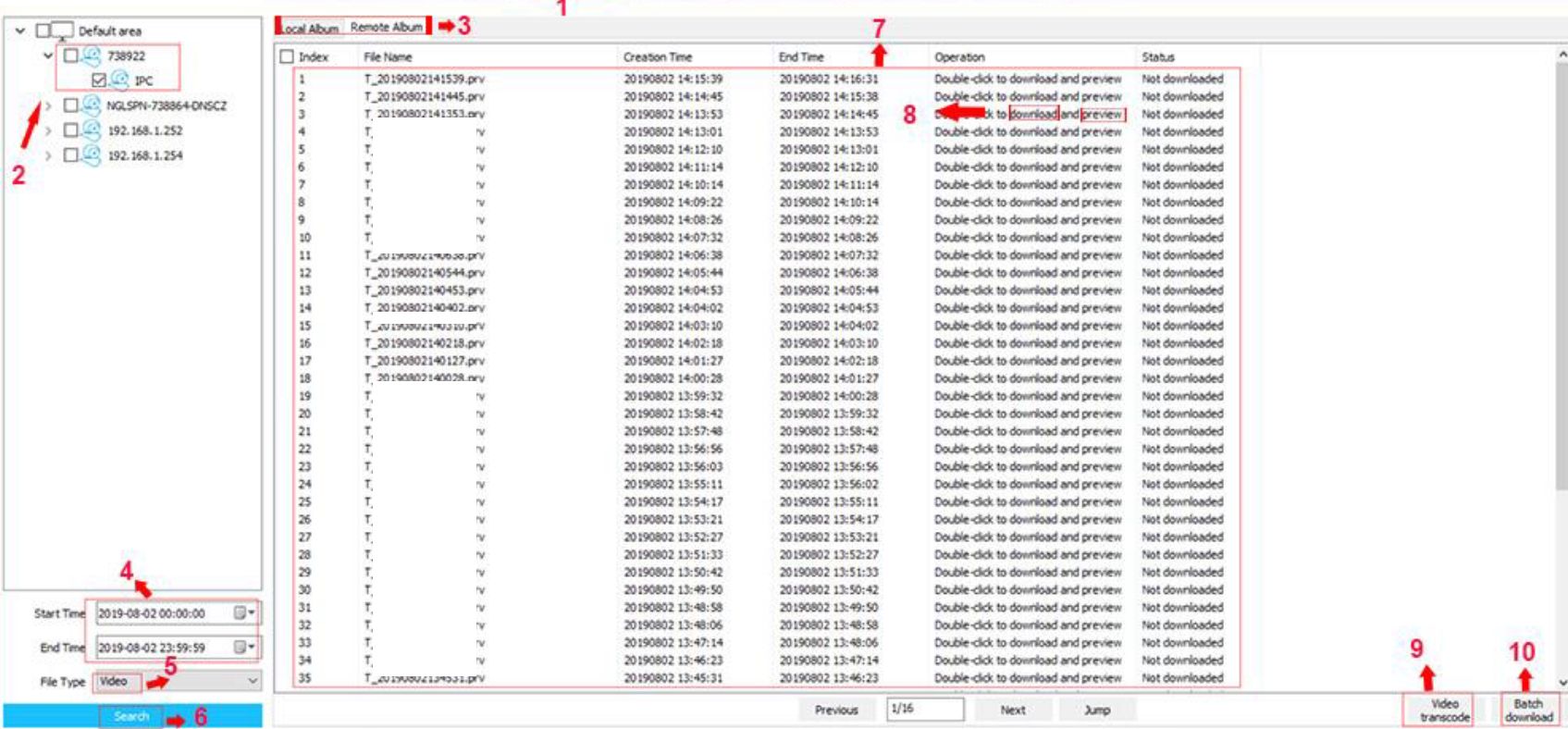

  1. Click the electronic “album” button to enter the electronic album interface.
  2. Select the device you want to operate
  3. Select local album/remote album (local album: picture or video on the computer side. Remote album: picture or video on

SD card)

  1. Select start time and End time
  2. Select File Type:Video/Image
  3. Click “Search”
  4. Search out Video/image file
  5. Double click to download/preview
  6. Convert video files in H.265 compressed format to video files in MP4 format. Can play on any player
  7. Batch selection video file download
  8. ,Device Manage:

word image 2725 24

word image 2725 25

word image 2725 26

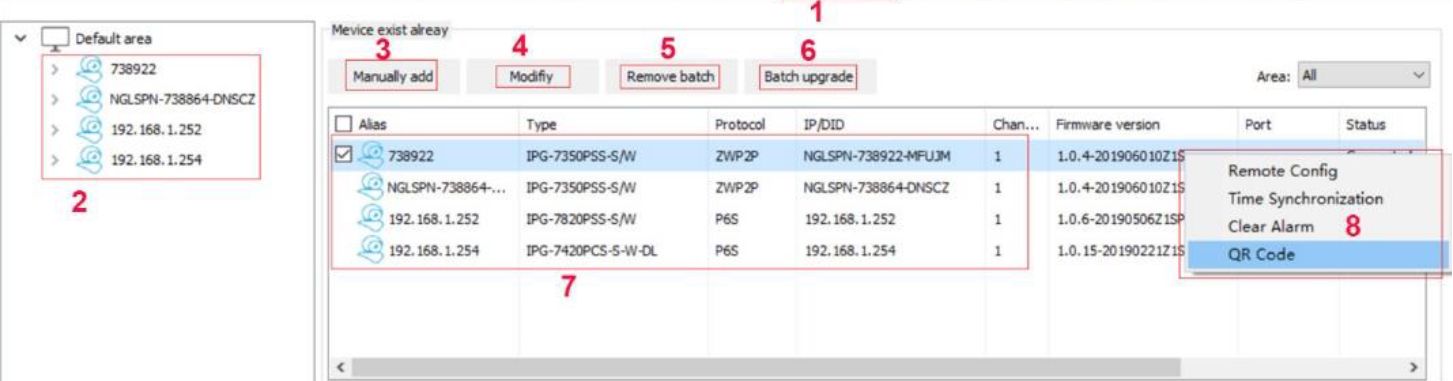

1 ,Click “Device manage” button to enter the electronic Device manage interface.

  1. added devices List
  2. Manual Add device: Devices in the LAN can be added by IP address, or remote devices can be added by P2P DID number.
  3. Modify the device name or password (for changing the password when the password is incorrectly filled)
  4. Delete added devices
  5. Device upgrade: for camera upgrade firmware
  6. Details of added Device
  7. right click on any device, a function dialog box will pop up, including: remote device configuration, device time and computer synchronization, clear alarm information and display device QR code

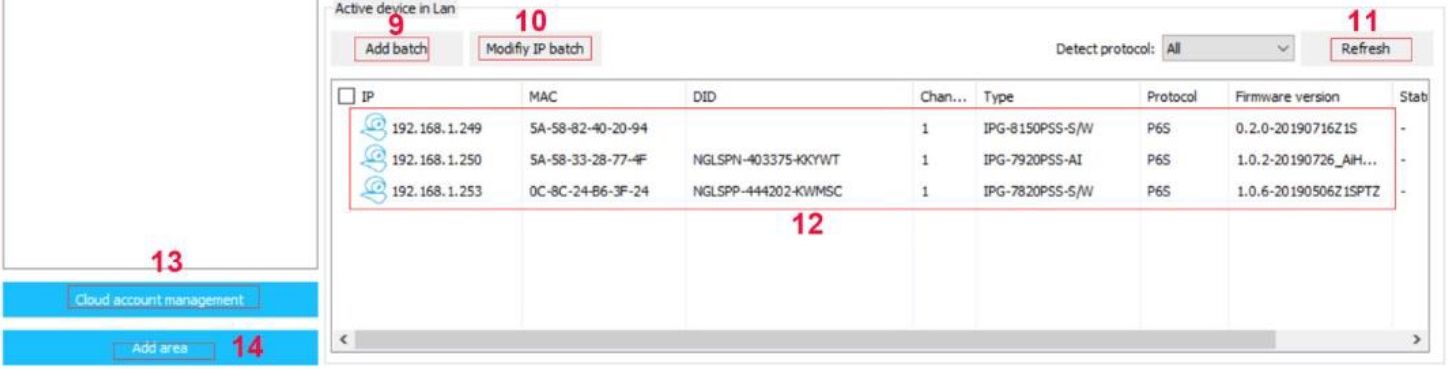

  8. Add a LAN device: Select the device that has been searched, then click this button to add the device
  9. Modify the IP address of the device that has been searched

11,Search LAN devices

word image 2725 27

  1. Display LAN device

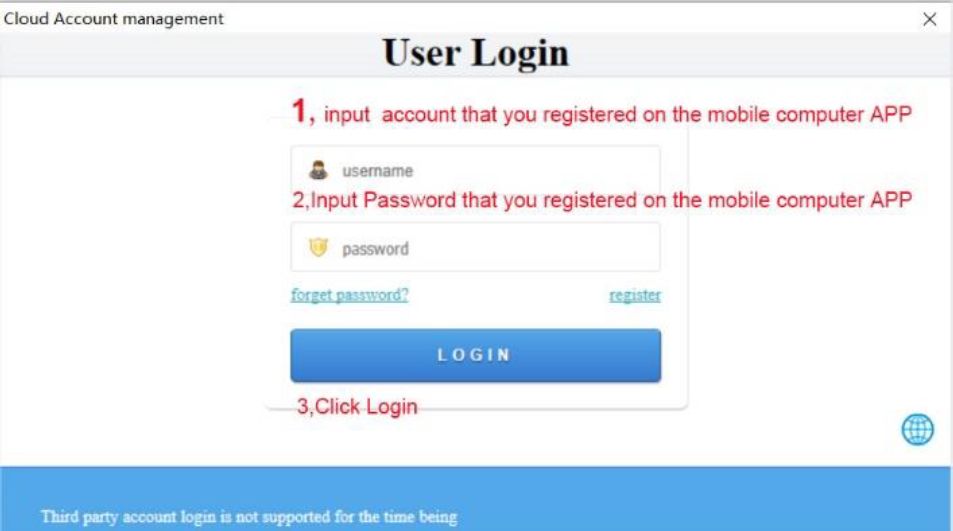

  2. Cloud account login button: You can log in software use the account that you registered on the mobile computer APP. All the devices on your account will be added to the computer software. Convenient for the management of the camera.

word image 2725 28

  1. Add area:If you have a lot of devices added to the software. You can add these devices into several areas to add. For example, in the United States, the camera is divided into an area, and the camera in the United Kingdom is divided into an area.

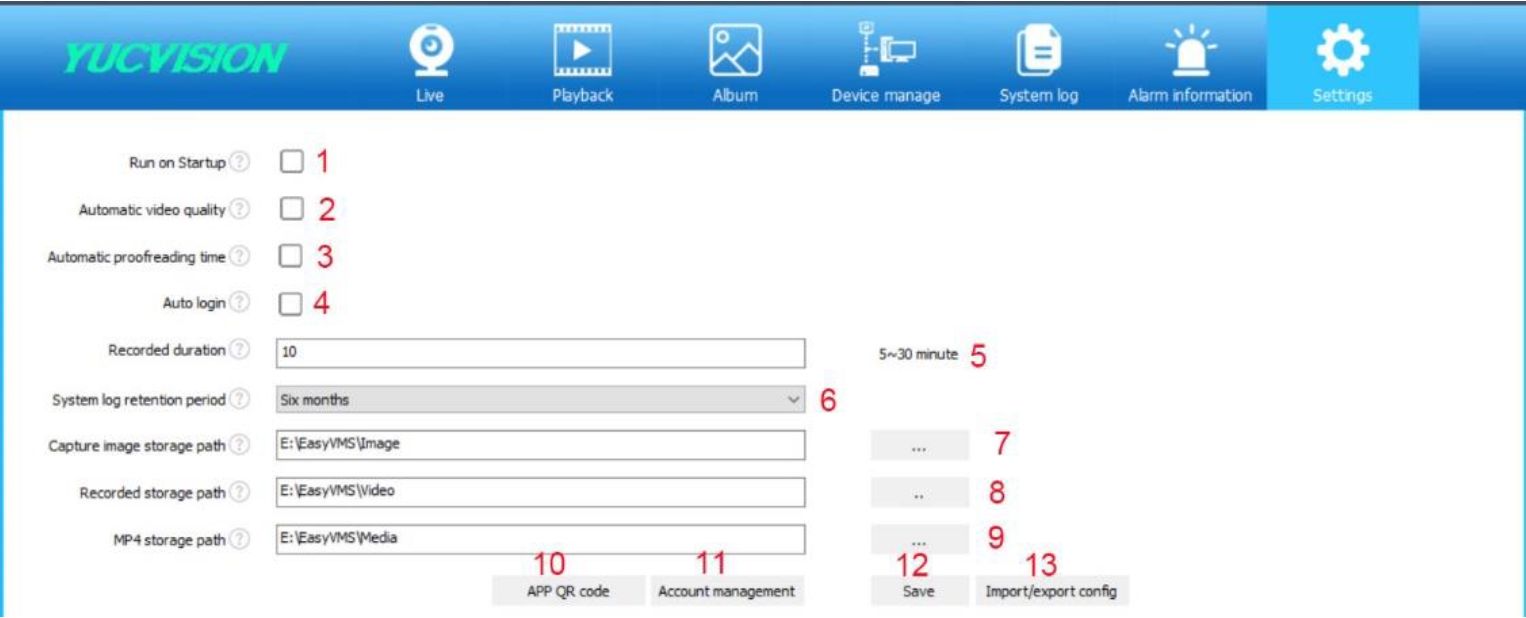

  2. ,Setting: Software system settings

word image 2725 29

  1. The software will start automatically when Windows OS starts successfully.
  2. Automatically adjust the screen resolution (single and four-screen are HD modes, other screens are clear modes
  3. Automatically synchronize device time with computer time
  4. The software will automatically search for the ONVIF protocol device and log in to the device (try to log in automatically using the user name and password of the User Management Center)
  5. Length of each recording video file
  6. System log retention period
  7. Storage path of Manual capture image
  8. Storage path of Manual recorded
  9. Storage path of convert PRV format to MP4G format
  10. Click “APP QR Code” button to display the mobile phone APP to download the QR code.
  11. Account management:manage computer client software login user and password
  12. Save all config
  13. Import and export software configuration: All configuration information of the software, including all added devices.
  14. Remote parameter configuration:

1, Camera Settings

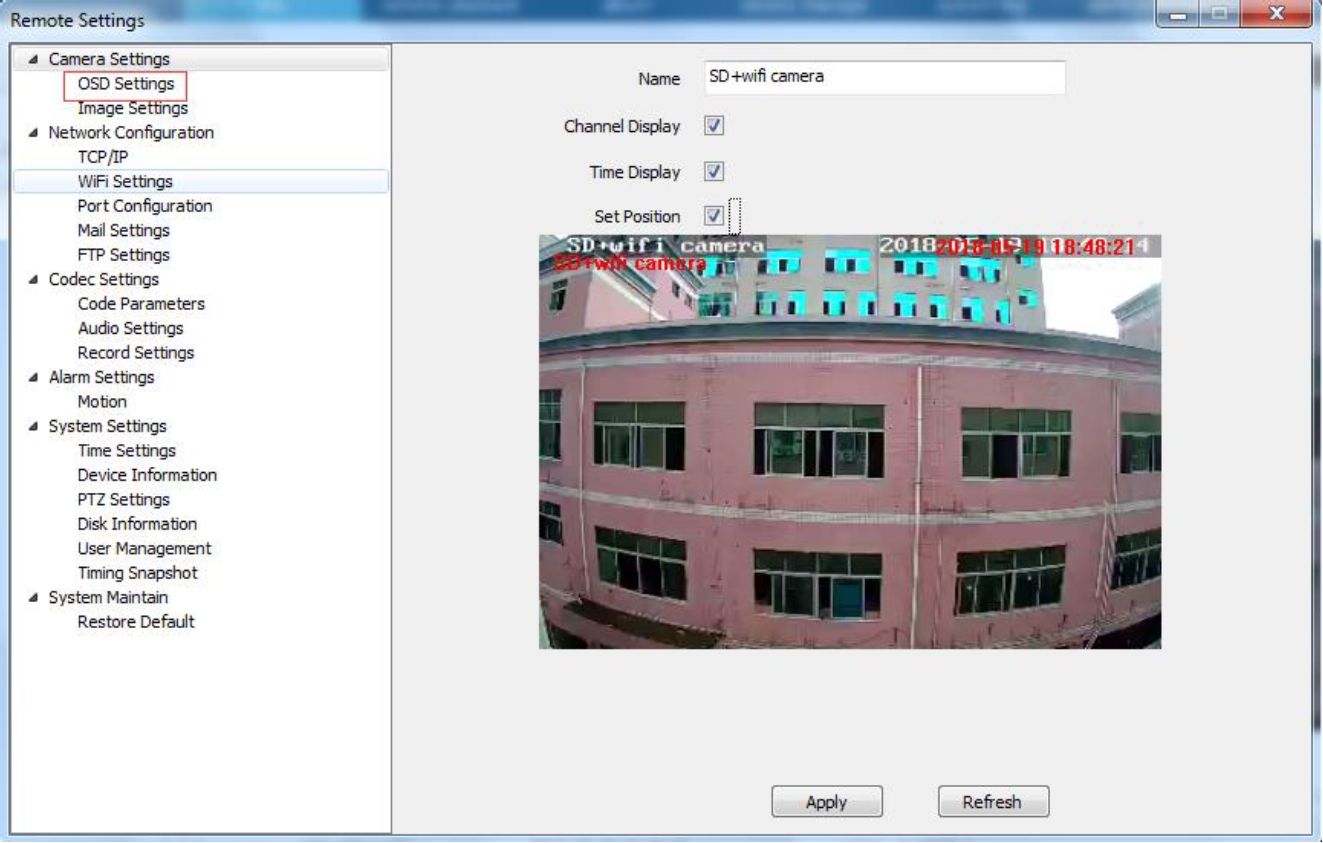

  1. Channel Name, edit the channel name and Channel Display, Time display, Set position

word image 2725 30

  1. Setting Image of camera video.

Smart Night: Normal Mode.

IR-CUT mode: auto (Passive mode), Day/Night, Auto (Active mode)

IR-CUT Sensitivity: 0-50(The higher the number, the higher the sensitivity.)

Image Mirror: close, Flip horizontal ,Flip Vertical, Flip Center

word image 2725 31

2, Network configuration

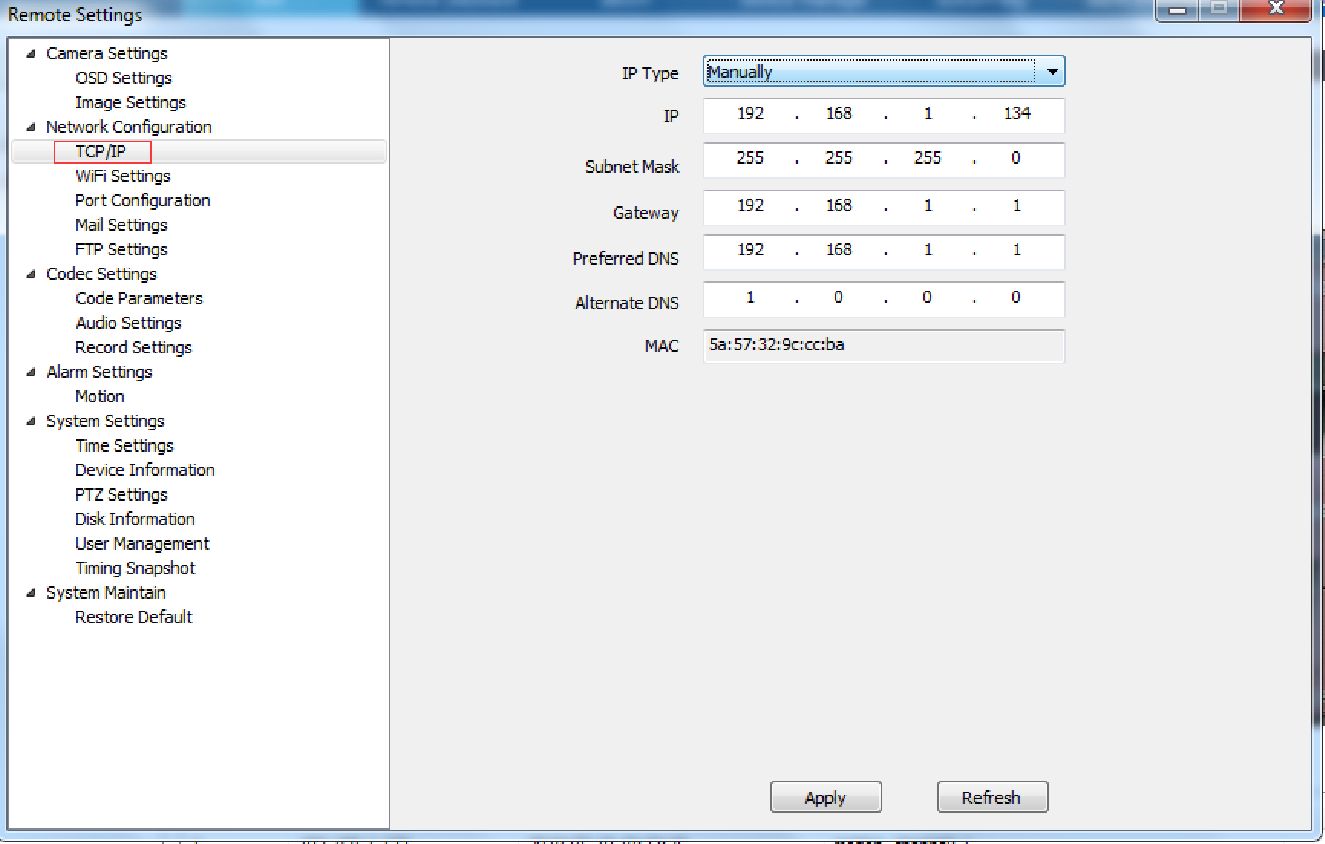

  1. TCP/IP Settings: You can choose the IP address type, manually and DHCP mode, and Modify the IP address parameters.

word image 2725 32

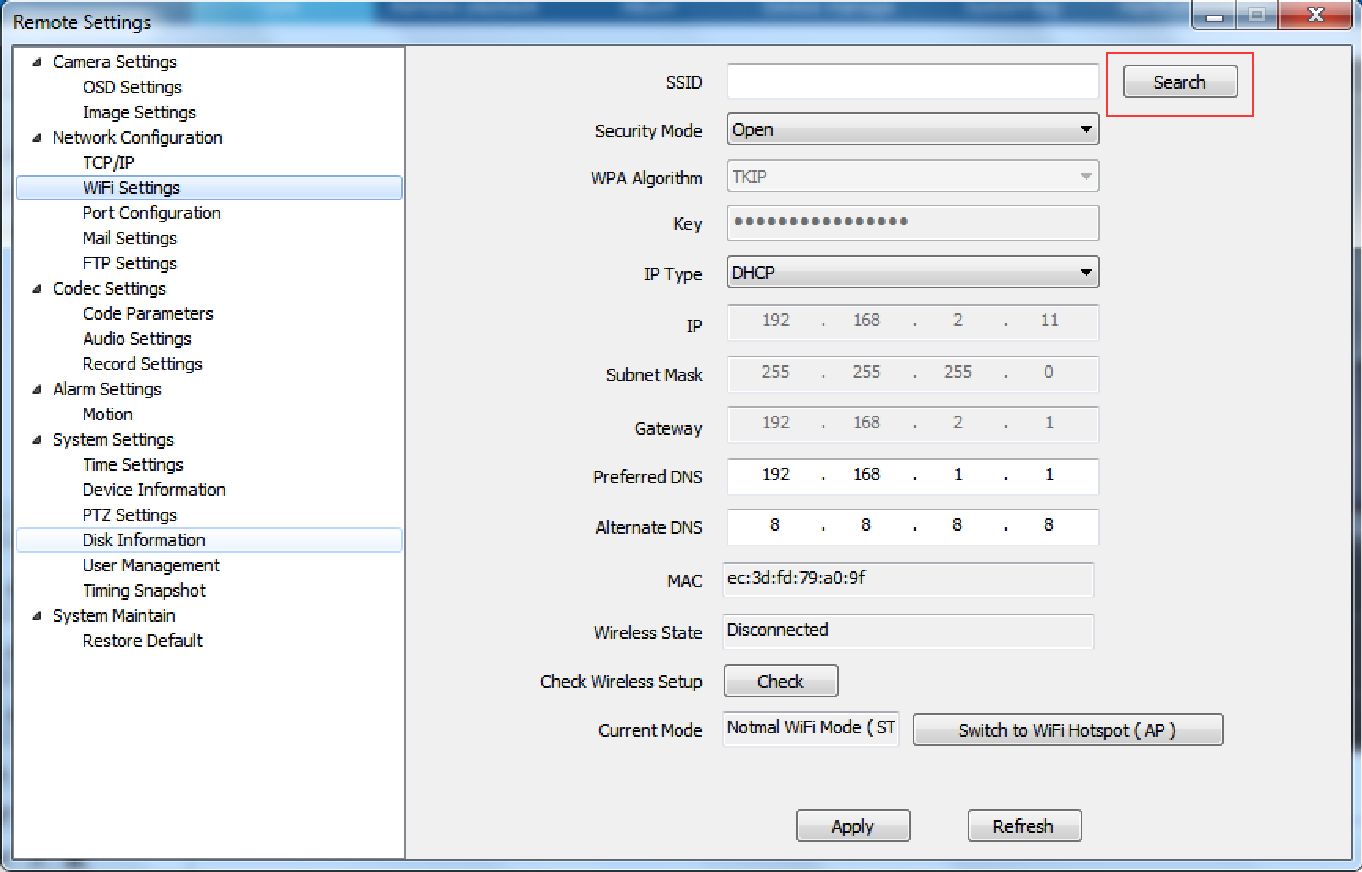

  1. WIFI settings: If you use the camera for the first time, and your camera connect to your router through Ethernet cable, please Click “Search” for add your WIFI setting

word image 2725 33

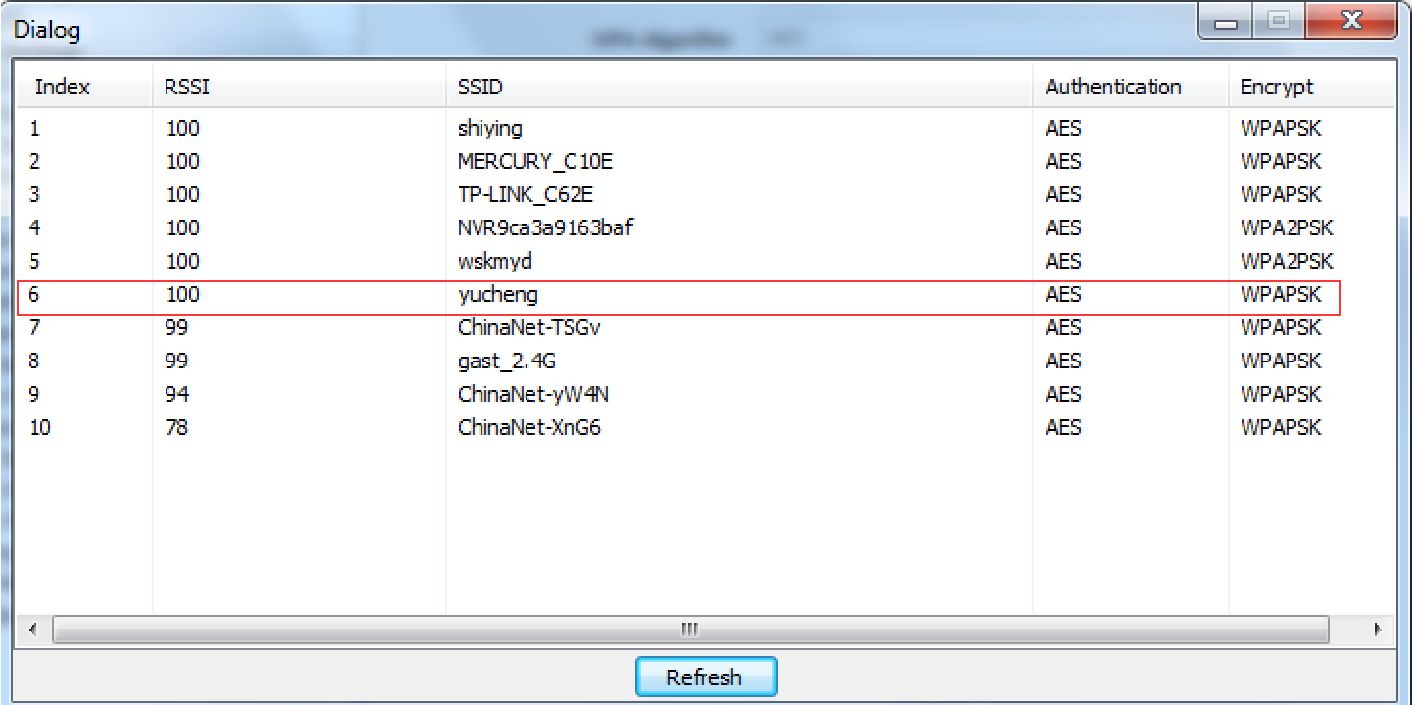

Choose your wireless router WIFI SSID

word image 2725 34

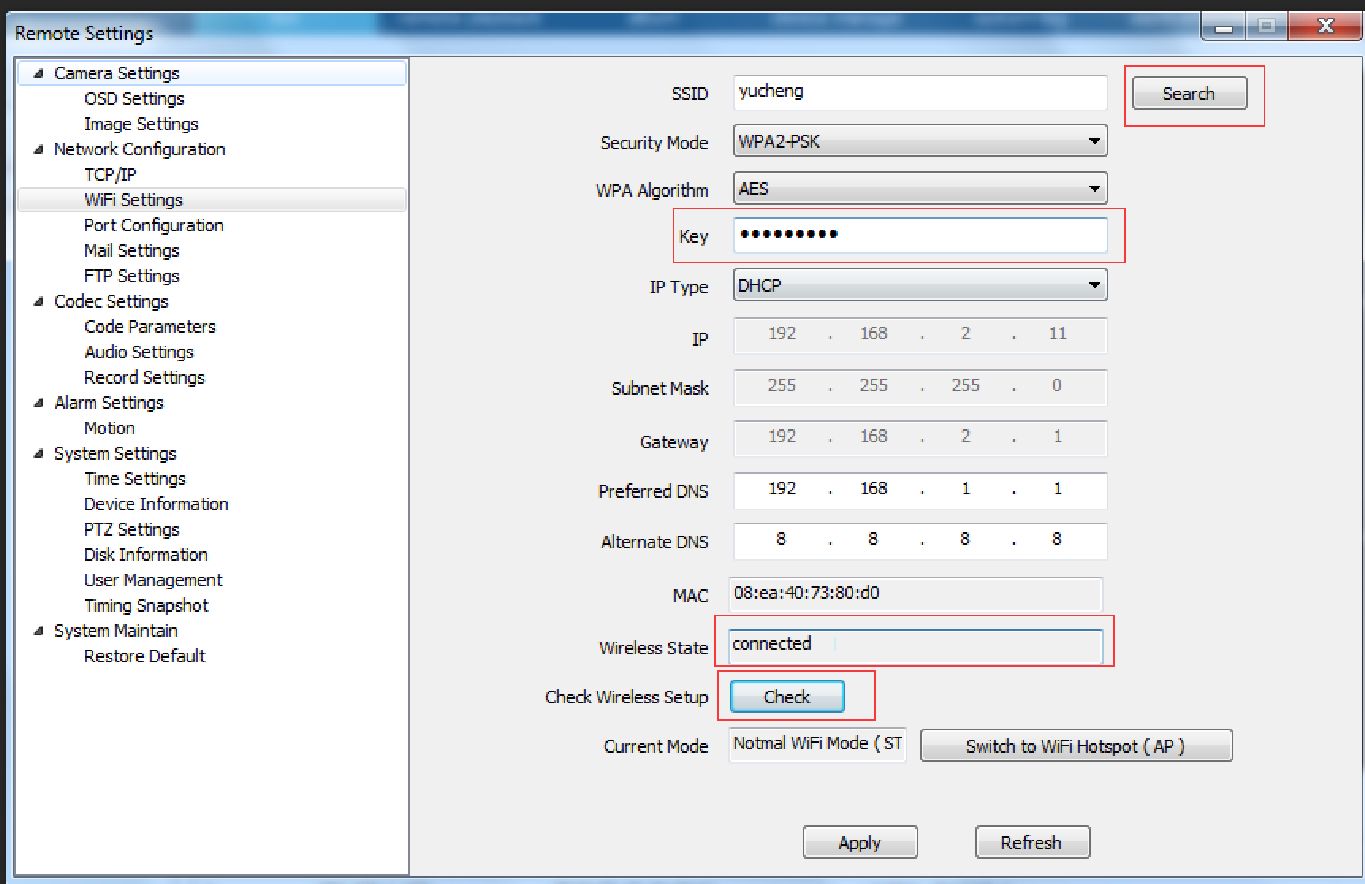

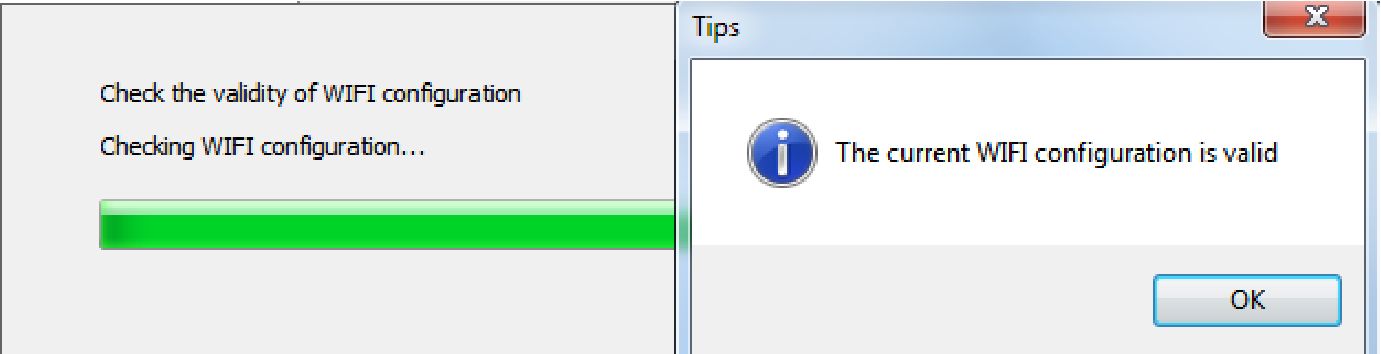

Input KEY and Check, system will auto check the Wi-Fi details, if successful, please click the app, connect to WIFI.

word image 2725 35

word image 2725 36

Setting WIFI successful, Now you can disconnect wired Ethernet cable. And click “apply”

word image 2725 37

Then Research your camera, at which point you search and add a camera for WIFI connections Port Configuration:

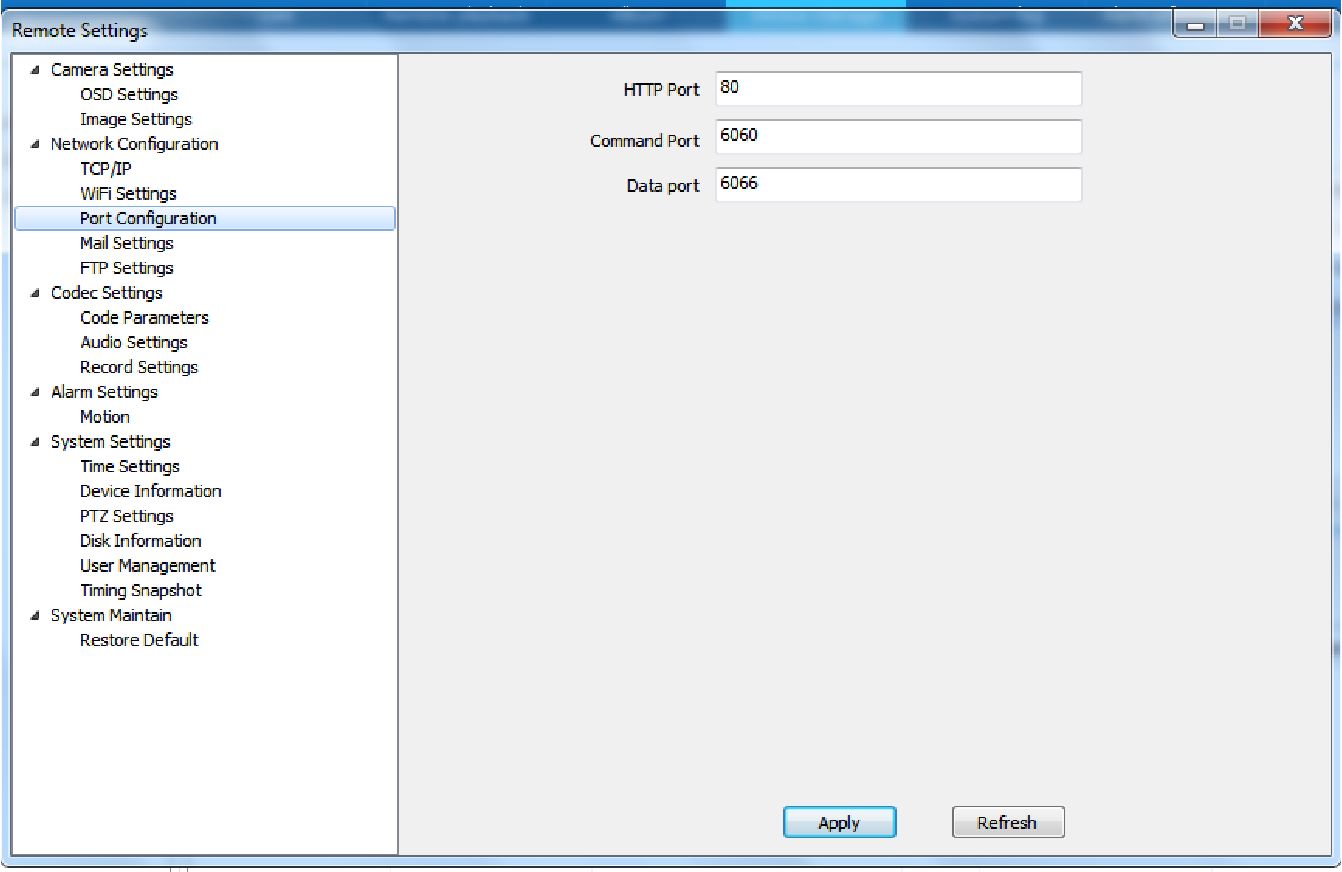

  1. Port Setting, HTTP/ After the signaling/data port is modified in the corresponding access software, it is necessary to manually add the modified port number, otherwise it cannot be accessed effectively (non-professionals do not recommend modifying it to avoid adding devices)

word image 2725 38

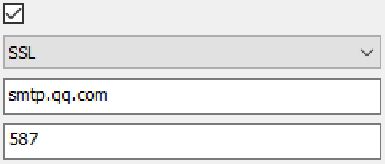

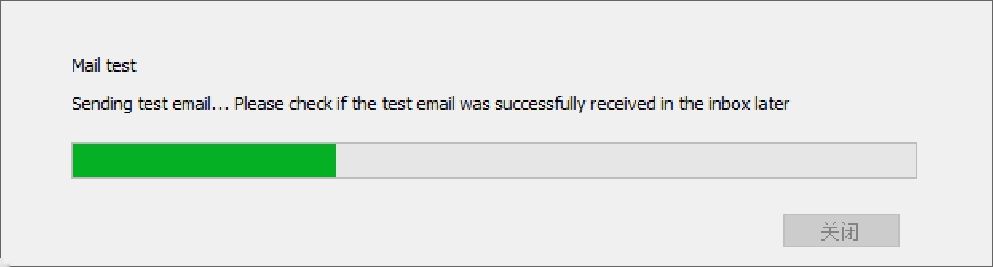

  1. Email Setting: Enable and configure.

Remote Settings

v Camera Settings
OSD Settings
Image Settings

v Network Configuration
WiFi Settings

Port Configuration^

Mail Settings A
FTP Settings

v Codec Settings
Code Paramet
Audio Settings
Record Settinç

v Alarm Settings

v System Settings
Time Settings
Device Inform.
PTZ Settings
Disk Informal»
User Managers

Sender Address

Mail Notification

Encryption Algorithm

SMTP Server


word image 2725 39


Sender Password

word image 2725 40

Attach Image 0

Timing Snapshot v System Maintain

Restore Default

Snap Interval 1 minute v | | Test

Apply Refresh

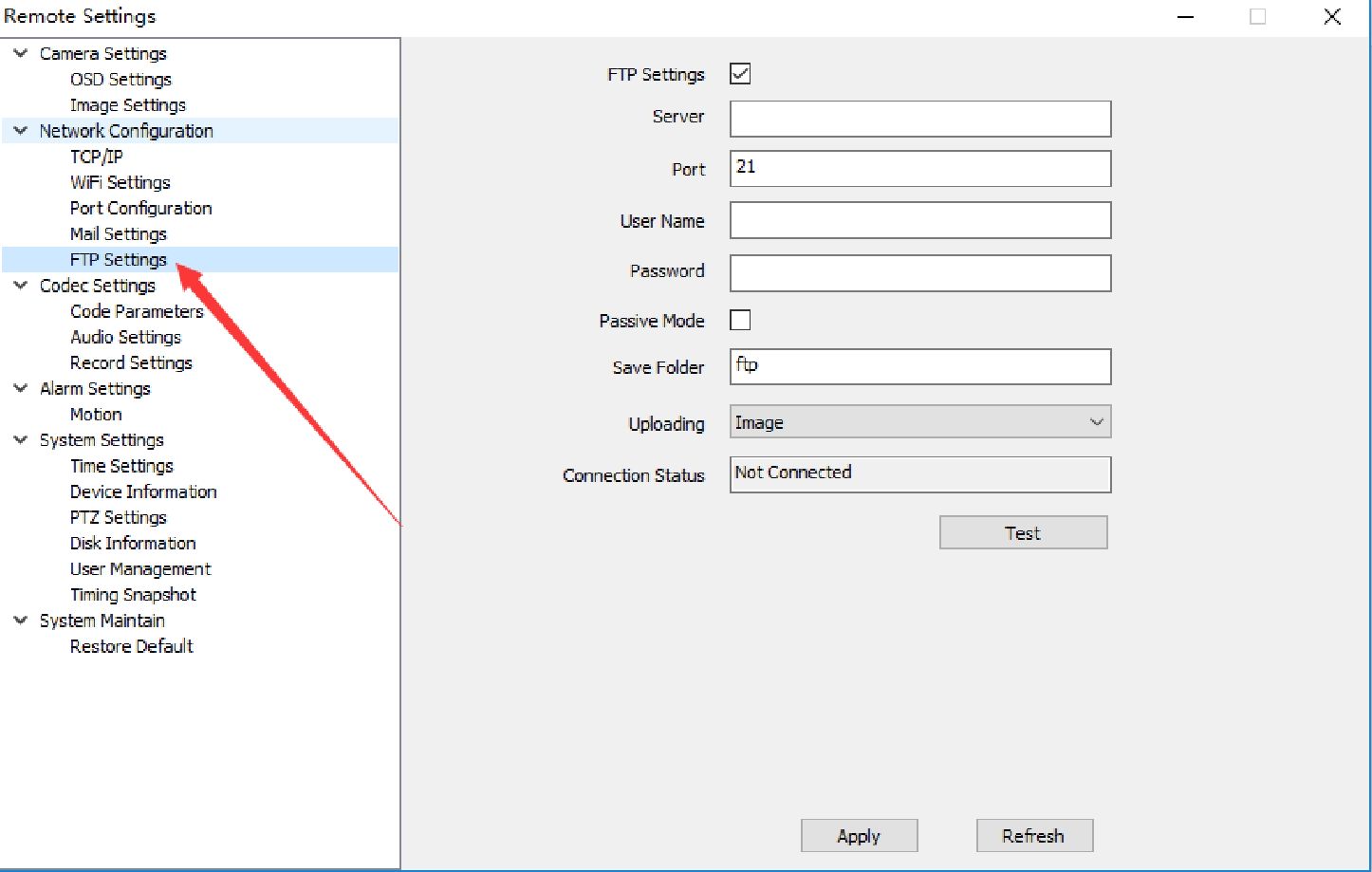

  1. FTP Setting:

word image 2725 41

  1. Encoding settings:

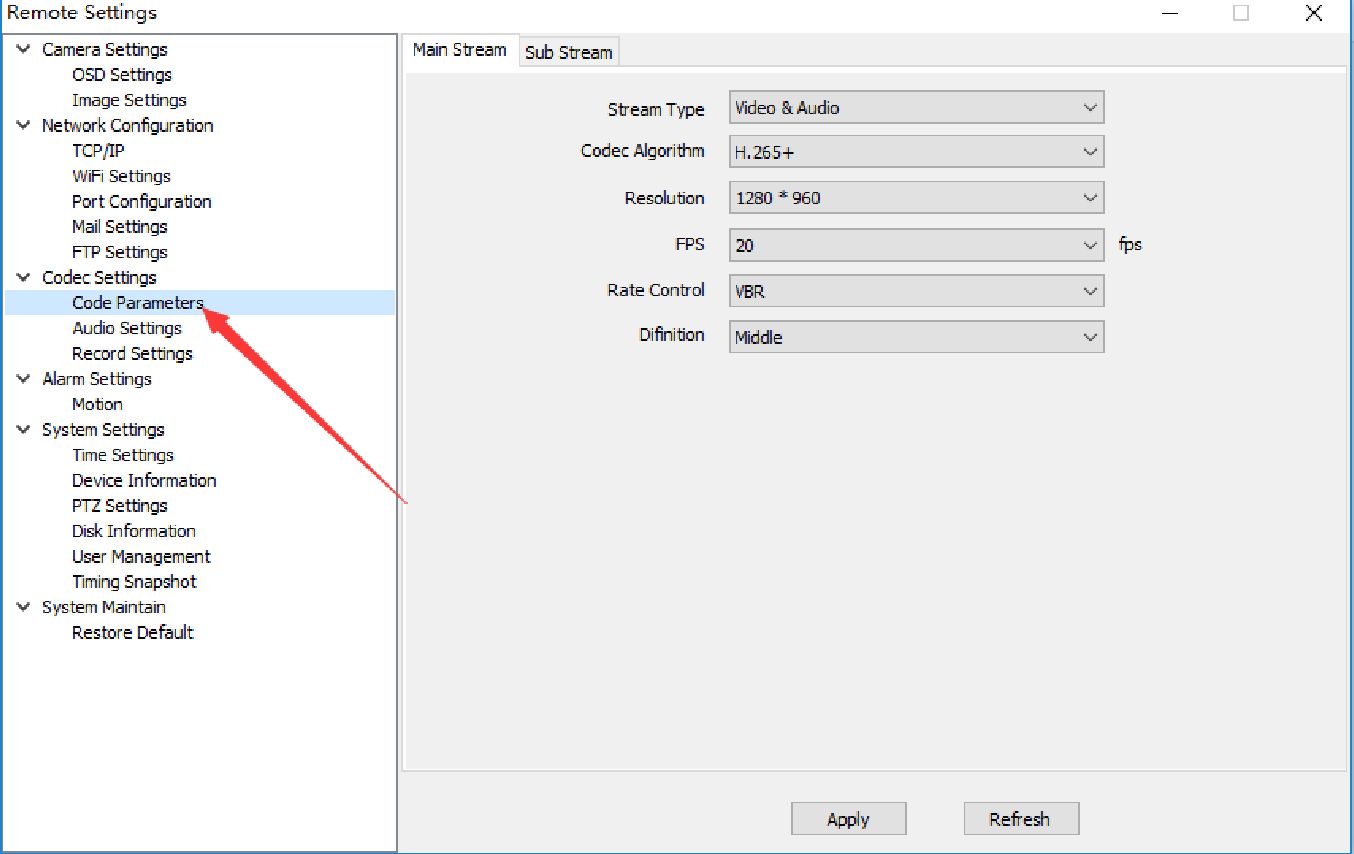

  2. Coding parameters: Modify the format of the video screen and the appropriate parameters, has reached the optimal effect

word image 2725 42

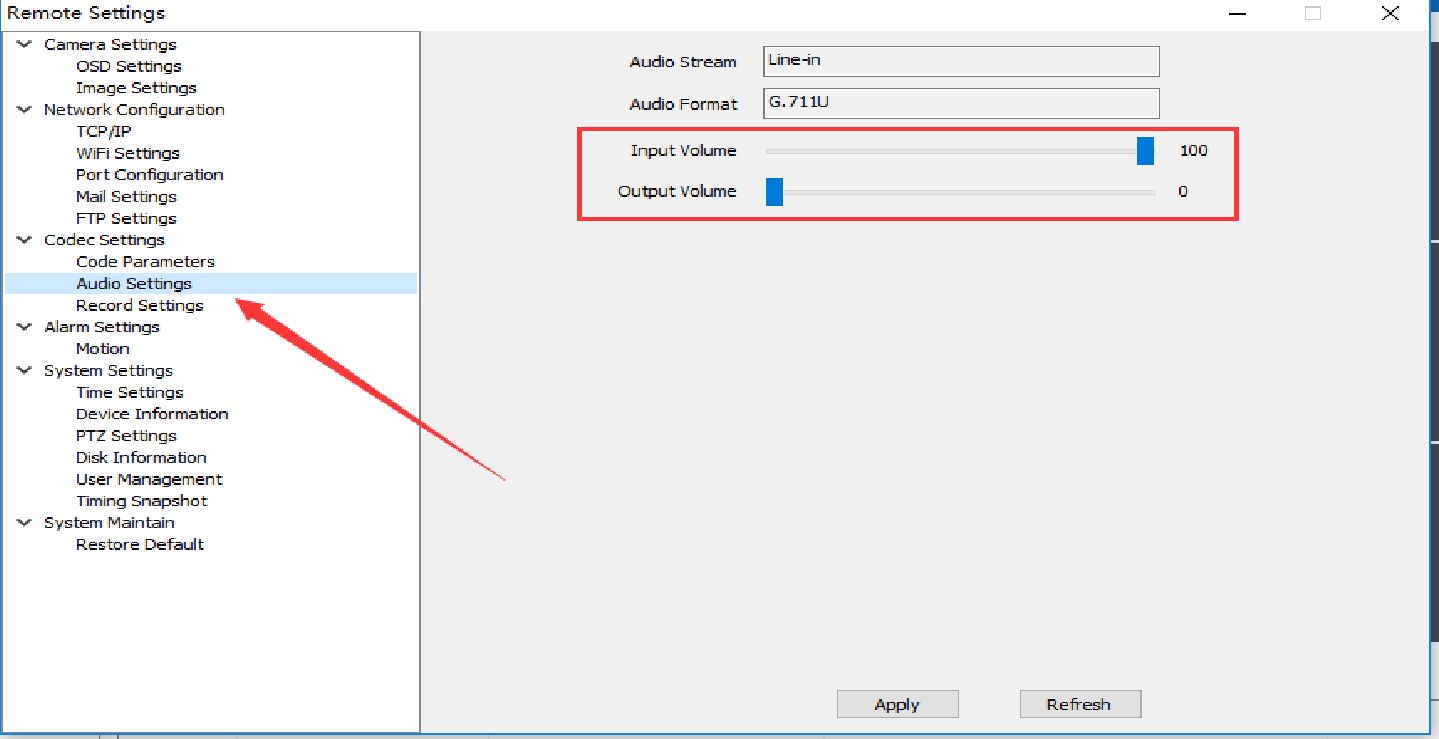

  1. Audio setting: The input volume refers to the size of the camera’s microphone recording. The greater the value, the louder the playback sound of the monitoring device; the output volume refers to the sound played by the camera speaker. The greater the value, the louder the camera will play.

word image 2725 43

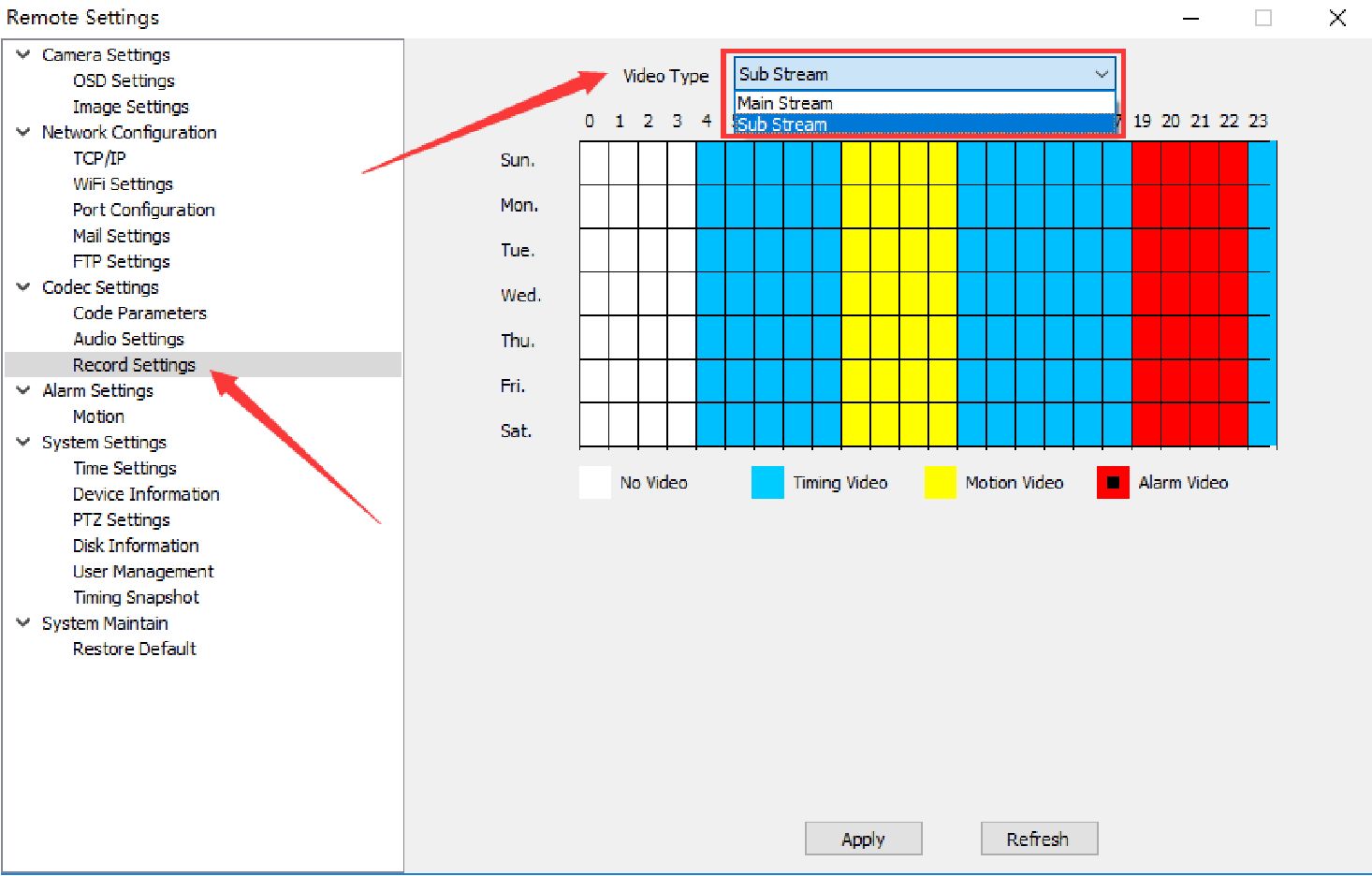

  1. Recording plan; 1. The main stream (HD) and sub-stream (clear) are optional for recording. HD recording is the highest

resolution recording of the device. At this time, the SD card’s recording file and the used memory capacity will become larger. Clear is the default option. 2. The recording mode will be different colors. The timing record is blue. It can be understood as the set time period recording (default is all day timer recording); the alarm recording is red, indicating that the R485 and switch alarms have detected the signal.

After the start of recording (this function is dependent on the product); moving recording is yellow, it means that when the object is detected to start recording, you need to enable motion detection in advance; disable the recording to be white, indicating that the current time is not recorded.

word image 2725 44

  1. Alarm Setting

A, motion detection; refers to open or close the motion detection, motion detection alarm trigger method (take a picture when the alarm, by email to the specified mailbox, you must first set up a good mailbox); trigger FTP ( Capture a picture during the alarm, send the picture to the FTP terminal via the FTP server; push the button (refer to whether to receive the camera alarm reminder, the home page subscription function needs to enable the linkage push); trigger capture (in the detected When the signal is moved, a picture will be snapped.

The captured picture can be viewed on the message function of the home page; triggering the recording (the video will be recorded in different colors after the movement signal is detected); selecting the area (referring to the selected area on the screen The mobile signal will alarm, the selected area is based on the green box.)

word image 2725 45

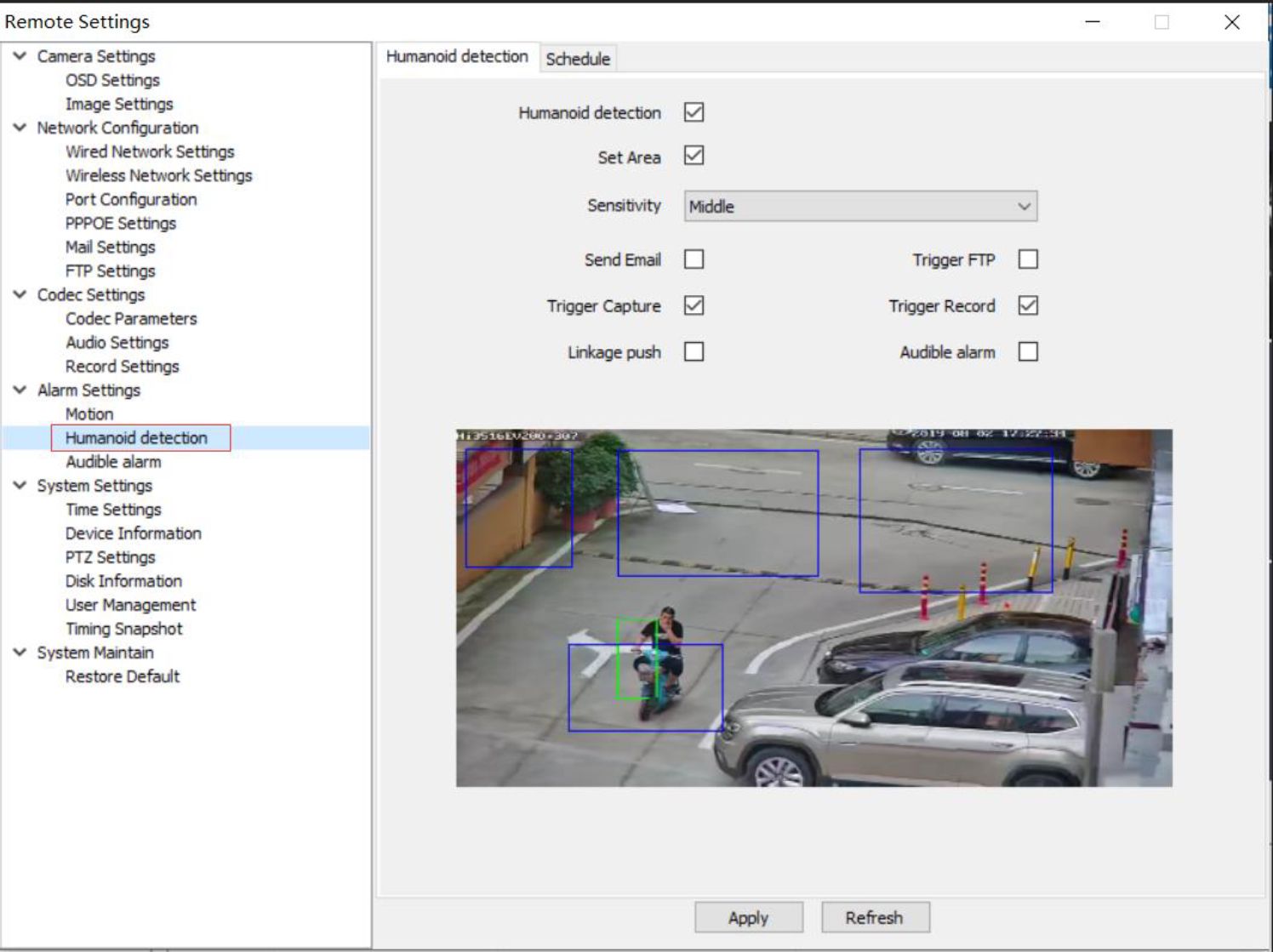

B, Humanoid detection:

The humanoid detection function is enabled, and the alarm is triggered only when the camera detects the human form. Solved the problem of high false detection rate of motion detection. Moreover, the humanoid detection area setting supports up to 4 areas. You can set the area as you like. When someone enters the humanoid detection area, the camera starts to trigger an alarm.

word image 2725 46

  1. Audible alarm:

When triggering motion detection or humanoid detection, the device supports alarm sound output. If your device supports speakers, the device will output an alarm sound to alert people entering the surveillance area.

Remote Settings

v Camera Settings

OSD Settings

Image Settings

v Network Configuration

Wired Network Settings Wireless Network Settings Port Configuration PPPOE Settings

Mail Settings

FTP Settings

v Codec Settings

Codec Parameters

Audio Settings

Record Settings

v Alarm Settings


Humanoid detection

| Audible alarm |

v System Settings

Time Settings

Device Information

PTZ Settings Disk Information

User Management

Timing Snapshot

v System Maintain

Restore Default

Audible alarm 0

Sound type Custom

Delay time 5 *1 second

Volume range I 5g

Custom sound only supports APP

Apply Refresh

5,System Setting

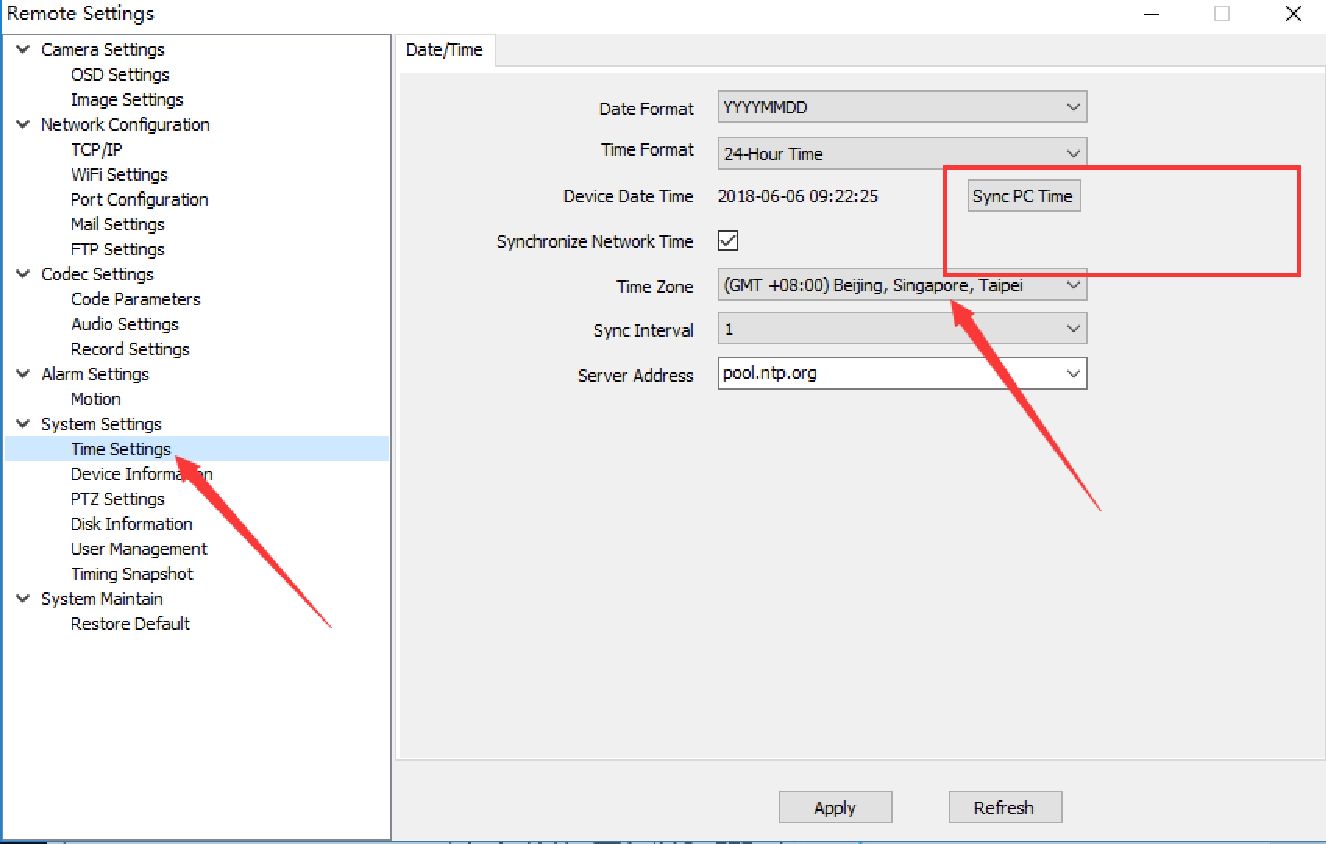

A,Time setting: According your local time setting the camera time.

word image 2725 47

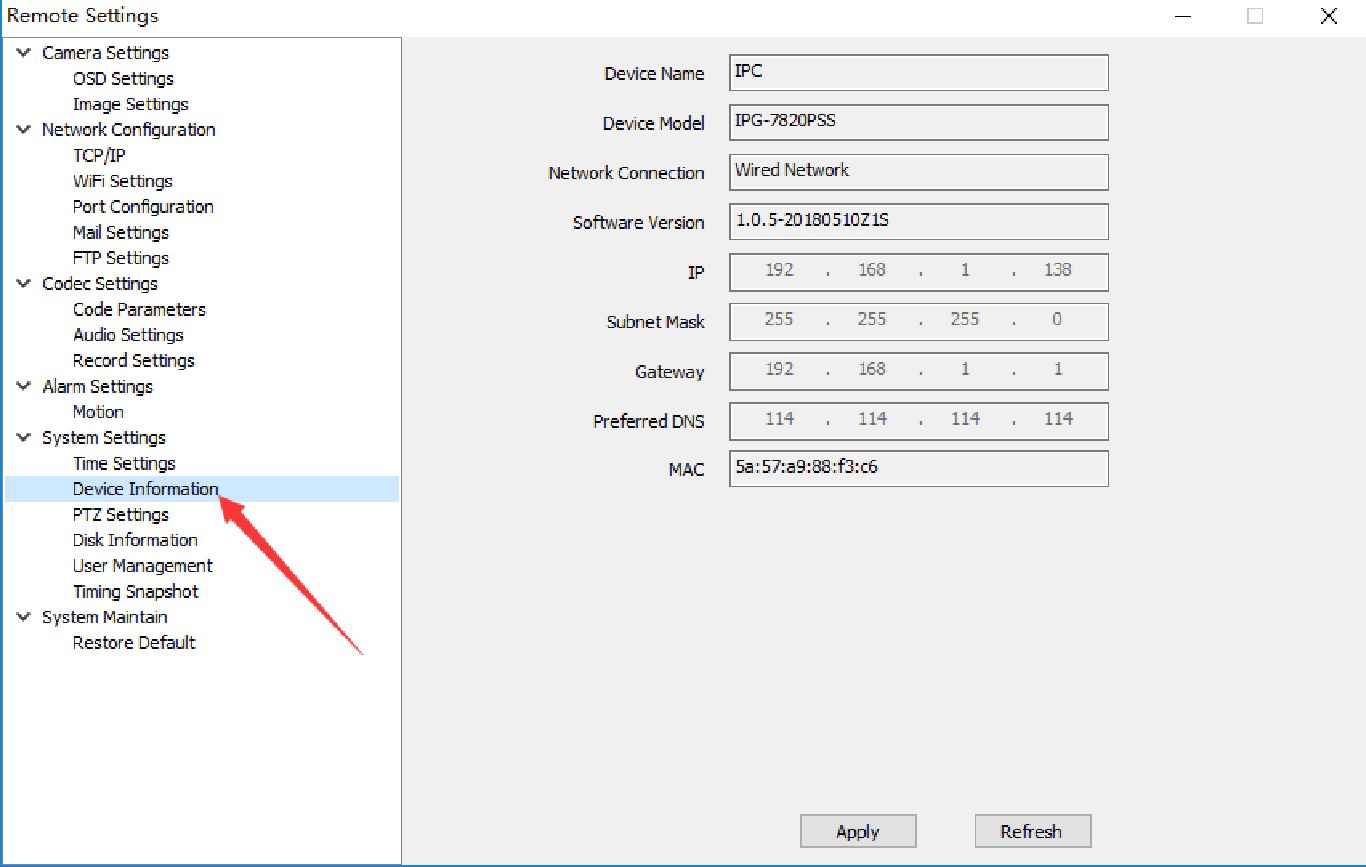

B,Device information: display the device model no., network connect type, software version and IP address.

word image 2725 48

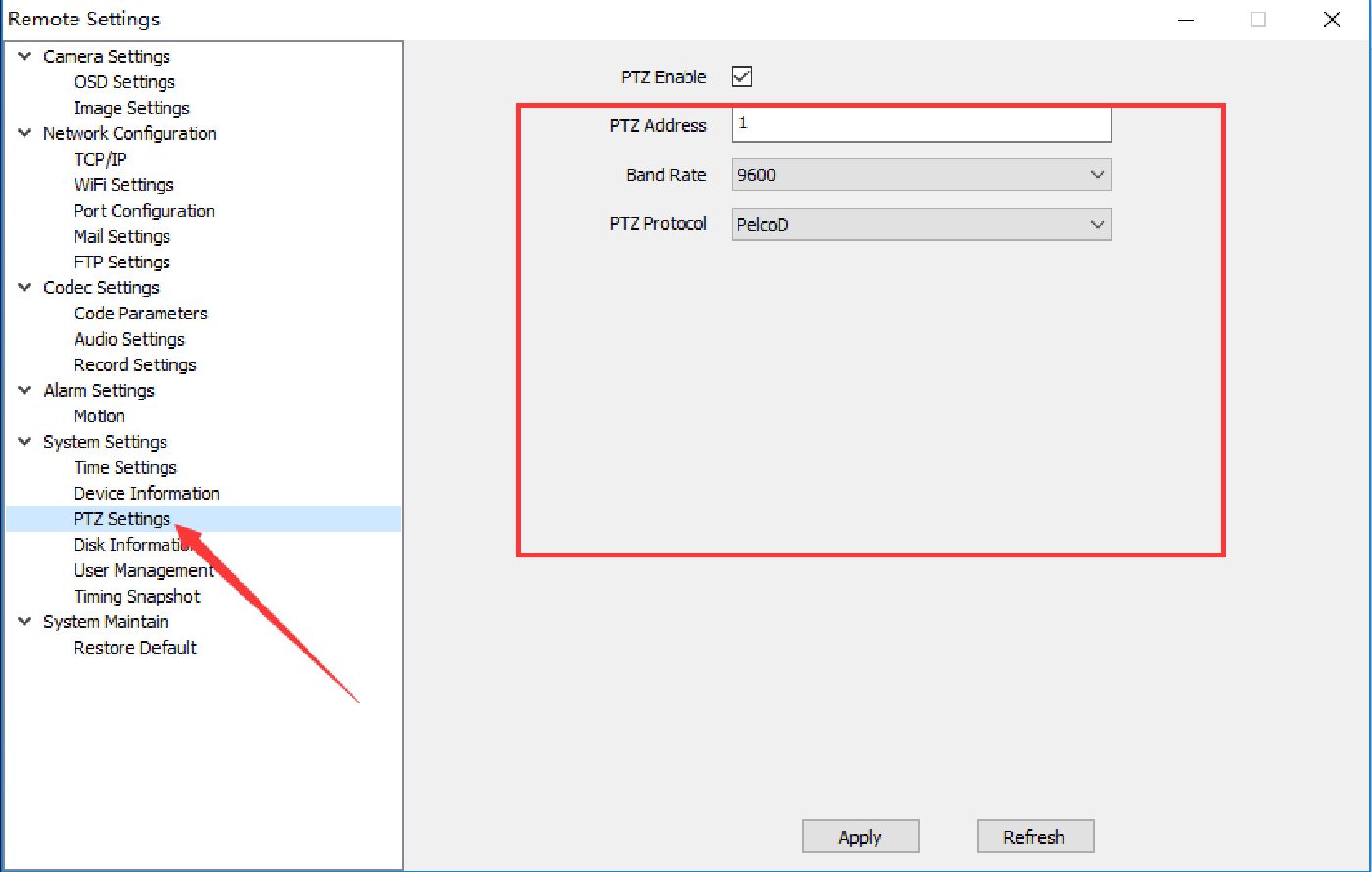

C,PTZ Setting: PTZ control setting ( camera up and down, left and right)

word image 2725 49

D,SD card information: display SD card memory, write status and snapshot, recording for memory size.

word image 2725 50

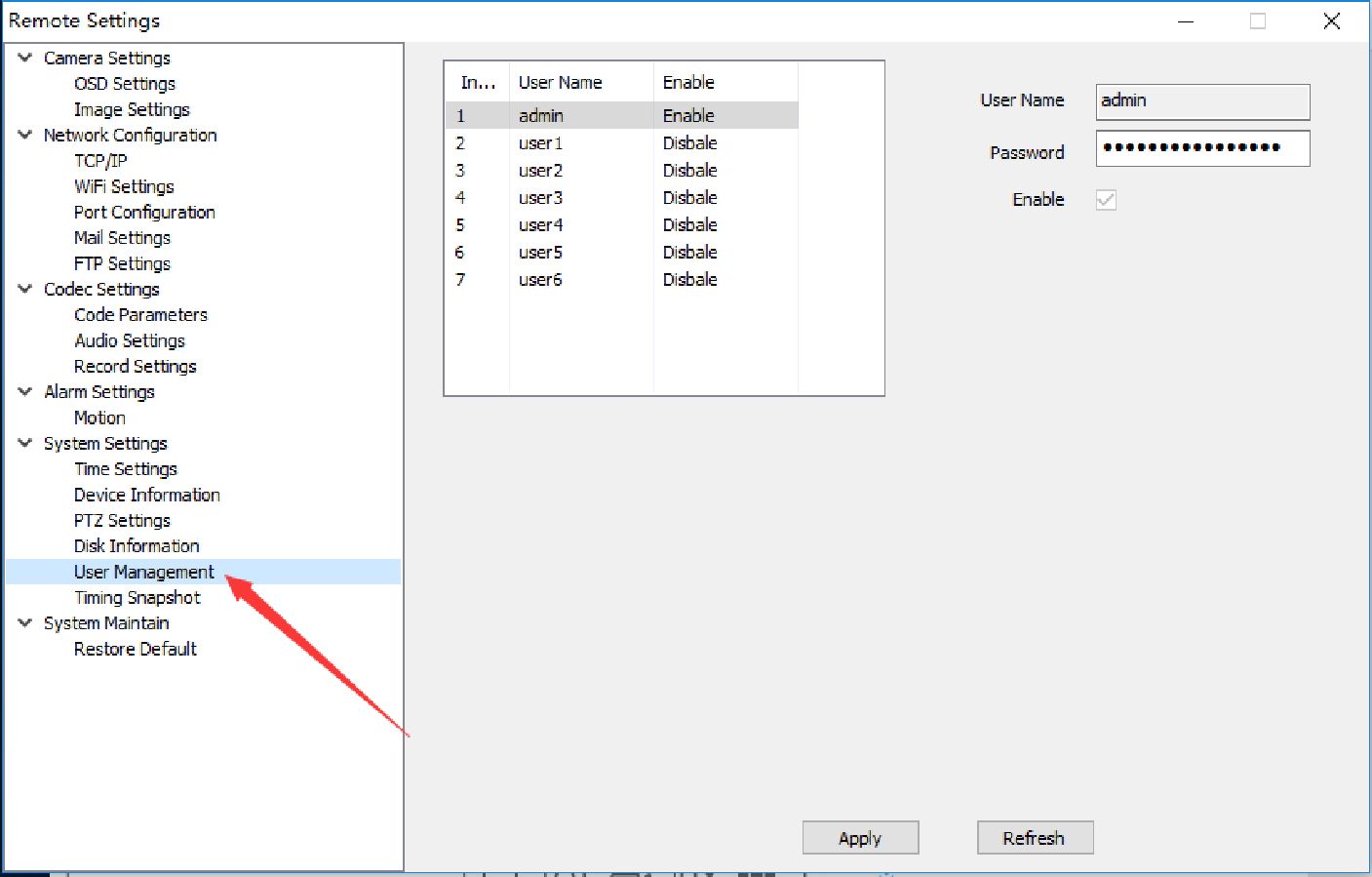

E,User Management: Setting user authority

word image 2725 51

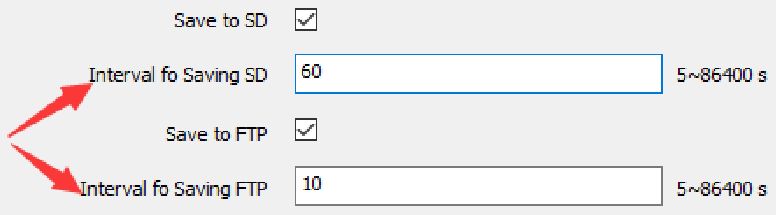

  1. Timing Snapshot: Setting where save the snapshot picture ( now only support SD card and APP)

Remote Settings

v Camera Settings
OSD Settings
Image Settings

v Network Configuration
WiFi Settings
Port Configuration
Mail Settings
FTP Settings

v Codec Settings
Code Parameters
Audio Settings
Record Settings

  • Alarm Settings


  • System Settings

Time Settings
Device Information
PTZ Settings
Disk Information
User Management

Timing Snapshot

System Maintain

Restore Default

word image 2725 52

word image 2725 53

word image 2725 54


6,System Maintenance

A. Restore the default; restore the default (all camera settings restored to the factory state, but will not delete the user data); restore the factory (camera fully initialized, including settings and user data will be deleted)


Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.
