Setup Remote Access All Dahua Devices

0 133

Setup Remote Access via P2P using SmartPSS

Description

This allows you to view on SmartPSS using P2P.

Prerequisites

  • SmartPSS
    SmartPSS Download
    How to Install SmartPSS
  • SN Number of device located on bottom of device recorder. Can also be located from the local menu of under menu -> system info or from Dahua Web service under Setup -> Network -> P2P
  • P2P must be enabled from the main menu of under Settings -> Network -> P2P or from Dahua Web Service under Setup -> Network -> P2P.

Video Instructions

Step by Step Instructions

1. Locate the serial number of your NVR or DVR. The serial number can be found at the following locations:

  • On the underside or side of the unit


  • In the web interface, under Info->Version


  • On the system interface under Main Menu->Settings->Network->P2P


  • On the system interface under Main Menu->Info->System->Version

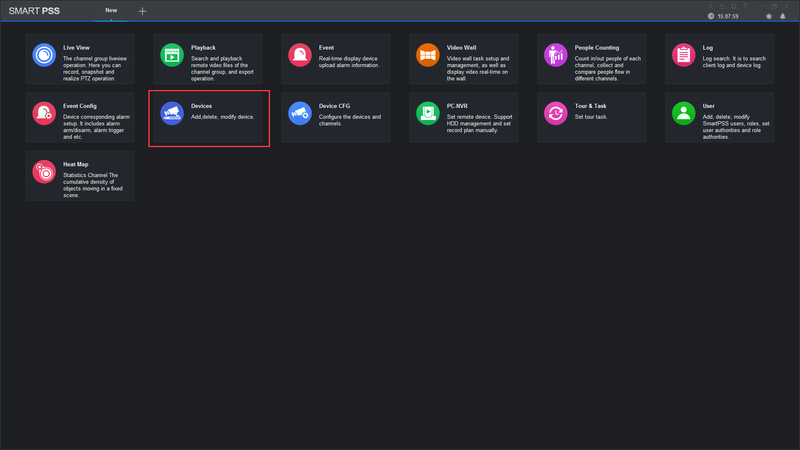

2. Launch SmartPSS and select Device.


3. Click Add, change method to P2P.


4. Enter credentials, save and then add.


How to Access System Using P2P via Mobile Application

Description

View your recorder and on the go. With Dahua’s mobile application (IOS)/GDMSS(Android) allows you to add Dahua recorders and cameras to the mobile app using P2P.

Prerequisites

  • Smartphone (IOS device or Android)
  • /GDMSS already downloaded in your mobile device.
  • P2P must be turned on from and connected to a network with internet access.


Video Instructions IDMSS/GDMSS version 4.50.000

Step by Step Instructions iDMSS/gDMSS version 4.50.000

1. Open iDMSS/gDMSS on the phone, and select the home icon located on the top left corner.
1. Using P2P via iDMSS or gDMSS.JPG

2. Select the “Device” button/icon on the bottom to add /camera.
2. Using P2P via iDMSS or gDMSS.JPG

3. Select the “+” sign then select “Scan” to add the device.
3. Using P2P via iDMSS or gDMSS.JPG

4. Select the “Wired Camera”.
4. Using P2P via iDMSS or gDMSS.JPG

5. Input the device for easy identification. It’s required to input the password for the added device then select the save icon located on the top right corner.
5. Using P2P via iDMSS or gDMSS.JPG

Step by Step Instructions IDMSS/GDMSS version 4.20.000

1. Select the Menu Icon

GDMSS PLUS 4.20-1.jpg

2. Select “Device Manager”

GDMSS PLUS 4.20-2.jpg

3. Select the Add Icon

GDMSS PLUS 4.20-3.jpg

4. Select “Camera”

GDMSS PLUS 4.20-4.jpg

5. Select “Wired Device”

GDMSS PLUS 4.20-5.jpg

6. Select “P2P”

GDMSS PLUS 4.20-6.jpg

7. Input Info and select “Start Live Preview”

GDMSS PLUS 4.20-7.jpg

  • Name: (nickname)
  • SN (serial number, you can either scan the QRcode or type the SN manually)
  • Port (will auto populate after entering the SN)
  • Username (Username of the recorder’s account)
  • Password (Password for that Username)
  • Live Preview (Extra=Substream, MAIN= Mainstream)
  • Playback (Extra=Substream, MAIN= Mainstream)

Video Instructions IDMSS/GDMSS version 3.50.000

Step by Step Instructions IDMSS/GDMSS version 3.50.000

1. From the home screen of the mobile application select “Camera”.


2. Select the menu button.


3. Select Device Manager.


4. Select add button to add device.


5. Select Wired Device.


6. Select P2P.


7. Name your device -> tap the QR code to bring up QR code scanner.

Newidmss7.png Newidmss8.png

  • With your mobile device in hand, go to your local recorder, navigate to the P2P/Easy4IP settings and scan QR code to the right hand side. You will also see the SN (Serial Number) of underneath the QR code, you may use that to manually type in the SN into the SN field of the IDMSS/GDMSS mobile app. Note: you must have P2P/Easy4IP “enabled” from the local recorder with a status that either shows “online” or “connect success”.


8. Input the username -> password -> and select live preview. By selecting “Start live preview” device will be automatically saved into the application.


IDMSS/GDMSS Version 3.40.003

Video Instructions Version 3.40.003

Step by Step Instructions Version 3.40.003

1. Click, “Camera”

20151019 224945000 iOS.png

2. Select the Menu Icon


3. Select “Device Manager”


4. Select the Add Icon


5. Select “P2P”


6. Choose a name for the device → Scan in QR code for SN number which you can access from the physical recorder under the main menu → Setting → Network → P2P. You may input SN number manually which can also be found under the recorder. → Enter Username and Password. For best results , leave Live Preview and Playback on the Extra Stream.


7. Select the Disk Icon to save → Select Live Preview, At which time the app will connect to all cameras.


New GUI – P2P Setup

Description

This article will go over initializing P2P on our New GUI devices

Prerequisites

Step by Step Instructions

1. Under “Management” go to Network>TCP/IP


2. You can either set the device on a static ip or turn DHCP on to automatically grab an IP from the network. Save any changes


3. Locate P2P tab on the lower left and enable P2P


4. After saving it you should see the the status change to “Online”, You can now use this device for remote viewing on our software


  • If you run into any issues getting the P2P to show online, reboot the device and try again. If that still doesn’t work you may have a firewall on the network that is blocking the connection to the P2P servers

Software and Instructions

Check the links below to see how to add the device to our software or mobile App

Apps DMSS App SmartPSS DSS Express
Link to Instruction How to add Dahua device to DMSS App How to add Dahua device to SmartPSS How to add Dahua device to DSS Express



Create port forwarding rule in the router

Description

Port forwarding is a function of network routers that allows a user to configure specific communication ports to be routed to devices on an IP (Internet Protocol) network, such as a computer, DVR, or IP camera.In this case for CCTV equipment, it allows the user to view and control CCTV equipment remotely. Follow the step by step instructions and the instructions your manufacturers hardware to setup port forwarding, or try PortForward.com to search for your routers settings.


Prerequisites

  • Network Video Recorder
  • Connection to the internet
  • Access to the router(s) and/or modem
  • A computer that can access the network

Video Instructions

Step by Step Instructions

1. Connect NVR to network with a CAT5 cable.

2. Download and install ConfigTool from DahuaSecurity.com, under Support->Download Center->Software

3. Run the ConfigTool.

4. The ConfigTool should display your IP Camera. Click the, “ConfigToolIPCEIcon.jpg” icon to open Internet Explorer and access your NVR.


5. Configure Internet Explorer security settings to allow the plugs to work. Link to Internet Explorer Setup

6. Login with the default credentials: User Name: admin Passsword: admin

7. Under, Main Menu -> Setup -> TCP/IP Change the IP Camera to, “Static” if the camera is currently set to, “DHCP”

8. Open another tab and enter the, “Gateway” address listed under your NVR’s Network settings. Example: 192.168.1.1, 192.168.0.1, 10.0.10.1

9. Login to your gateway and locate the, “Port Forwarding” section.

10. Create port forwarding rules for each port you wish to forward for the NVR. (Usually you will only need to forward the HTTP and the TCP port.) Default Ports: TCP: 37777 UDP: 37778 HTTP: 80 RTSP: 554 HTTPS: 443

11. The end result should look like the below image. We used a Cisco router for this example.


12. Hit, “Save” in the gateway interface, and open another tab.

13. Go to, “www.canyouseeme.org” and check that the ports you opened on the gateway.

PortsCheck80.jpg PortsCheck37777.jpg
